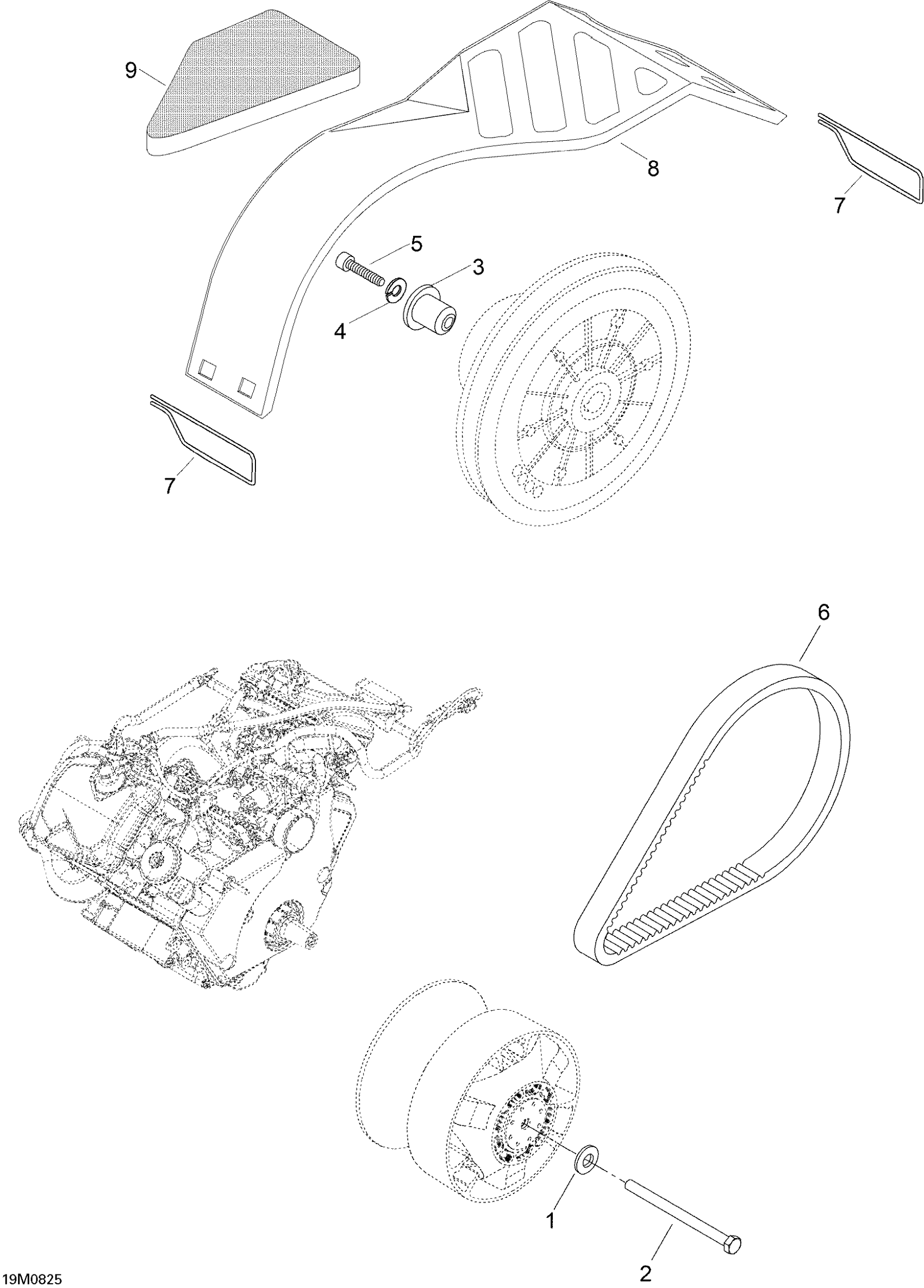

Ski-Doo Expedition TUV V800, 2008 05- Pulley System Diagram

#

Description

Price

1

Conical Spring Washer

M20110

Unavailable

2

Drive Pulley Bolt

417300285

$43.49

3

Sleeve This part replaces M5443201.

5443201

$47.99

4

Lock Washer 8 mm

234181401

$0.92

5

Socket Head Screw M8 X 45

M40286

Unavailable

6

Drive Belt

605348425

$154.99

7

Pin This part replaces M5442726.

5442726

$7.51

8

BELT GUARD - Call your local BRP dealership

605149860

Unavailable

9

ISOLANT FOAM - Call your local BRP dealership

605250741

Unavailable
