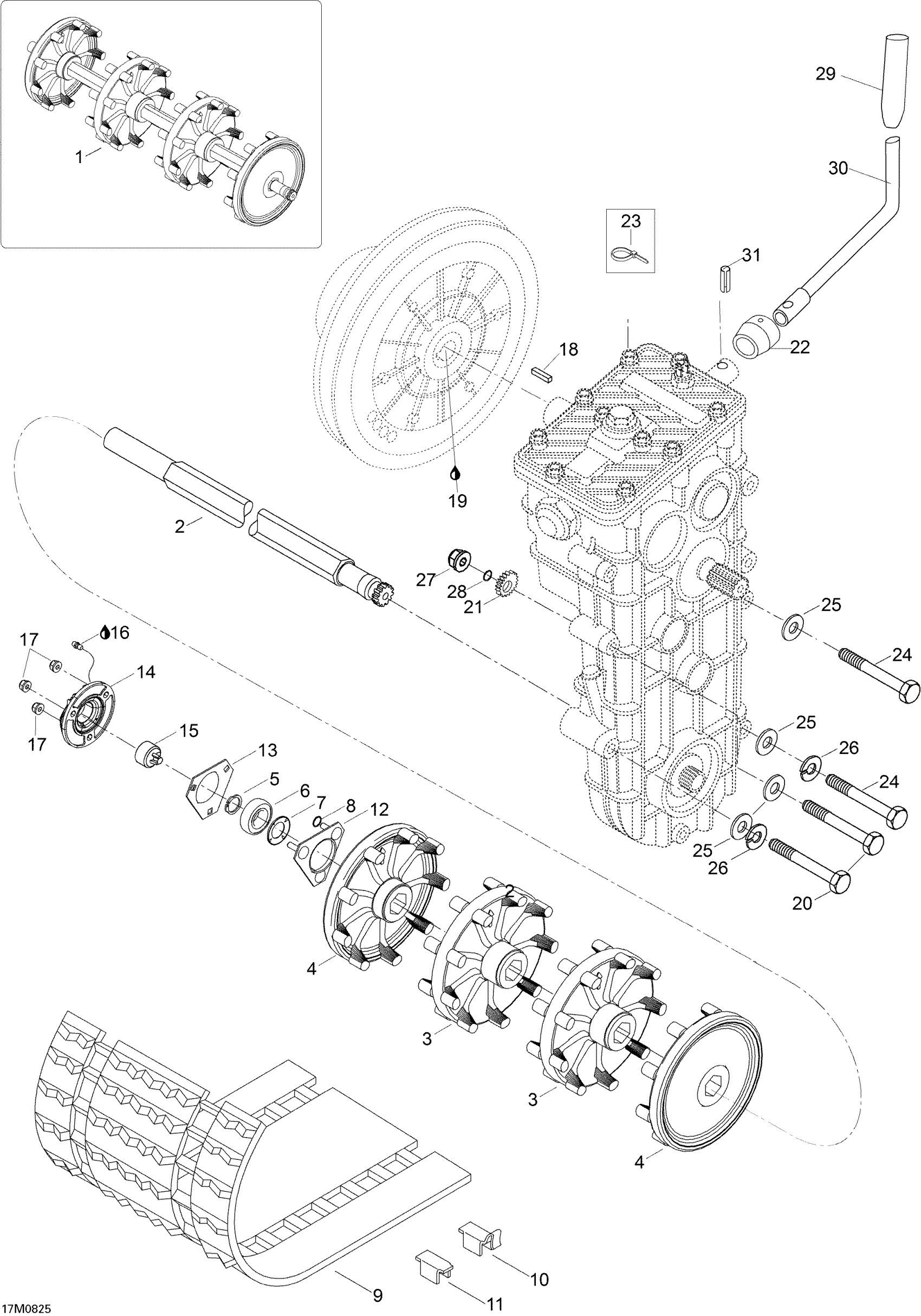

Ski-Doo Expedition TUV V800, 2008 05- Drive System Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

DRIVE AXLE - Call your local BRP dealership

605253104

Unavailable

3

SPROCKET - Call your local BRP dealership

414931800

Unavailable

4

HALF SPROCKET - Call your local BRP dealership

415067400

Unavailable

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

O-Ring

414484400

$7.51

9

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1.00

10

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

11

CLEAT - Call your local BRP dealership

M5318322

Unavailable

12

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Flange, Speedo

504152173

$76.49

15

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

16

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

KEY - Call your local BRP dealership This part replaces M418763.

619690074

Unavailable

19

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

20

Screw

M40089

Unavailable

21

TOOLS - Call your local BRP dealership

605454017

Unavailable

22

SLEEVE - Call your local BRP dealership

M5446699

Unavailable

23

Tie-Rap 180 mm

414115200

$0.11

24

Screw M8 X 80

M40012

Unavailable

25

Flat Washer 8 mm

234082410

$1.47

26

Lock Washer 8 mm

234181401

$0.92

27

Hex. Flange Elastic Nut M8

233281414

$1.47

28

O-RING - Call your local BRP dealership

506151140

Unavailable

29

Shift button This part replaces M28247.

28247

$30.49

30

SHIFT HANDLE - Call your local BRP dealership

605350153

Unavailable

31

PIN SPRING - Call your local BRP dealership

M41007

Unavailable
