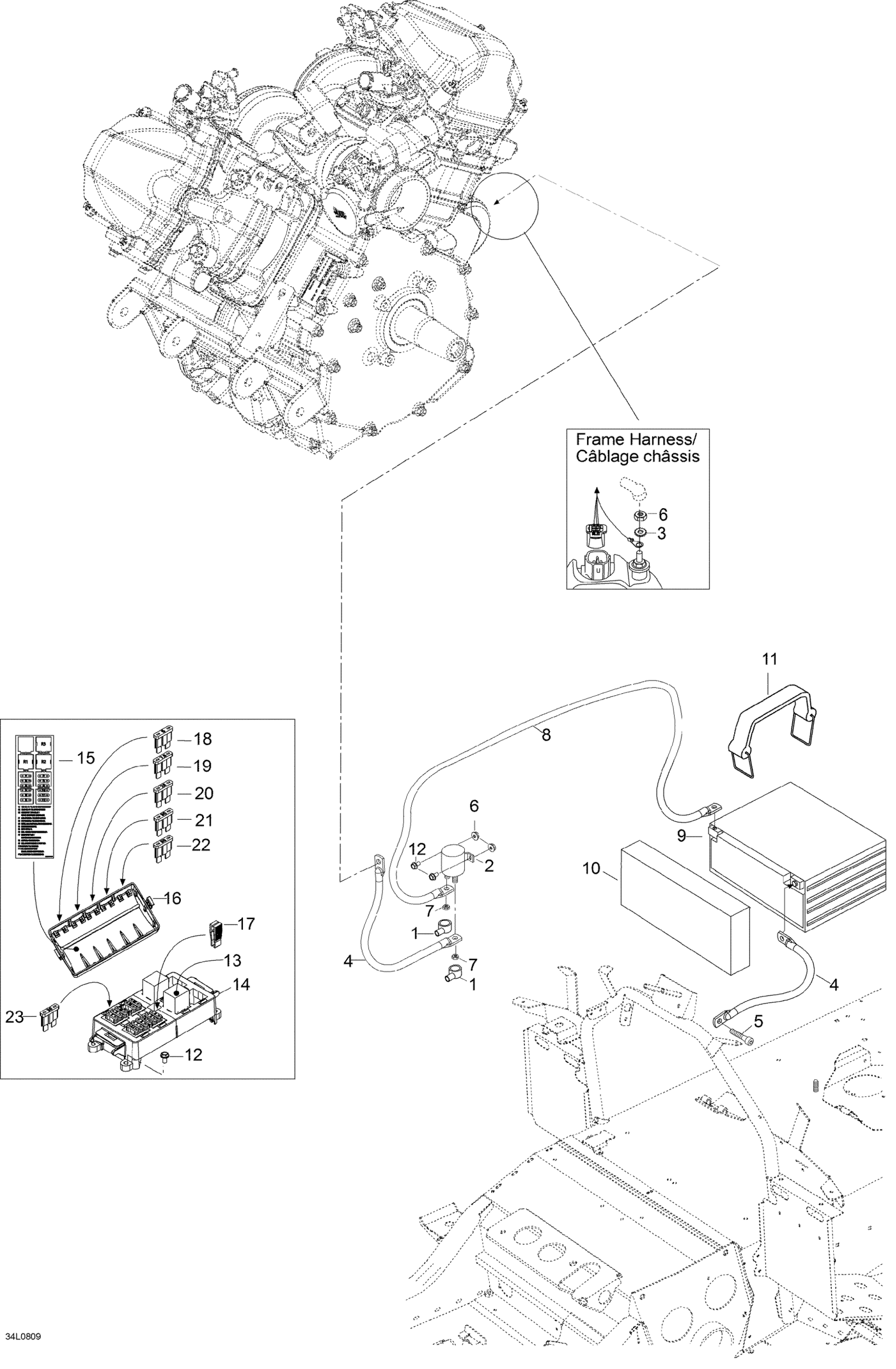

Ski-Doo Expedition TUV V800, 2008 04- Electric Starter Diagram

#

Description
Price

1

Protection Cap

570151000

$21.99

2

Starter Relay

515176011

$62.49

3

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

4

GROUND WIRE - Call your local BRP dealership

605455189

Unavailable

5

Socket Head Screw M6 X 20

M40052

Unavailable

6

Elastic Stop Nut M6

232561414

$0.55

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

BATTERY WIRE - Call your local BRP dealership

605355251

Unavailable

9

Battery, 12 Volts, 21 Amperes

410922962

$194.99

10

COVER - Call your local BRP dealership

605352572

Unavailable

11

STEEL STRIP - Call your local BRP dealership

605352573

Unavailable

12

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

13

Relais *Relay This part replaces 410113604.

515177672

$46.49

14

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable

15

FUSE DECAL - Call your local BRP dealership

605454618

Unavailable

16

COVER - Call your local BRP dealership

515176066

Unavailable

17

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

18

Fuse 1 A

M42044

Unavailable

18

Fuse, 5 Amperes | CE

278000344

$3.28

18

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

18

Fuse, 20 Amperes

409003900

$3.28

18

Fuse, 30 Amperes

410917200

$3.28

19

Battery Wire

605151524

Unavailable

20

Little Fuse, 15 Ampere

710000745

$8.49

21

Fuse, 5 Amperes | CE

278000344

$3.28

22

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

23

Fuse, 20 Amperes

409003900

$3.28
