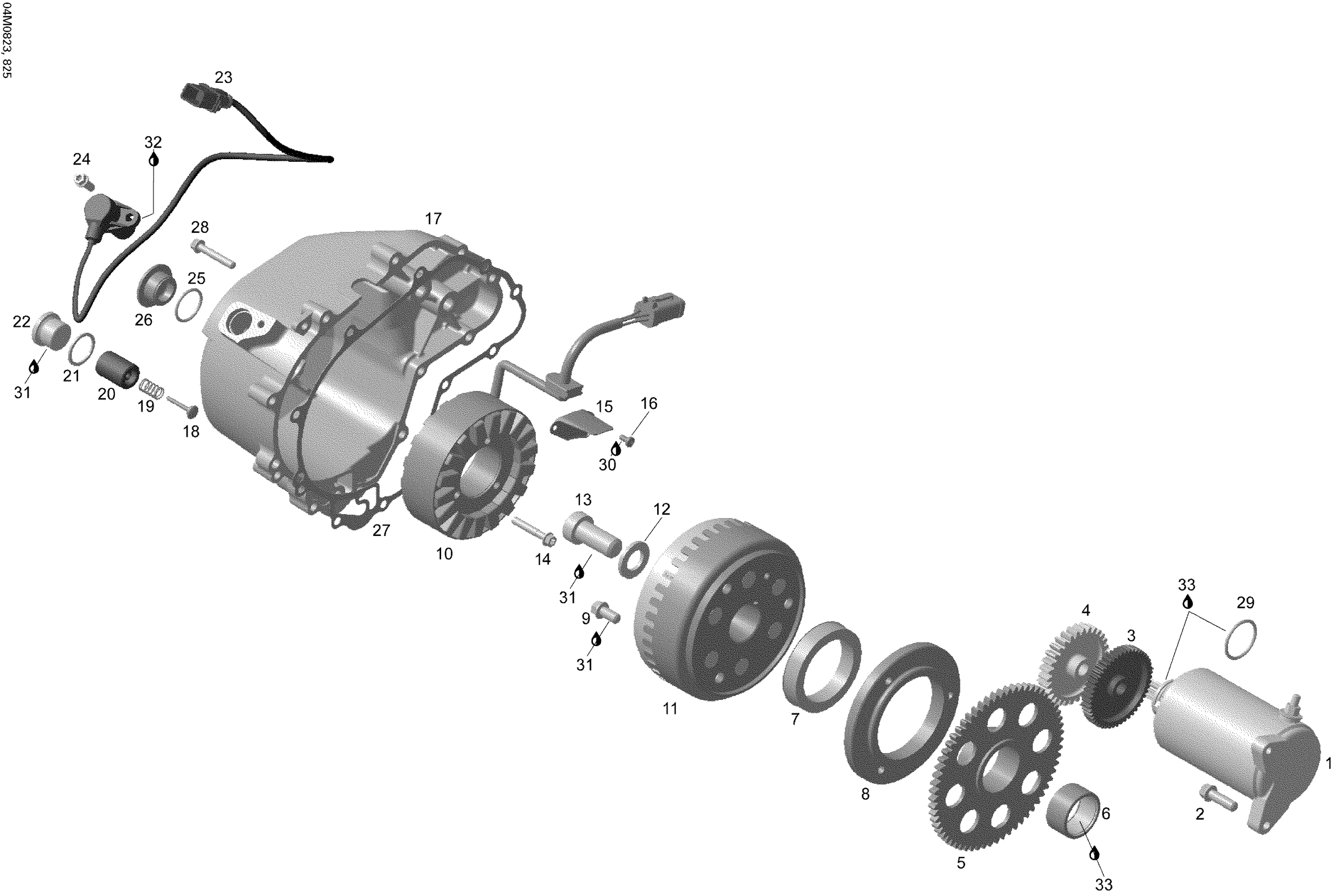

Ski-Doo Expedition TUV V800, 2008 03- Magneto Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$265.99

O-Ring

420250140

$8.57

2

Torx Flange Screw M8 X 25

420440372

$4.12

3

Starter Double Gear 11/49 T

420634741

$199.99

4

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

5

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

6

Not Available As Spare Parts

XXX

Unavailable

7

Sprag Clutch

420659111

$259.99

8

Sparg Clutch Housing

420659263

$154.99

9

Torx Flange Screw M8 X 16

420440852

$4.12

10

Stator Plate

420684853

$319.49

11

MAGNETO FLYWHEEL - Call your local BRP dealership

420684867

Unavailable

12

Shim

420627270

$4.12

13

Socket Head Screw M16 X 35

420241545

$14.28

14

Torx Flange Screw M6 X 35

420641258

$3.38

15

Interior Cable Support Ass'y

420251889

$14.30

16

Phillips Screw M4 X 8

420240196

$2.32

17

Ignition Cover

420212225

$190.49

18

Pressure Relief Valve

420656370

$19.19

19

Spring

420939481

$4.99

20

Housing

420256487

$7.41

21

Gasket Ring

420650465

$13.16

22

Plug Screw

420640271

$13.77

23

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

24

Torx Flange Screw M6 X 16

420641048

$2.96

25

O-Ring

420430782

$5.39

26

Plug Screw M24X 1.5

420241633

$7.41

27

Gasket

420651203

$35.99

28

Torx Flange Screw M6 X 35

420641258

$3.38

29

O-Ring

420250140

$8.57

30

Loctite 243, 10 ml

293800060

$21.49

31

Sealant Loctite 648

219703000

$45.99

32

Grease, Super Lube

293550030

$28.99

33

Synth Oil 4T 12x1

293600054

Unavailable
