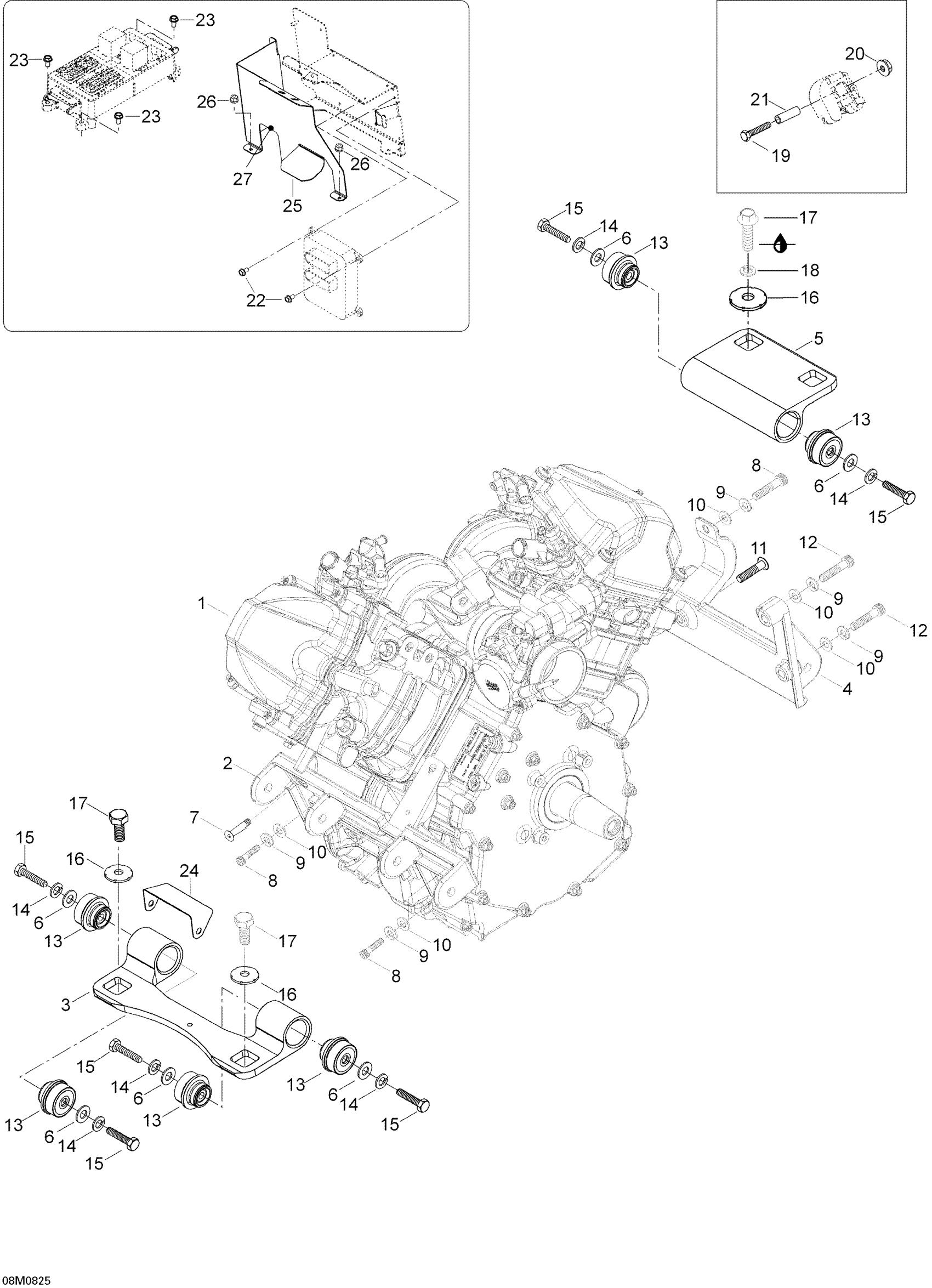

Ski-Doo Expedition TUV V800, 2008 01- Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FRONT ENGINE MOUNTING SUPPORT - Call your local BRP dealership

605253109

Unavailable

3

FRONT SUPPORT - Call your local BRP dealership

605353705

Unavailable

4

REAR ENGINE MOUNTING SUPPORT - Call your local BRP dealership

605253110

Unavailable

5

Rear Support

605353706

Unavailable

6

Flat Washer 10 mm

234001410

$1.26

7

Screw M8 X 20

M40839

Unavailable

8

Socket Head Screw M8 X 25

205082544

$1.15

9

Lock Washer 8 mm

234181401

$0.92

10

Flat Washer 8 mm

234081410

$0.83

11

SOCKET SCREW M8 X 25 - Call your local BRP dealership

605640012

Unavailable

12

Socket Head Screw M8 X 45

M40286

Unavailable

13

Rubber Mount

512059691

$47.99

14

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

15

Hex. Screw M10 X 30

207103044

$1.48

16

Lock Washer

512056700

$3.17

17

Hex. Screw M10 X 25

207102544

$1.37

18

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

19

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

SPACER - Call your local BRP dealership

512059812

Unavailable

22

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

23

Hex. Forming Screw M5 X 16

210251650

$1.15

24

FRONT DEFLECTOR - Call your local BRP dealership

605354238

Unavailable

25

HEAT COVER - Call your local BRP dealership

605353299

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Sealing Strip

M28413

Unavailable
