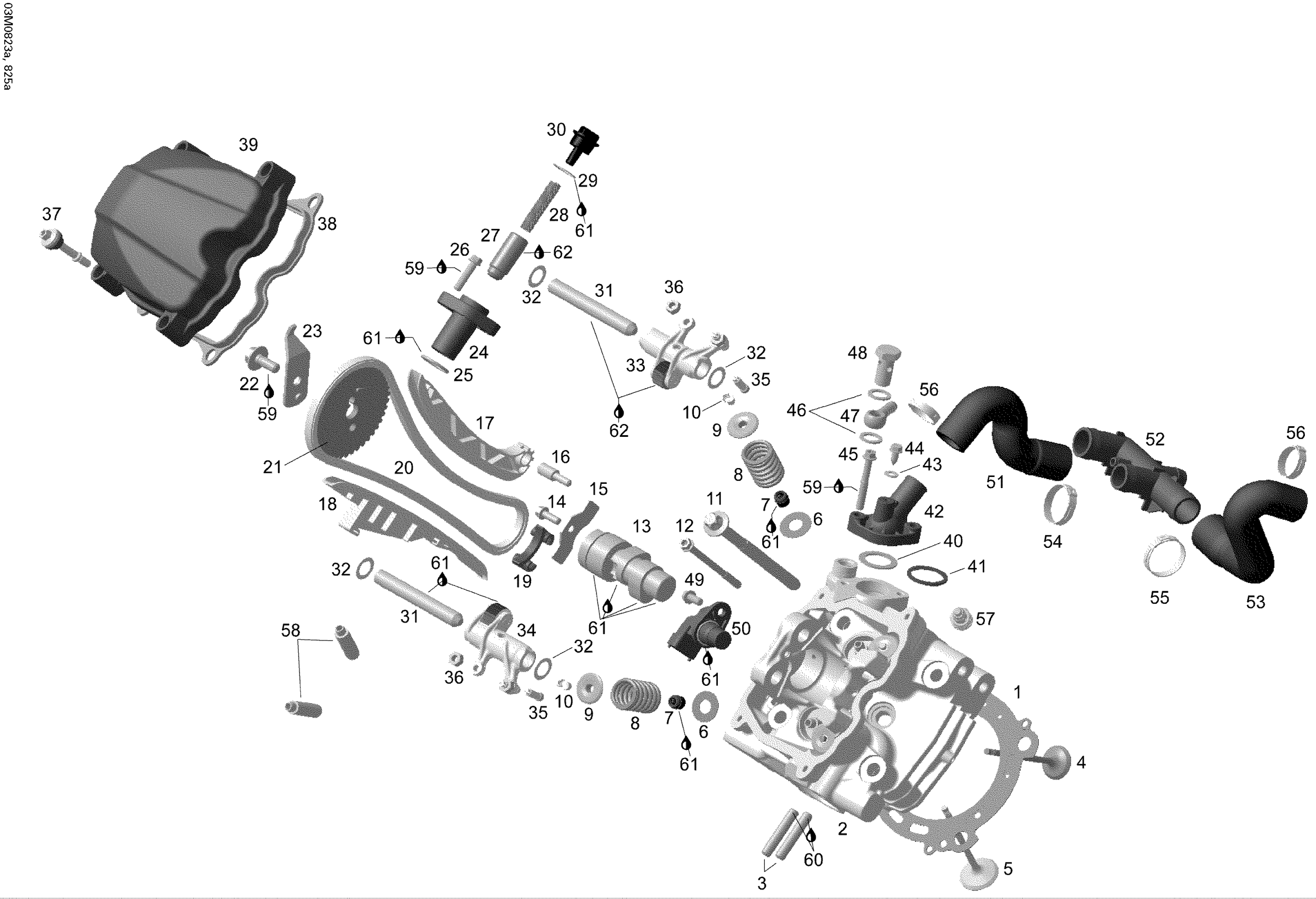

Ski-Doo Expedition TUV V800, 2008 01- Cylinder and Cylinder Head, Front Side Diagram

#

Description
Price

1

Cylinder Head Gasket | 400HO

420630195

$80.49

2

Cylinder Front Ass'y | Includes 2a to 3

420613534

$660.49

3

Stud M8 x 26

420941014

$14.22

4

Intake Valve 31MM

420254359

$35.99

5

Exhaust Valve 27MM

420254368

$69.99

6

Thrust Washer

420627525

$1.79

7

Valve Stem Seal

420230515

$12.18

8

Valve Spring

420239295

$14.28

9

Valve Spring Retainer

420254132

$14.28

10

Cotter Valve

420254120

$4.12

11

Torx Screw M10X140

420641551

$14.28

12

Torx Flange Screw M6 X 85

420641228

$7.41

13

CAMSHAFT - Call your local BRP dealership

420620023

Unavailable

14

Torx Flange Screw M6 X 16

420641048

$2.96

15

Holding Strip

420627743

$18.49

16

Bearing Screw M6

420240943

$5.24

17

Chain Tension Guide

420436015

$29.49

18

Chain Guide

420236584

$7.51

19

Chain Guide

420236351

$14.81

20

Silent Chain

420297063

$65.49

21

Camshaft Sprocket

420254434

$36.99

22

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.41

23

Trigger

420664255

$12.63

24

Chain Tensioner Housing

420236510

$11.63

25

O-Ring

420430373

$3.17

26

Torx Flange Screw M6 X 25

420641238

$3.27

27

Chain Tensioner Plunger

420236521

$14.83

28

Spring

420238120

$7.41

29

O-Ring

420250890

$3.06

30

Plug Screw

420641150

$7.41

31

Pin #12, Small, M6 X 90

420229712

$15.89

32

Shim

420944382

$4.12

33

Inlet Rocker Arm

420254907

$142.99

34

Exhaust Rocker Arm

420254911

$147.99

35

Adjustment Screw M6 X 0.75

420241337

$5.07

36

Hex Nut M6

420242913

$0.53

37

Allen Screw M6 x 30,5

420440561

$4.44

38

Gasket

420630260

$26.49

39

Valve Cover

420610393

$26.49

40

Spacer Ass'y | Includes 40 to 41

420927837

$7.41

41

Thermostat Gasket

420650300

$8.57

42

Thermostat Cover

420222696

$3.17

43

Gasket Ring

420650255

$4.12

44

Screw M5 X 16

420441621

$3.17

45

Torx Flange Screw M6 X 25

420641238

$3.27

46

Copper Washer

420250640

$0.98

47

HOSE NIPPLE - Call your local BRP dealership

420822380

Unavailable

48

BANJO BOLT - Call your local BRP dealership

420641545

Unavailable

49

Torx Flange Screw M6 X 16

420641048

$2.96

50

Camshaft Position Sensor Ass'y

420664046

$88.99

51

WATER HOSE - Call your local BRP dealership

420822357

Unavailable

52

HOSE JOINT - Call your local BRP dealership

420922282

Unavailable

53

WATER TUBE - Call your local BRP dealership

420822355

Unavailable

54

Clamp

420853163

$10.33

55

CLAMP - Call your local BRP dealership

420853173

Unavailable

56

Clamp

420251578

$8.57

57

Spark Plug, NGK DCP-R8E

715900637

$6.35

58

Valve Guide

420254374

$27.99

59

Loctite 243, 10 ml

293800060

$21.49

60

Sealant Loctite 648

219703000

$45.99

61

Grease, Super Lube

293550030

$28.99

62

Synth Oil 4T 12x1

293600054

Unavailable
