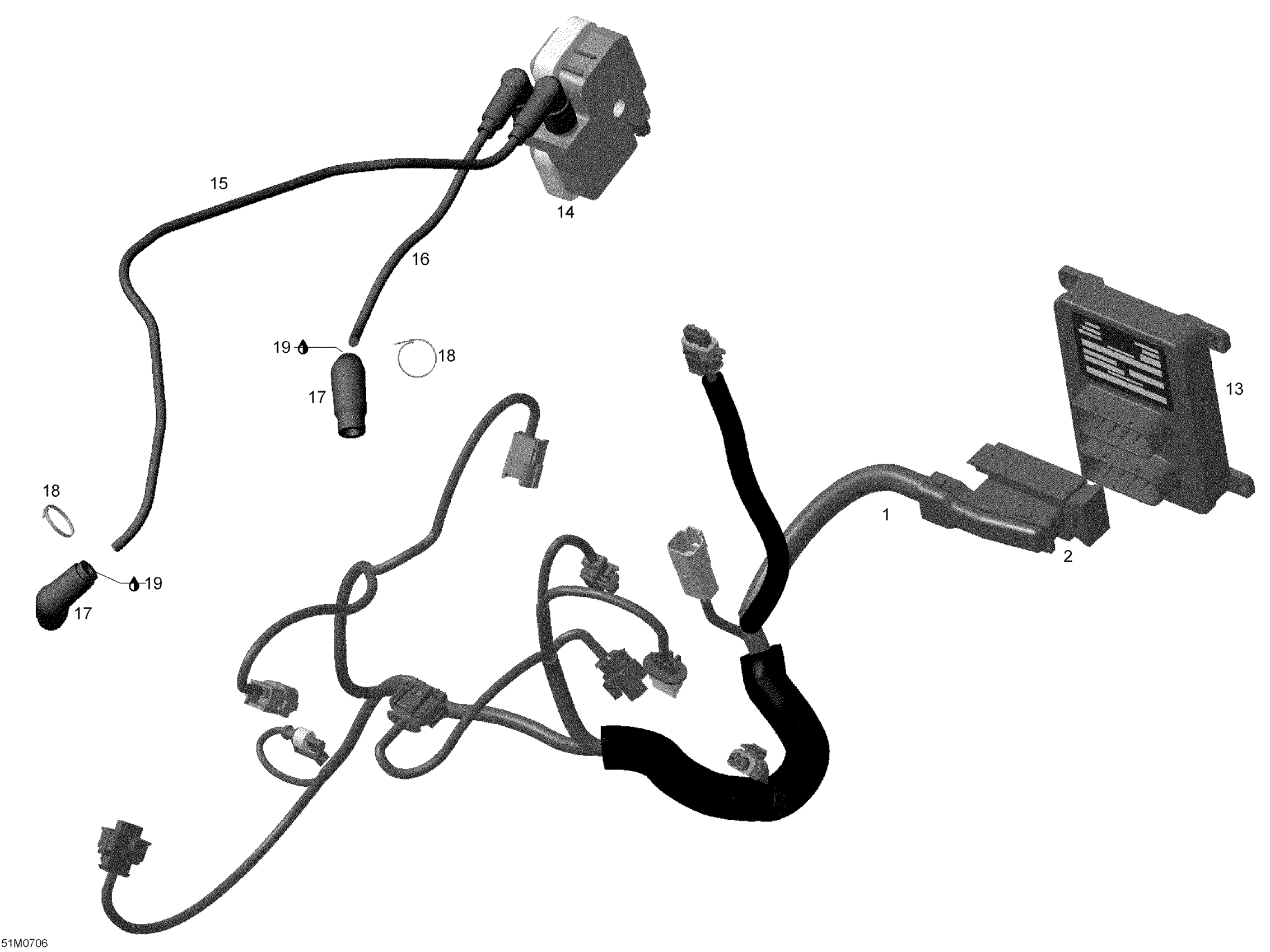

Ski-Doo Expedition TUV V800, 2007 Engine Harness And Electronic Module Diagram

#

Description

Price

1

WIRING HARNESS - Call your local BRP dealership | Includes 1 to 13

420665243

Unavailable

2

ECM Connector

420664450

$27.49

13

Electronic Box

420665279

Unavailable

14

Ignition Coil

278001546

$158.99

15

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

16

CABLE ASS?Y 245 MM PTO - Call your local BRP dealership

420664305

Unavailable

17

Spark Plug Connector

420265248

$31.99

18

Tie Rap

420866710

$5.49

19

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
