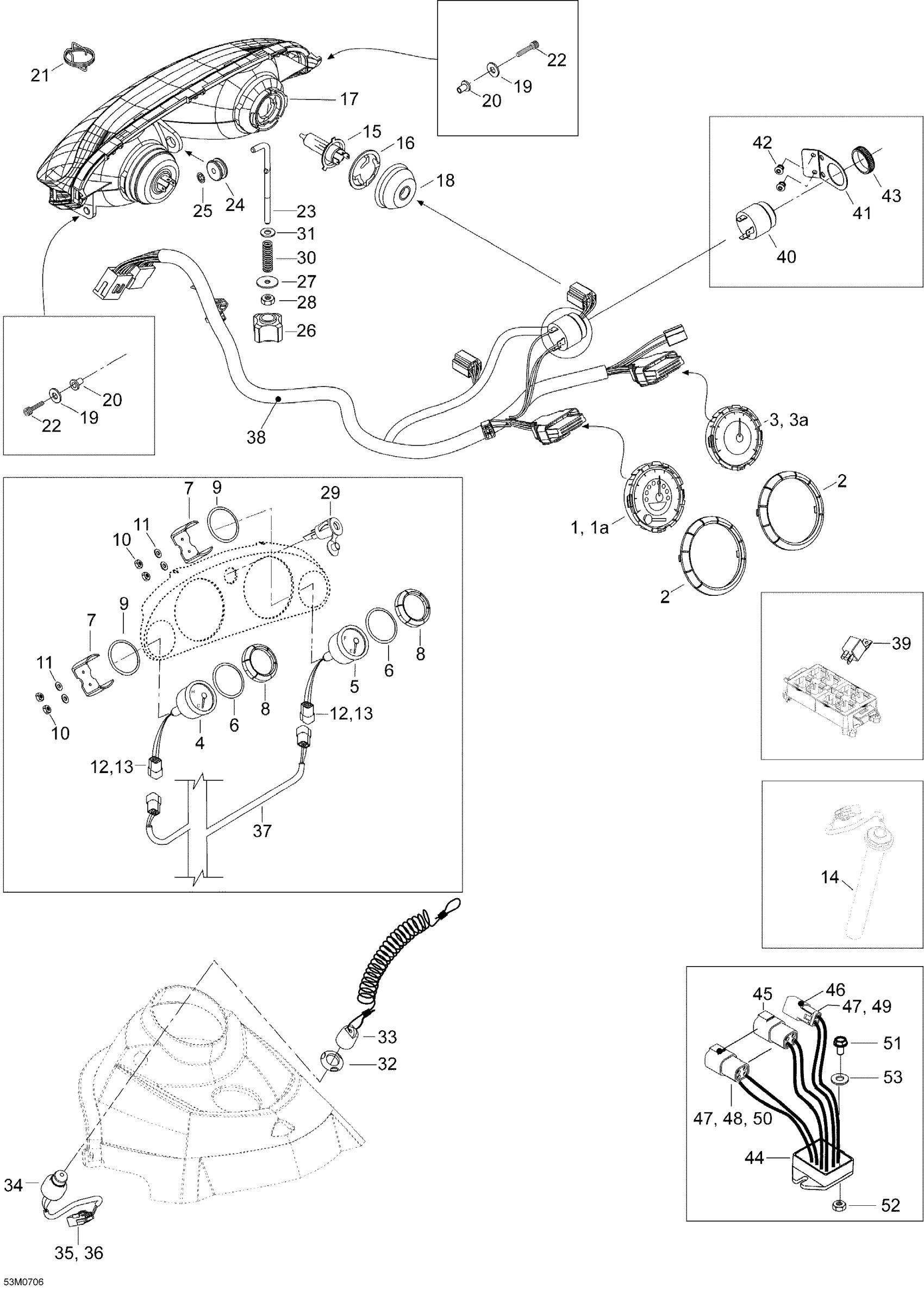

Ski-Doo Expedition TUV V800, 2007 10- Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

1a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

TACHOMETER - Call your local BRP dealership

515176478

Unavailable

3a

Lens

415129320

$24.49

4

Temperature Gauge

515175601

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

515175529

Unavailable

6

O-RING - Call your local BRP dealership

414807200

Unavailable

7

Case Holder

415099800

Unavailable

8

RING GAUGE - Call your local BRP dealership

515175711

Unavailable

9

WASHER - Call your local BRP dealership

517258600

Unavailable

10

Elastic Stop Nut M4

232541414

$0.58

11

Washer

20037

$2.11

12

Male Connector Housing

M42269

Unavailable

13

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

14

Fuel Sensor

605354768

Unavailable

15

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

16

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

17

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

18

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

19

Washer 5,3 mm

20008

$0.74

20

NUT M5 - Call your local BRP dealership

250100018

$6.99

21

SPRING - Call your local BRP dealership

M5447238

Unavailable

22

Screw M5X35

M40235

Unavailable

23

ADJUSTER ROD - Call your local BRP dealership

605450023

Unavailable

24

Grommet - Call your local BRP dealership

415100800

Unavailable

25

Push Nut

732610072

$2.19

26

Handle - Call your local BRP dealership

515175548

Unavailable

27

WASHER - Call your local BRP dealership

M20038

Unavailable

28

Elastic Stop Nut M6

232561414

$0.55

29

DC Outlet

710001248

$37.99

30

SPRING - Call your local BRP dealership

415100600

Unavailable

31

Flat Washer 6 mm

234061410

$1.36

32

Safety Nut (DESS Switch)

278002963

$3.28

33

DESS

515178284

$84.99

34

DESS Switch

515177249

$114.99

35

Male Terminal

515175232

$1.58

36

Male Housing, 3 Circuits

515175494

$16.18

37

Harness Ass'y

605153859

Unavailable

38

Harness Ass'y

605153275

Unavailable

39

Relais *Relay This part replaces 410113604.

515177672

$46.49

40

HORN - Call your local BRP dealership

515176035

Unavailable

41

Holder

M5447941

Unavailable

42

Rivet

36005

$2.11

43

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

44

Voltage Regulator | Includes 32 to 38

515176243

$359.99

45

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

46

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

47

Male Terminal

515175568

$9.12

48

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

49

Male Lock, 2 Circuits

278001672

$3.49

50

Sealing Cap

293000052

$3.19

51

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

52

Elastic Stop Nut M6

232561414

$0.55

53

Flat Washer 6 mm

234062410

$0.77
