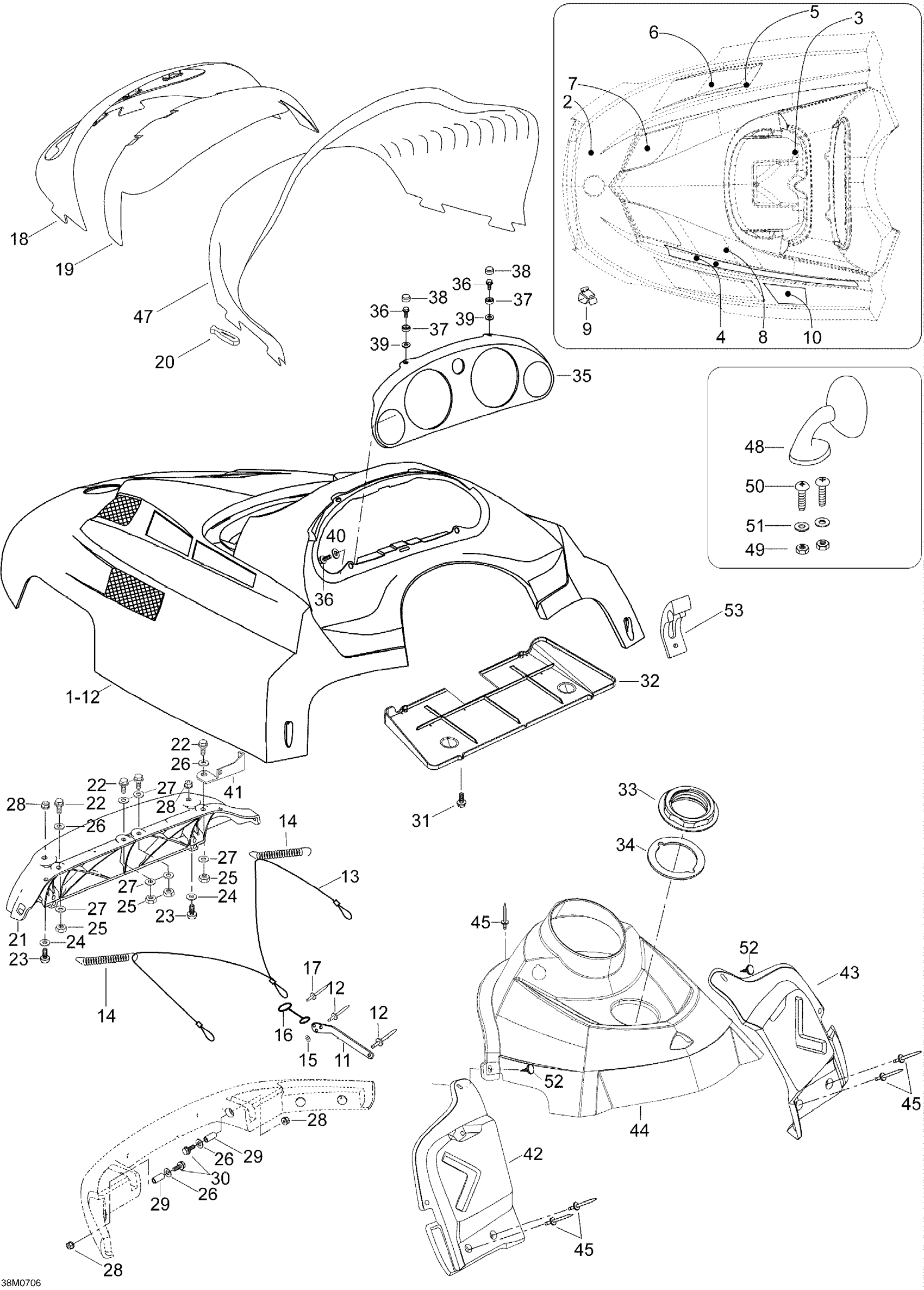

Ski-Doo Expedition TUV V800, 2007 Hood Diagram

#

Description
Price

1

Hood Ass'y, Cranberry Red

605154427

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

HEAT PROTECTOR - Call your local BRP dealership

605350919

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

605350920

Unavailable

4

HEAT SHIELD - Call your local BRP dealership

605350921

Unavailable

5

HEAT PROTECTOR - Call your local BRP dealership

605350922

Unavailable

6

LH UPPER GRILL - Call your local BRP dealership

605350923

Unavailable

6

RH UPPER GRILL - Call your local BRP dealership

605350924

Unavailable

7

LH LOWER GRILL - Call your local BRP dealership

605350925

Unavailable

7

RH LOWER GRILL - Call your local BRP dealership

605350926

Unavailable

8

LH GRILL - Call your local BRP dealership

605350927

Unavailable

9

Clip

414227300

$1.45

10

HEAT SHIELD - Call your local BRP dealership

605350929

Unavailable

11

BRACKET - Call your local BRP dealership

605452657

Unavailable

12

RIVET - Call your local BRP dealership

M36002

Unavailable

13

Retainer Cable

605351372

Unavailable

14

Spring This part replaces M5442675.

5442675

$12.95

15

Washer

M20001

Unavailable

16

Cable Keeper

M5442870

Unavailable

17

RIVET - Call your local BRP dealership

M36097

Unavailable

18

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.97

19

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

20

Windshield Latch

570023800

$3.58

21

Hinge

517302631

$46.12

22

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

23

Screw M6X20

M40381

Unavailable

24

Washer

20117

$5.22

25

Elastic Stop Nut M6

232561414

$1.55

26

Flat Washer 6 mm

234061410

$1.04

27

Flat Washer 6 mm

234062410

$0.64

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

BUSHING - Call your local BRP dealership

517302179

Unavailable

30

Hex. Screw

M40003

Unavailable

31

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

32

AIR INTAKE PLATE - Call your local BRP dealership

605151831

Unavailable

33

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

34

Gasket

M5447116

Unavailable

35

INDICATOR SUPPORT - Call your local BRP dealership

605353602

Unavailable

36

Screw Plastofast 4x10 - Call your local BRP dealership

M40611

Unavailable

37

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

38

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

39

Washer

20037

$2.05

40

WASHER - Call your local BRP dealership

M20039

Unavailable

41

LH HOOD SUPPORT - Call your local BRP dealership

605351463

Unavailable

41

RH HOOD SUPPORT - Call your local BRP dealership

605351464

Unavailable

42

LH CONSOLE - Call your local BRP dealership

605251384

Unavailable

43

RH CONSOLE - Call your local BRP dealership

605251385

Unavailable

44

CONSOLE, MIDDLE - Call your local BRP dealership

605251387

Unavailable

45

Black Rivet

36037

$1.48

47

Windshield

605152073

Unavailable

48

RH Mirror

605250583

Unavailable

48

LH Mirror

605250582

Unavailable

48

Mirror Kit

605450857

Unavailable

49

Elastic Stop Nut M4

232541414

$0.48

50

Screw

M40167

Unavailable

51

Washer

M20001

Unavailable

52

Black, Dart

414644300

$0.78

53

Hood Latch

517302152

$15.35
