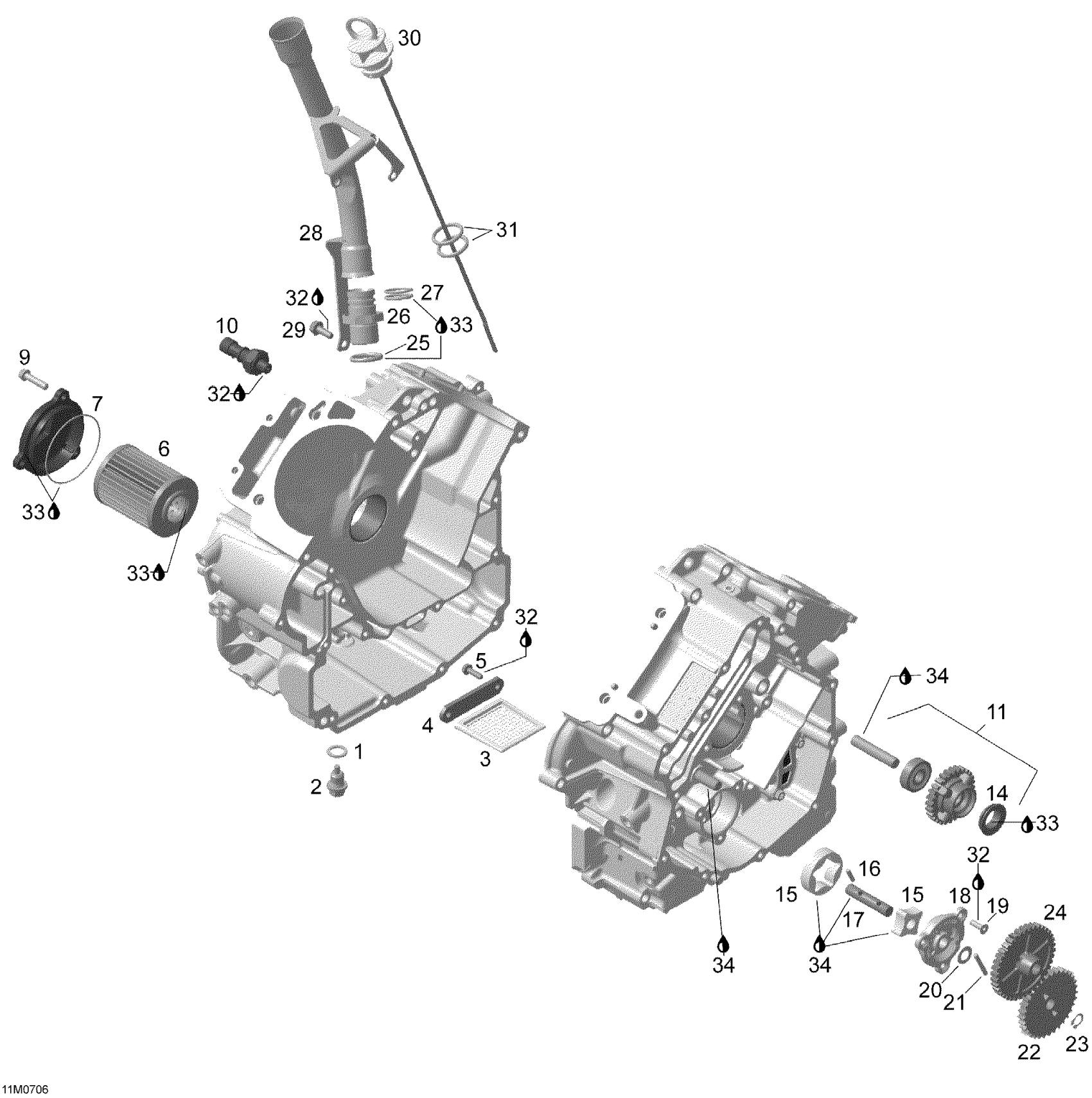

Ski-Doo Expedition TUV V800, 2007 02- Oil Pump Diagram

#

Description
Price

1

Copper Washer

420250640

$0.98

2

Magnetic Drain Plug M12

420241787

$17.99

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420210661

$14.28

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$13.77

7

O-Ring

420230923

$3.17

8

Oil Filter cover

420612135

$11.63

9

Torx Flange Screw M6 X 25

420641238

$3.27

10

Oil Pressure Switch

420856537

$45.99

11

IDLE GEAR, 28 TEETH - Call your local BRP dealership | Includes 13 to 16

420434305

Unavailable

14

V-Ring 20S FPM Blow By Valve

420630125

$11.63

15

Oil Pump Rotor

420256348

$77.99

16

Needle Pin

420232731

$4.01

17

Oil Pump Shaft

420237059

$29.49

18

Oil Pump Cover

420210646

$48.49

19

Torx Head Screw M5 X 16

420640823

$1.90

20

Thrust Washer

420827590

$4.01

21

Needle Pin

420232431

$4.39

22

Oil Pump Gear, 33 Teeth

420434320

$13.77

23

Snap Ring

420245330

$1.79

24

Idle Gear, 38 Teeth

420434300

$13.77

25

O-Ring

420631640

$2.11

26

Adaptor

420856610

$18.49

27

O-Ring

420430373

$3.17

28

OIL TUBE - Call your local BRP dealership

420856920

Unavailable

29

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

30

OIL LEVER GAUGE ASS'Y - Call your local BRP dealership | Includes 30 to 31

420956936

Unavailable

31

O-Ring

420631640

$2.11

32

Loctite 243, 10 ml

293800060

$21.49

33

Grease, Super Lube

293550030

$28.99

34

Drive Pin 5 X 10

420929650

$1.68
