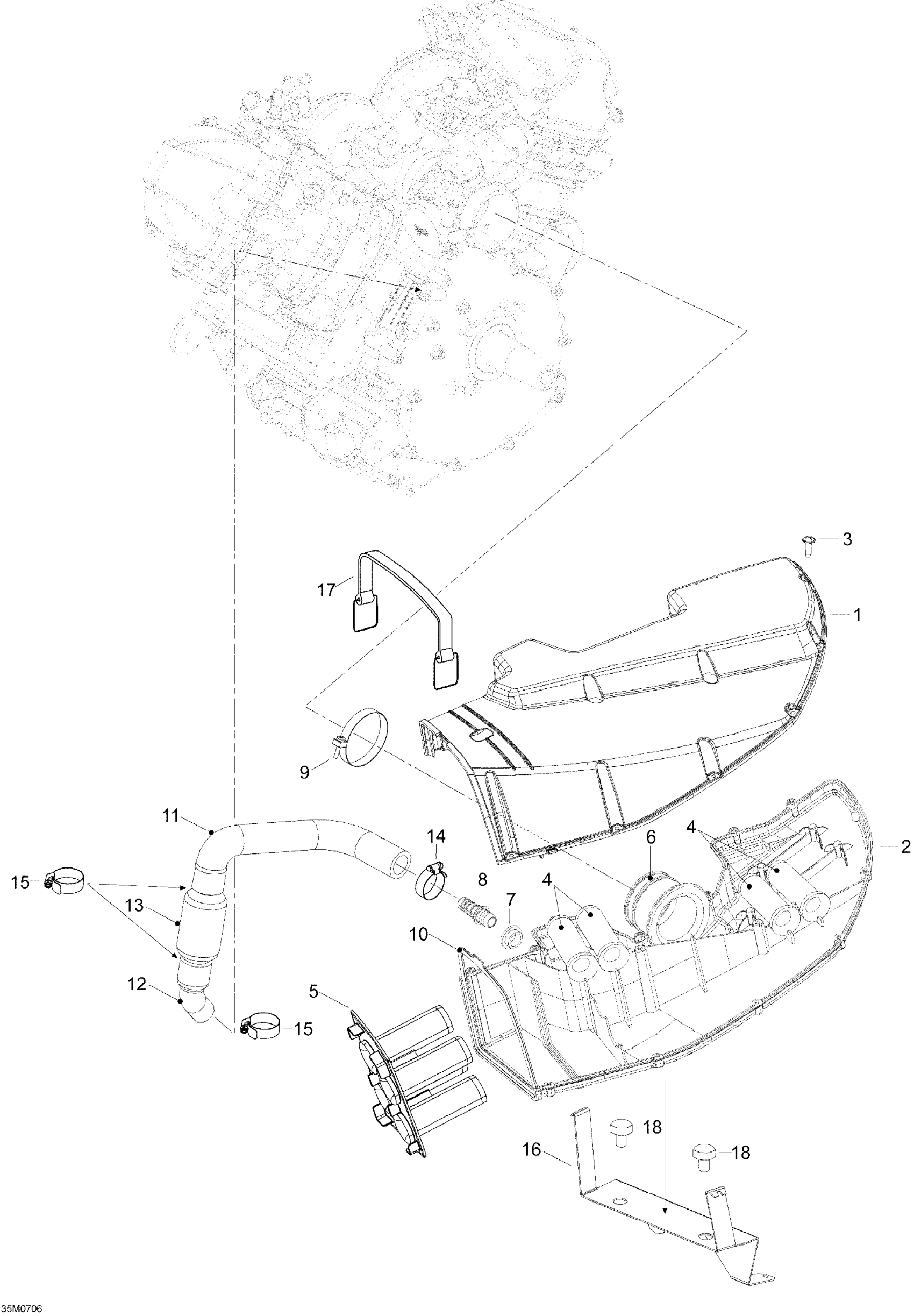

Ski-Doo Expedition TUV V800, 2007 02- Air Intake System Diagram

#

Description
Price

1

AIR INTAKE COVER BOX - Call your local BRP dealership

605153098

Unavailable

2

AIR INTAKE BOTTOM BOX - Call your local BRP dealership

605153099

Unavailable

3

Screw Plastofast Mp 6 X 16 Pz

293700048

$2.11

4

INLET TUBE - Call your local BRP dealership This part replaces M5444445.

5444445

Unavailable

5

VENTURY TUBE SET - Call your local BRP dealership

605253649

Unavailable

6

INTAKE ADAPTATOR - Call your local BRP dealership

605353177

Unavailable

7

Insulating Ring

570023000

$5.61

8

CONNECTOR - Call your local BRP dealership

605453846

Unavailable

9

Gemi Clamp

508000346

$10.33

10

AIR FILTER - Call your local BRP dealership

605353517

Unavailable

11

HOSE - Call your local BRP dealership

605354128

Unavailable

12

HOSE - Call your local BRP dealership

605354127

Unavailable

13

Ventillation Chamber

605354126

Unavailable

14

CLAMP - Call your local BRP dealership

605627001

Unavailable

15

Clamp

605627004

Unavailable

16

INTAKE SILENCER SUPPORT - Call your local BRP dealership

605353774

Unavailable

17

Battery Strap This part replaces 515175955.

605356180

$27.99

18

Rubber Bumper

570044700

$13.10
