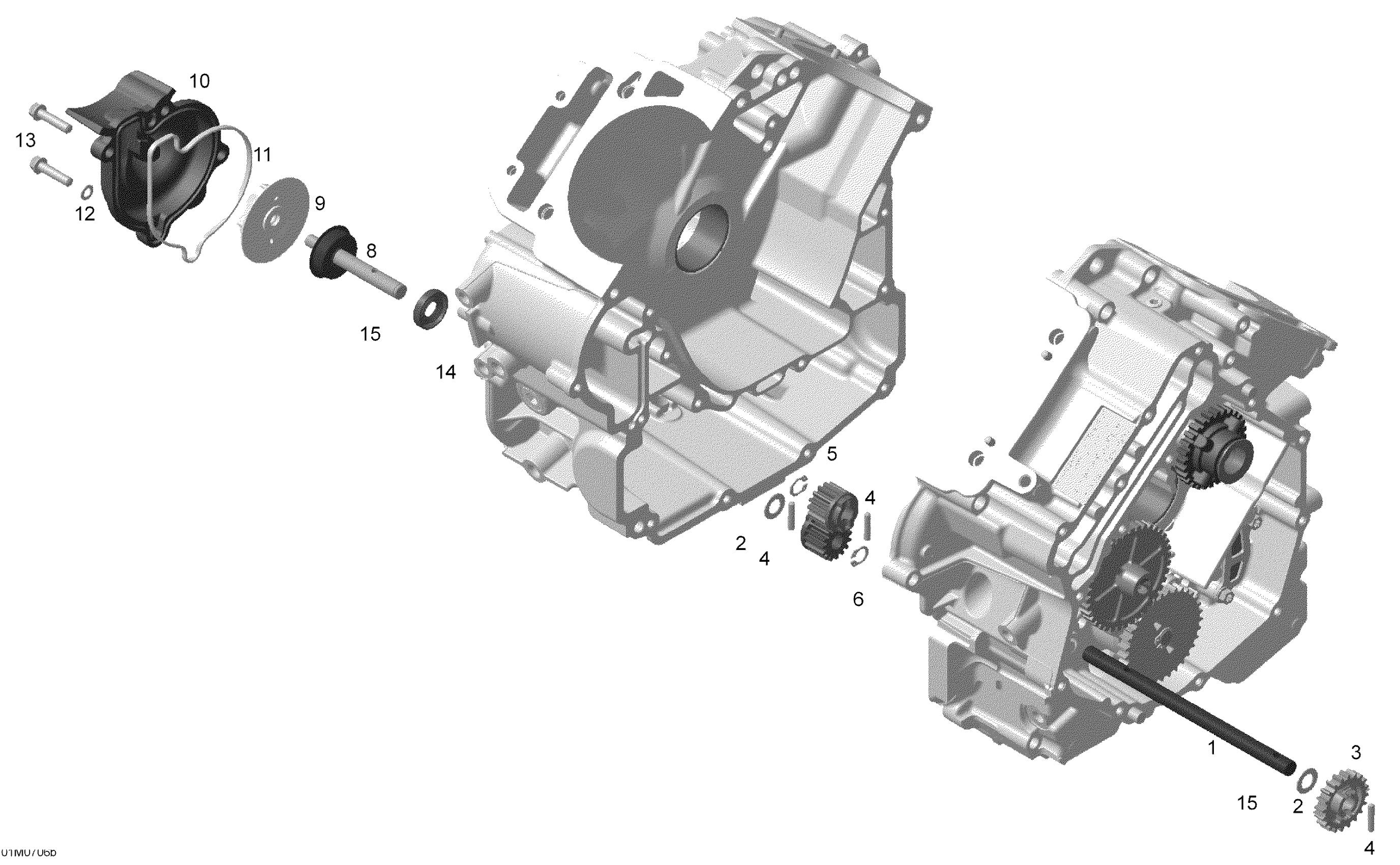

Ski-Doo Expedition TUV V800, 2007 Crankcase, Water Pump And Oil Pump Diagram

#

Description
Price

1

Intermediate Shaft

420620500

$35.14

2

Thrust Washer

420827590

$3.86

3

Water Pump Gear

420434330

$11.09

4

Needle Pin

420232420

$3.86

5

Pump Gear, 15 Teeth

420234627

$11.09

6

Snap Ring

420245330

$1.43

8

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$69.34

9

Water Impeller

420222505

$14.92

10

WATER PUMP HOUSING - Call your local BRP dealership

420222780

Unavailable

11

Gasket

420651190

$8.34

12

Seal Washer

420230415

$1.77

13

Torx Flange Screw M6 X 25

420641238

$2.68

14

Grease, Super Lube

293550030

$24.67

15

Synth Oil 4T 12x1

293600054

Unavailable
