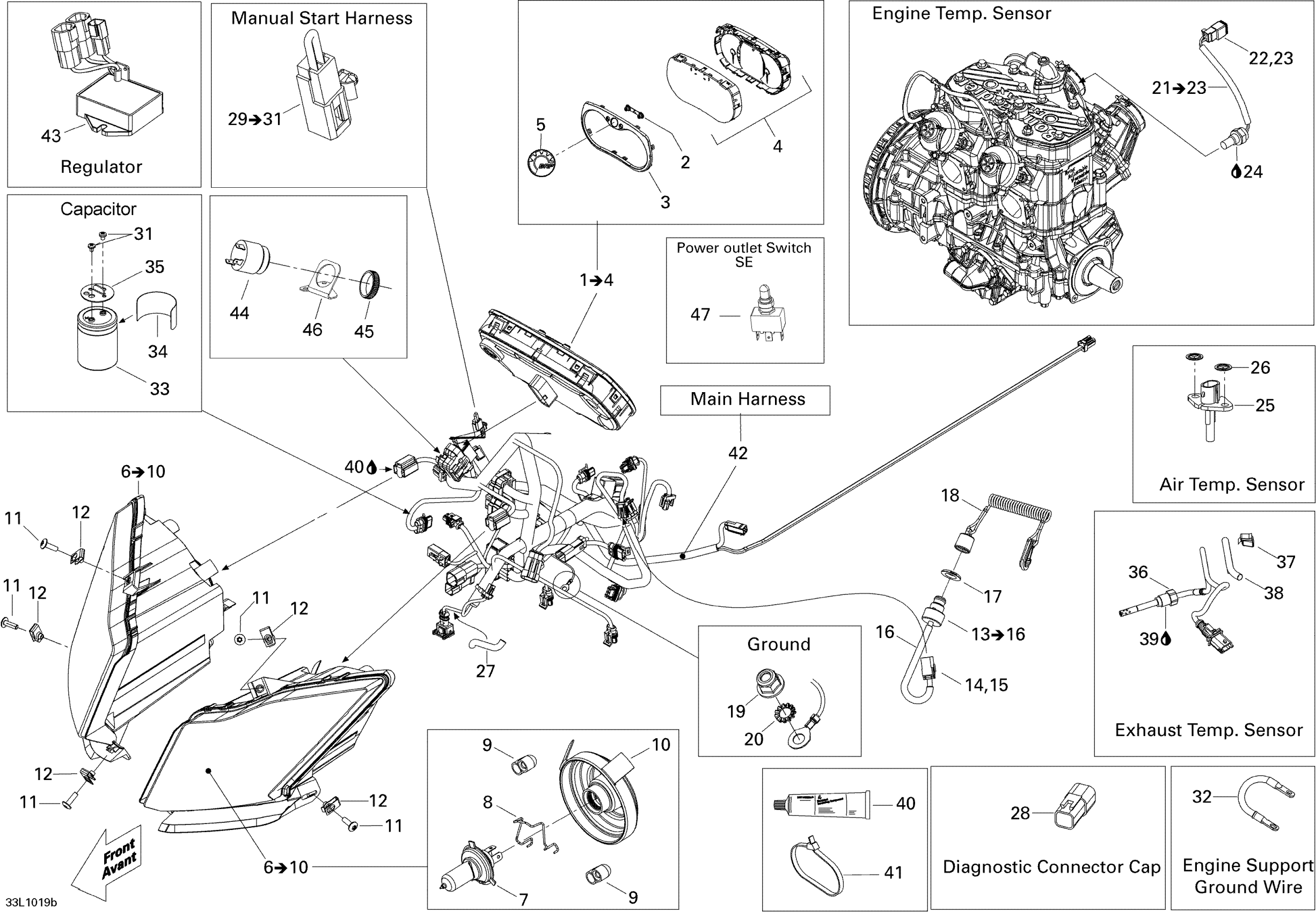

Ski-Doo Expedition TUV SE 600HO SDI XU, 2010 Electrical System SE Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$596.99

2

Speedometer Button | XTP

415129355

$13.52

3

Gauge Ring

415129348

$11.36

4

Lens | XTP

415129349

$22.36

5

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

8

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

9

Cap

515176498

$11.82

10

Rubber Cap Protector

219800280

$17.13

11

Torx Screw M6 X 20

250000722

$1.54

12

Panel Nut M6 X 1.0

250100198

$1.99

13

DESS Switch

515177249

$102.96

14

Male Terminal

515175232

$1.45

15

Male Housing, 3 Circuits

515175494

$14.90

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Safety Nut (DESS Switch)

278002963

$3.12

18

DESS

515178284

$79.07

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

20

External Serrated Lock Washer 6 mm

234461608

$1.06

21

Temperature Sensor This part replaces 420664508.

420664509

$138.03

22

Female Terminal Housing, 2 Circuits

515175670

$7.61

23

Female Terminal

278000632

$1.94

24

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

25

Air Temperature Sensor

515176366

$17.88

26

Push Nut

389804300

$0.49

27

Tubing 6 Mm 3000Mm Long

219704425

$12.75

28

Diagnostic Connector

278002704

$17.88

29

MANUAL START HARNESS - Call your local BRP dealership | Includes 29 to 31

515176661

Unavailable

31

SCREW 10-32 X 5/16 - Call your local BRP dealership

515176542

Unavailable

32

Ground Wire

515176358

$25.34

33

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

34

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

35

Cap

515177193

$4.30

36

Temperature Sensor

514054641

$200.72

37

Clip

414227300

$1.40

38

Tubing 6 Mm 3000Mm Long

219704425

$12.75

39

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

41

Tie Wrap 94 mm | 4X4

293750001

$0.96

41

Tie Wrap 142 mm

293750002

$1.01

41

Tie-Rap 180 mm

414115200

$0.10

41

Tie Wrap 368 mm

293750008

$0.97

42

WIRING HARNESS MAIN - Call your local BRP dealership

515176657

Unavailable

43

Voltage Regulator | Includes 32 to 38

515176243

$335.04

44

HORN - Call your local BRP dealership

515176035

Unavailable

45

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

46

REVERSE BUZZ HOLDER - Call your local BRP dealership

515176822

Unavailable

47

Heat Grip Switch

410110700

$30.57
