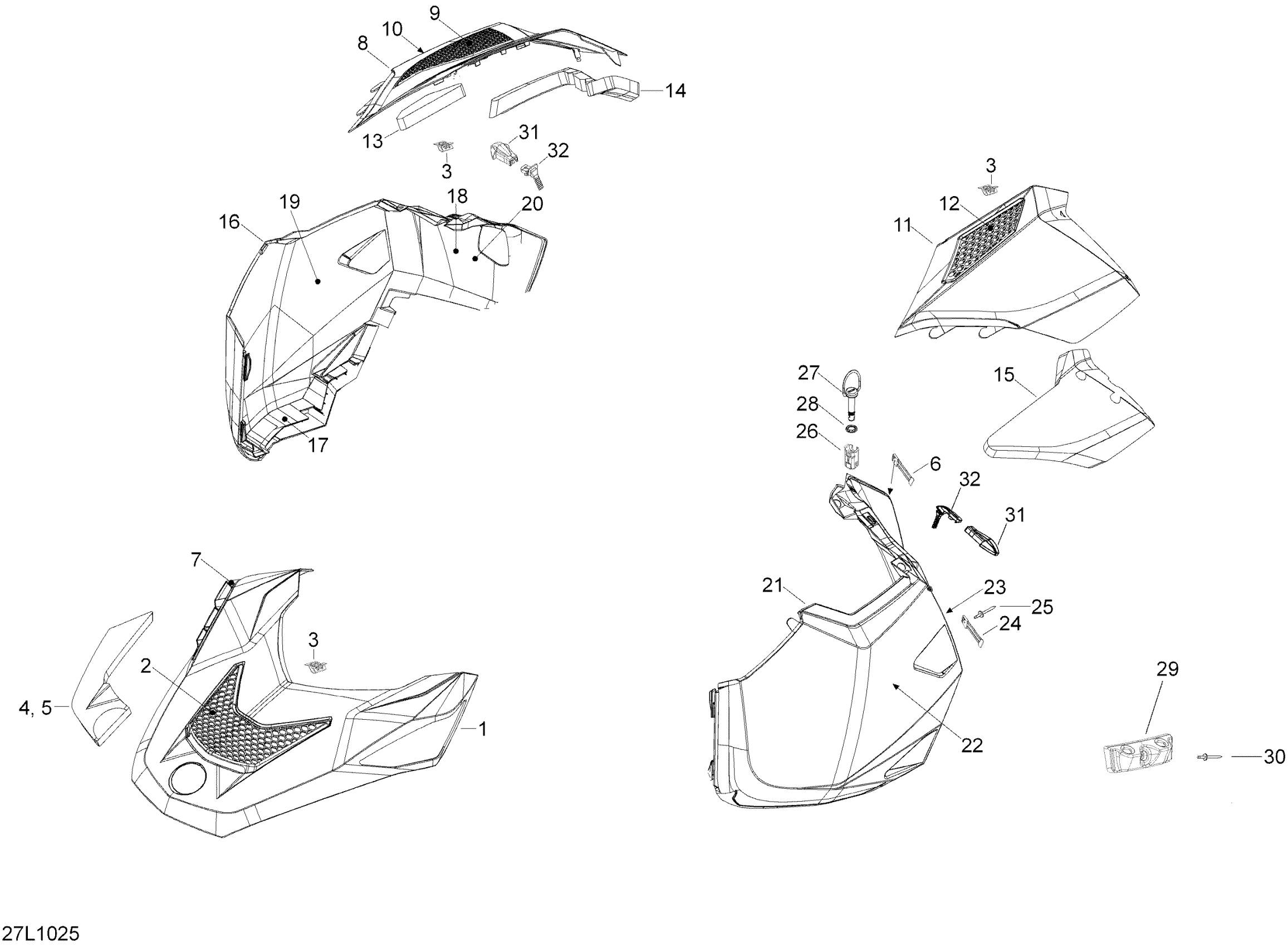

Ski-Doo Expedition TUV SE 1200 REV-XU, 2010 09- Hood SE Diagram

#

Description
Price

1

Black, Hood

517304812

$319.99

2

Hood Grille

517304843

$88.99

3

Edge Clip

517302785

$0.88

4

Insulator

517304330

$36.99

5

Insulator

517304214

$31.99

6

Latch Pannel

517304289

$11.49

7

Scoop Grille

517306980

$37.99

8

Red Side Access Panel RH | SE EU models

517304824

$309.99

9

RH Access Panel Grille

517304015

$36.99

10

RH Lower Acces Grille

517304016

$31.99

11

PANEL_BODY UP L B-283 - Call your local BRP dealership | SE EU models

517304835

Unavailable

12

LH Access Panel Grille

517303893

$36.99

13

Insulator

517304311

$61.99

14

Insulator

517304312

$31.99

15

Insulator

517304313

$61.99

16

Side Panel RH Ass'y

517304509

Unavailable

17

Aluminium Foil

517304215

$19.99

18

Aluminium Foil

517304216

$22.49

19

Aluminium Foil

517304512

$28.99

20

RH Rear Foam

517304310

$60.99

21

Side Panel LH Ass'y

517304511

Unavailable

22

LH Foam

517303891

$52.99

23

LH Rear Foam

517304309

$60.99

24

Latch-Panel

517304572

$11.99

25

Pop Rivet 3/16”

293150108

$1.19

26

Handle Fastener Quarter-Turn

517304297

$16.99

27

Quarter-Turn Handle

517304296

$16.99

28

Locking Plate

517304538

$4.59

29

Side Panel Support | Except Package SWT

517304497

$19.99

30

Rivet

36005

$2.11

31

Black Latch Kit | Includes 390 to 400

860200239

$16.88

32

Latch-Panel

517306057

$24.49
