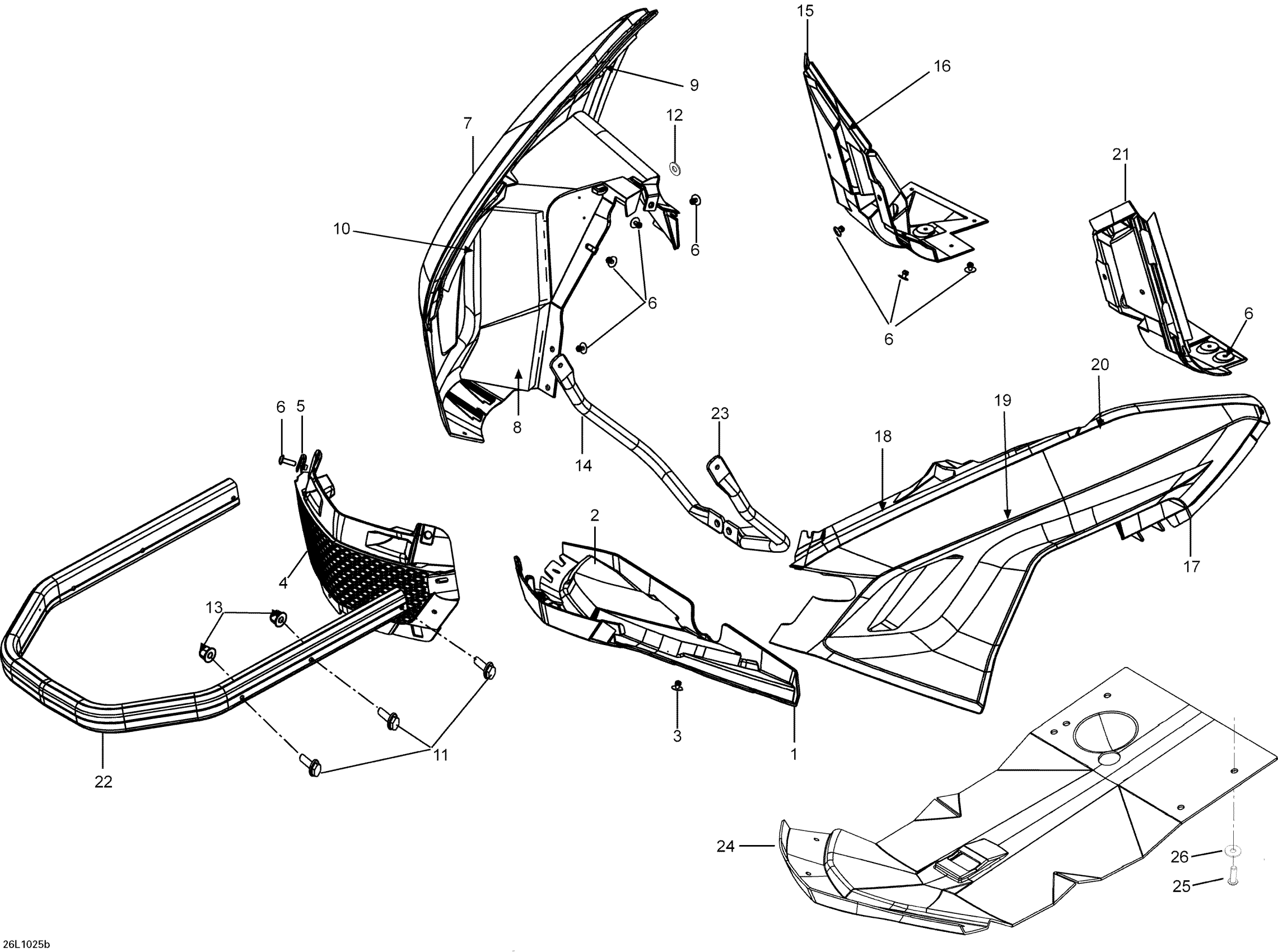

Ski-Doo Expedition TUV SE 1200 REV-XU, 2010 09- Bottom Pan SE Diagram

#

Description
Price

1

Black, Front Bottom Pan

502008006

$149.99

2

Insulator

502007002

$28.99

3

Pop Rivet 3/16"

293150103

$0.55

4

Grille

502007145

$56.99

5

Panel Nut M6 X 1.0

250100198

$2.11

6

Torx Screw M6 X 20

250000722

$1.68

7

Bottom Pan R.H. | Package SE This part replaces 502007187.

502007992

$169.99

8

Insulator | Model LE, SE

502007006

$28.99

9

Insulator | Model LE, SE

502007008

$19.49

10

Insulator | Except Package EXTREME

502007009

$19.49

11

Hex. Flange Screw M6 X 40

207664044

$2.22

12

WASHER M5 - Call your local BRP dealership

234052490

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

RH Bumper Support

502007015

$92.99

15

RH Rear Bottom Pan Ass'y | Includes 21 to 23

502008010

$99.99

16

Aluminium Foil

502007038

$18.99

17

Deep Black, LH Bottom Pan | Package SE

502008002

$194.99

18

Insulator

502007003

$28.99

19

INSULATOR - Call your local BRP dealership

502007004

Unavailable

20

INSULATOR - Call your local BRP dealership

502007005

Unavailable

21

LH Rear Bottom Pan

502008012

$114.99

22

Clear Bumper

502007170

$134.49

23

LH Bumper Support

502007014

$92.99

24

Skid Plate | Package SE

860200563

$222.49

25

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

26

Flat Washer 8 mm

234082410

$1.47
