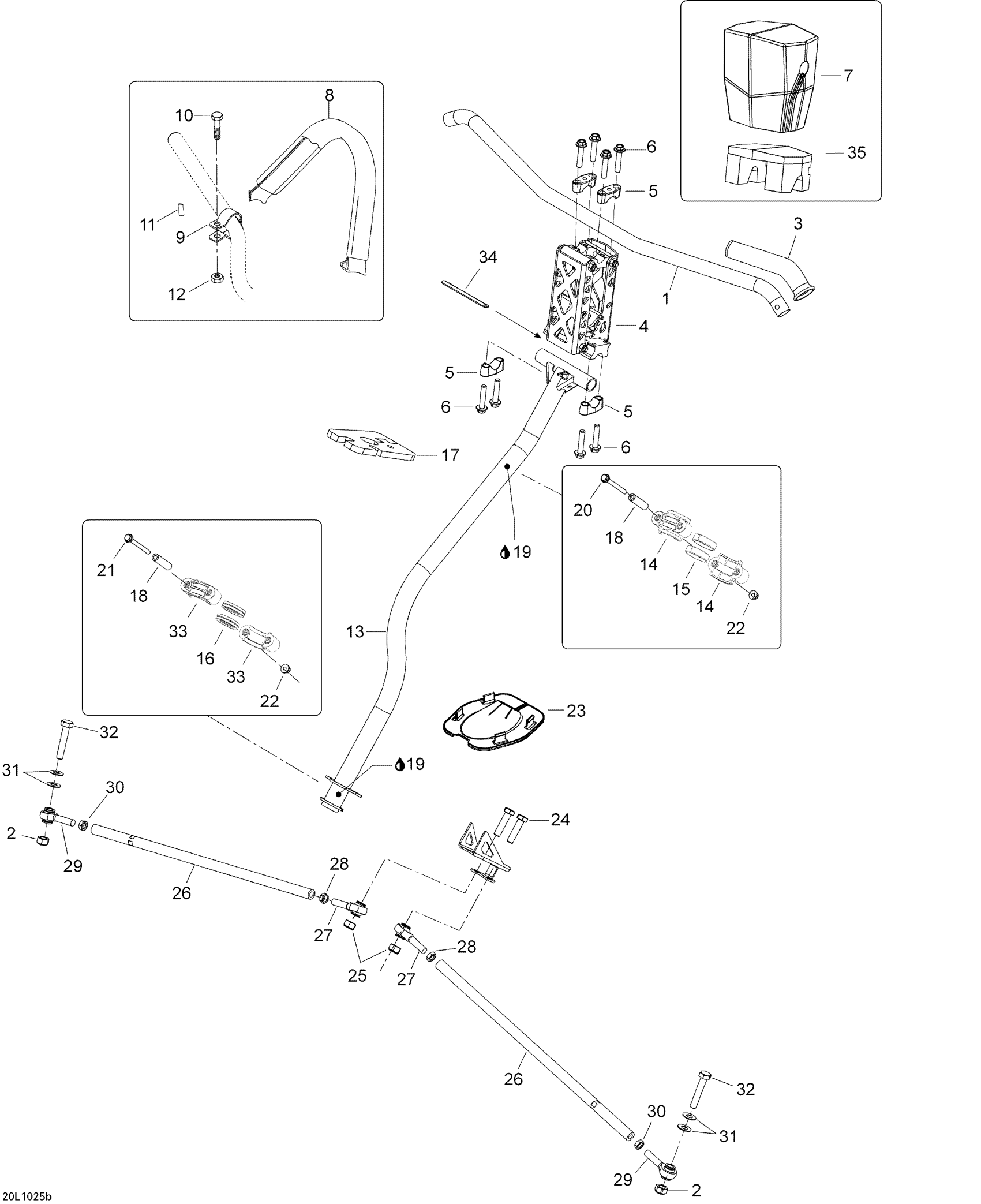

Ski-Doo Expedition TUV SE 1200 REV-XU, 2010 Steering SE Diagram

#

Description
Price

1

Handle Bar

506152722

$141.01

2

Elastic Stop Nut M10

232500416

$1.56

3

RH Grip 6-1/2"

506151530

Unavailable

4

Tilt Steering | Package SE

506152532

$261.16

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Hex. Flange Screw M8 x 40

250000285

$0.75

7

Steering Cover | Package SE

506152381

$154.99

8

Strap Ass'y | Package XMR

506152115

$41.76

9

Black Support Plate

506152536

$8.34

10

Hex. Flange Screw M6 X 20

207662084

$0.96

11

Bushing | Package XMR

506152156

$5.19

12

Hex. Flange Elastic Nut M6

233261494

$1.26

13

Steering Column

506152964

$183.55

14

Upper Half Housing

506152219

$1.63

15

Upper Vibration Ring

506152292

$0.70

16

Lower Vibration Ring

506152518

$4.39

17

Cushion

506152404

$24.60

18

Housing Bushing

506152297

$9.93

19

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

20

Hex. Flange Screw M6 X 70

207667056

$3.61

21

Hex. Flange Screw M6 X 70

207667056

$3.61

22

Elastic Flange Nut M6 X 1.0

233261416

$1.74

23

Plate

506152163

$9.93

24

Hex. Screw M10 X 40

207004044

$4.51

25

Elastic Stop Nut M10

232500416

$1.56

26

Tie-Rod

506152498

$35.79

27

LH Thread Ball Joint

506152081

$38.78

28

LH Threaded Hex. Jam Nut M10

250100016

$0.70

29

RH Threaded Ball Joint

506152019

$38.78

30

RH Threaded Hex. Jam Nut M10

732610010

$0.70

31

Washer

506152194

$4.28

32

Hex. Screw M10 X 55

207005544

$1.85

33

Lower Half-Housing

506152217

$5.40

34

Limiter Plate | Package SE

506152415

$81.31

35

FOAM - Call your local BRP dealership

506152400

Unavailable
