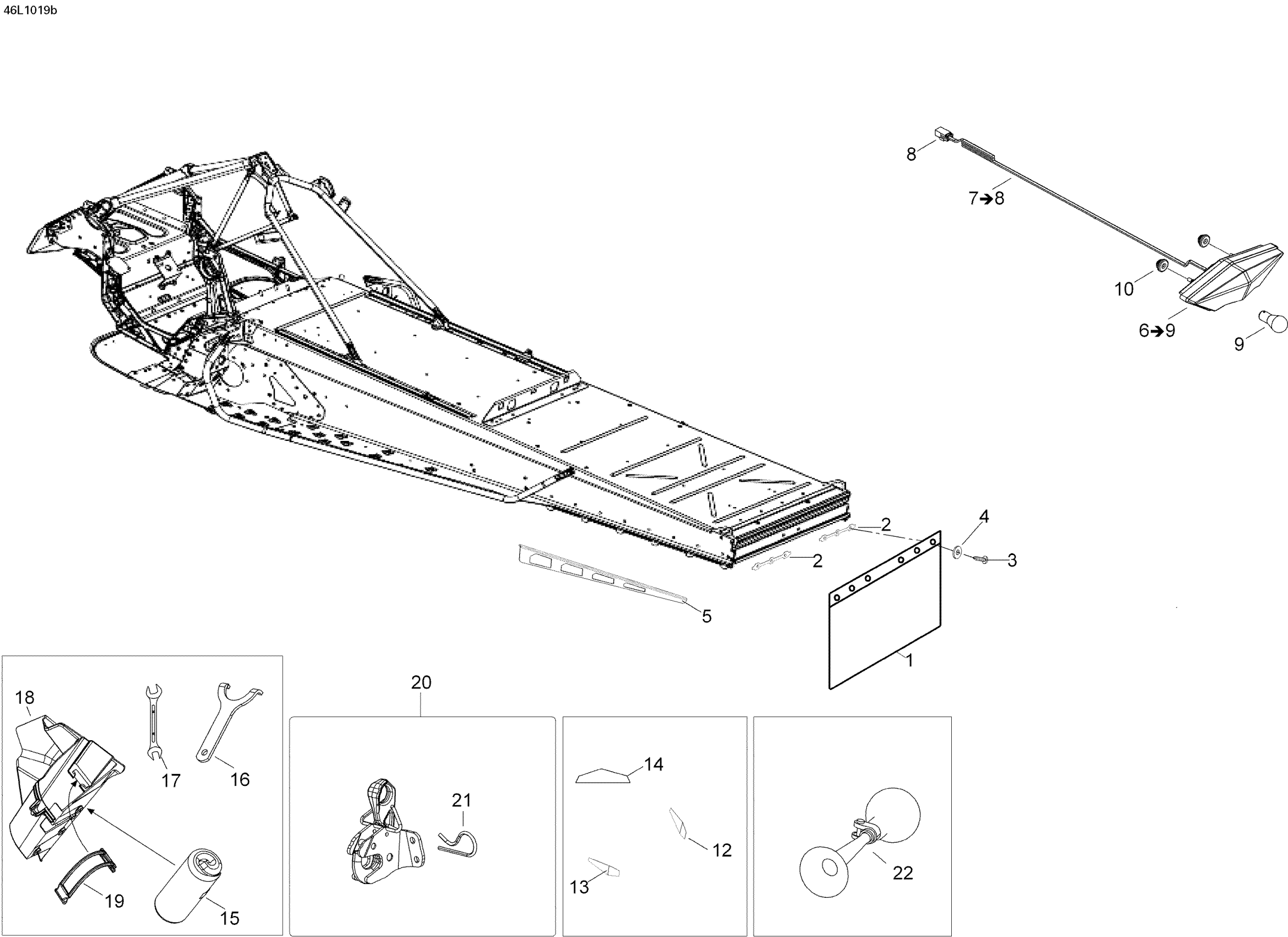

Ski-Doo Expedition TUV 600HO SDI XU, 2010 Utilities Europe Diagram

#

Description
Price

1

Snow guard This part replaces M538629.

538629

$98.99

2

THREADED PLATE - Call your local BRP dealership

520000847

Unavailable

3

Torx Screw M5 X 14

250000742

$1.20

4

Washer M5

250200025

$0.61

5

RH Protector

520000693

$53.99

5

LH Protector

520000694

$53.99

6

Rear Light | Includes 200 to 200a

520000848

$96.12

7

Rear Wiring Harness

520000849

$50.74

8

Male Housing, 3 Circuits

515175494

$15.35

9

Bulb

520000758

$7.49

10

Stopper Rubber

705014429

$6.09

12

Yellow, RH Reflector

520001600

$31.51

13

Yellow, LH Reflector

520001601

$31.51

14

Amber, Lateral Reflector

705002423

$13.28

15

Tool Kit | Includes 20 To 28

529000065

$57.99

16

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

19

Latch

520000528

$6.60

20

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.99

21

Hair pin

41029

$4.28

22

Horn

549011291

$35.35
