Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$439.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Roller

417222947

$21.99

9

Stopper Washer

417004302

$15.90

10

Pin

417222594

$14.99

11

Cotter Pin

250400060

$2.00

12

Lever Axle

417223164

$4.49

13

Spring Seat

417222312

$9.59

14

Tra Spring

414993000

$56.99

15

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

16

Bushing

417009204

$17.49

17

Loctite 609, 10 ml

413703100

$26.99

18

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

19

Lock Washer 8 mm

250200009

$2.11

20

Governor Cup

417223238

Unavailable

21

Ramp 600

417222444

$36.99

22

Spring Pin M10 X 22

250400050

$2.99

23

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

24

CALIBRATION SCREW - Call your local BRP dealership

417223197

Unavailable

25

Washer

417005600

$4.09

26

Hex. Flange Nut M6

233061414

$1.68

27

O-Ring

732401030

$0.98

28

Slider Shoe This part replaces 420460045.

417223021

$5.90

29

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

30

Torx Screw M8 X 16

250000751

$6.11

32

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

33

Spring Washer 14 mm

250200006

$6.99

34

Drive Pulley Bolt

417120000

$65.49

35

Fixed Flange Ass'y | Inclus 38 à 44

417127409

$459.99

36

Roller

417127189

$25.99

37

Pivot Stud

417127259

$21.99

38

Lock Washer 8 mm

250200009

$2.11

39

Circlip

414753500

$0.71

40

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

41

Circlip

293370049

$4.99

42

Cam Ass'y

417127411

$159.49

43

Circlip

293370049

$4.99

44

Spring, White

417127243

$43.49

45

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

46

Calibration Ass'y

415129604

$21.49

47

Phillips Screw M5 X 20

208652044

$1.47

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Elastic Stop Nut M5

232551414

$0.87

50

Washer

417127155

$8.26

51

Ball Bearing

504152574

$35.99

52

Loctite 609, 10 ml

413703100

$26.99

53

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

54

Drive Belt

417300551

$179.99

55

Belt Guard

417300357

$91.99

56

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

57

Reinforcement

417300380

$7.29

58

Avex Rivet

390909200

$0.30

59

Guide

417300381

$11.99

60

Side Protector

417300356

$14.76

61

Pop Rivet 3/16"

293150103

$0.55

62

Belt Guard Bracket

417300364

$29.99

63

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

64

Belt Guard Bracket | Except Package SWT

417300363

$14.49

65

Rivet Hucklok

293150163

$2.99

66

Hair Pin

114045200

$11.11

67

Protective Rubber

504153054

$17.49

68

PROTECTIVE RING - Call your local BRP dealership

504153034

Unavailable

69

COIL SUPPORT - Call your local BRP dealership

512060279

Unavailable

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

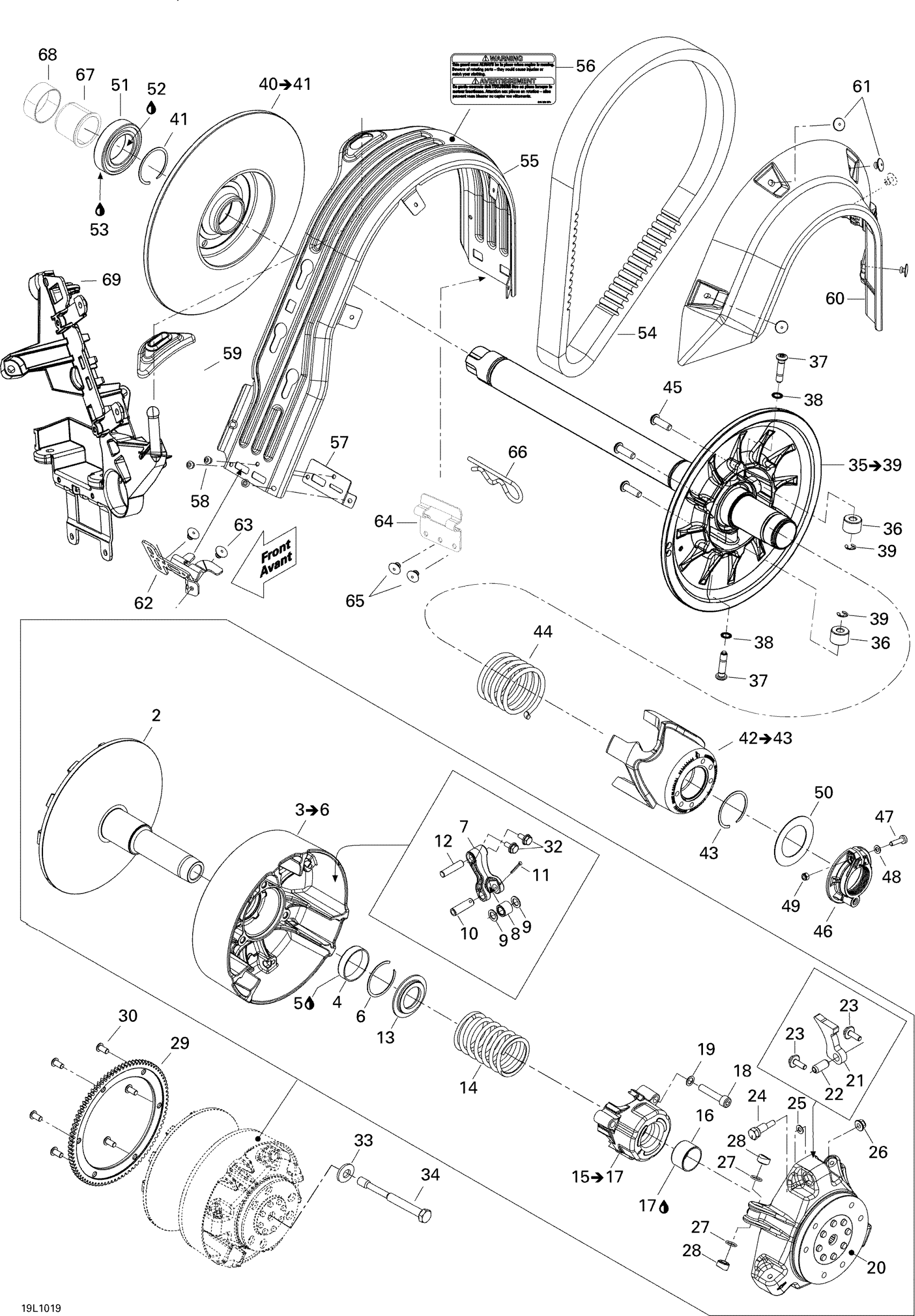

Ski-Doo Expedition TUV 600HO SDI XU, 2010 05- Pulley System Diagram
