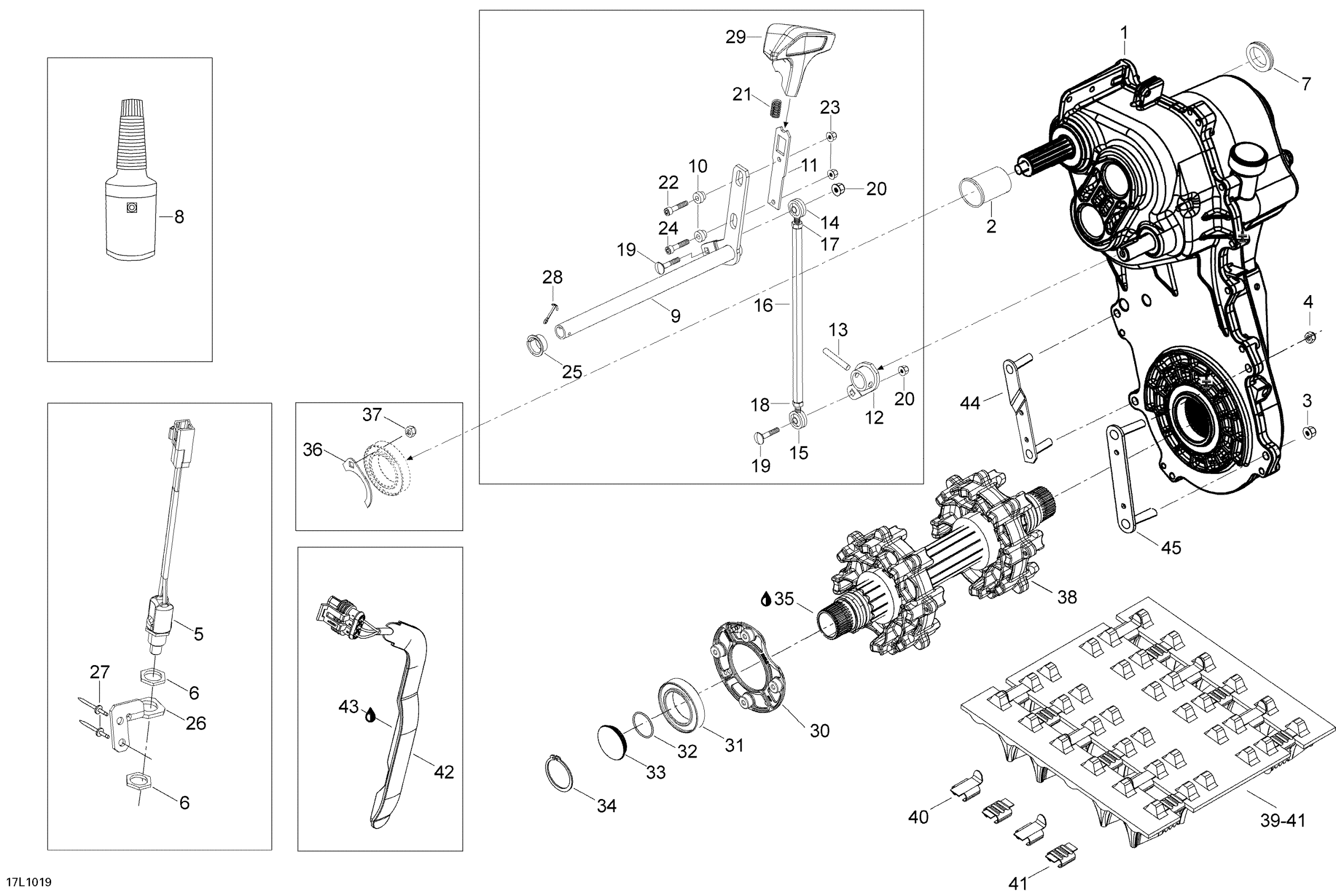

Ski-Doo Expedition TUV 600HO SDI XU, 2010 Drive System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Protective Rubber

504153054

$15.64

3

Hex. Flange Elastic Nut M8

233281414

$1.31

4

Hex. Elastic Stop Nut M8

232581414

$0.54

5

Switch Ass'y

515176472

$69.37

6

Brass Nut

250000373

Unavailable

7

RUBBER PLUG - Call your local BRP dealership

504152818

Unavailable

8

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

9

Lever Shifter

504153288

$140.27

10

Sleeve

504152787

$26.09

11

Shifter Arm

504153287

$50.72

12

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

13

Pin

41012

$5.06

14

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

15

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

16

ROD - Call your local BRP dealership

504152836

Unavailable

17

Hex. Nut M6

232061414

$0.51

18

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

19

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

20

Elastic Stop Nut M6

232561414

$1.78

21

Spring

504152882

$5.72

22

Socket Screw M5 X 25

205052544

$1.54

23

Flange Elastic Nut M5

233251434

$1.91

24

Forming Screw M5 x 16

250000676

$0.96

25

Bushing

504152890

$42.49

26

Sensor Bracket

504152902

$14.90

27

Rivet Hucklok

293150163

$2.73

28

Cotter Pin

250400035

$2.00

29

Handle

504152837

$73.85

30

Bearing Housing

507032437

$17.88

31

Ball Bearing

293350059

$29.82

32

O-Ring

293300122

$2.00

33

Magnetic Cap

504152619

$22.36

34

Circlip

504152572

$6.07

35

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

36

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.39

37

Hex. Elastic Stop Nut M8

232581414

$0.54

38

AXLE-DRIVE ASSY - Call your local BRP dealership This part replaces 504152910.

504153261

Unavailable

39

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1,249.99

40

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

41

CLEAT - Call your local BRP dealership

M5318322

Unavailable

42

Rotation Sensor

504152896

$34.30

43

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

44

Gearbox Front Plate

518326123

Unavailable

45

Gearbox Rear Plate

518326124

$14.81
