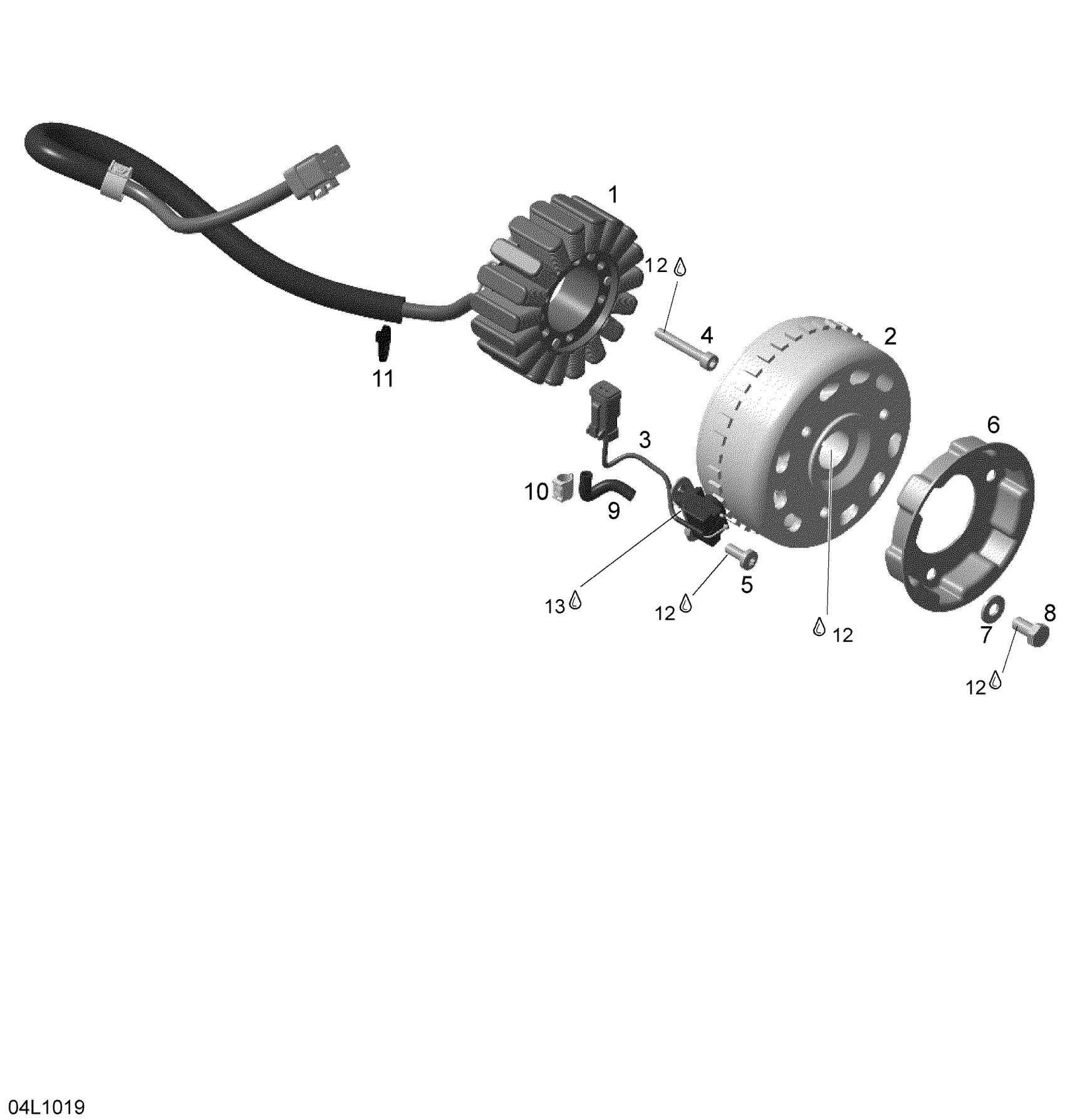

Ski-Doo Expedition TUV 600HO SDI XU, 2010 03- Magneto Diagram

#

Description

Price

1

STATOR ASS'Y - Call your local BRP dealership

420866068

Unavailable

2

FLYWHEEL - Call your local BRP dealership

420866041

Unavailable

3

PICK-UP ASS'Y - Call your local BRP dealership

410922963

Unavailable

4

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

$1.59

5

Torx Screw M6 X 16

420640324

$2.11

6

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

7

Flat Washer

420827405

$1.69

8

Hex. Screw M8 x 16

207181644

$1.15

9

TUBE - Call your local BRP dealership

420460012

Unavailable

10

CLIP - Call your local BRP dealership

420960890

Unavailable

11

Tie Rap

420866714

$1.90

12

Loctite 243, 10 ml

293800060

$21.49

13

Loctite 5910, 300 ml

293800081

$57.99
