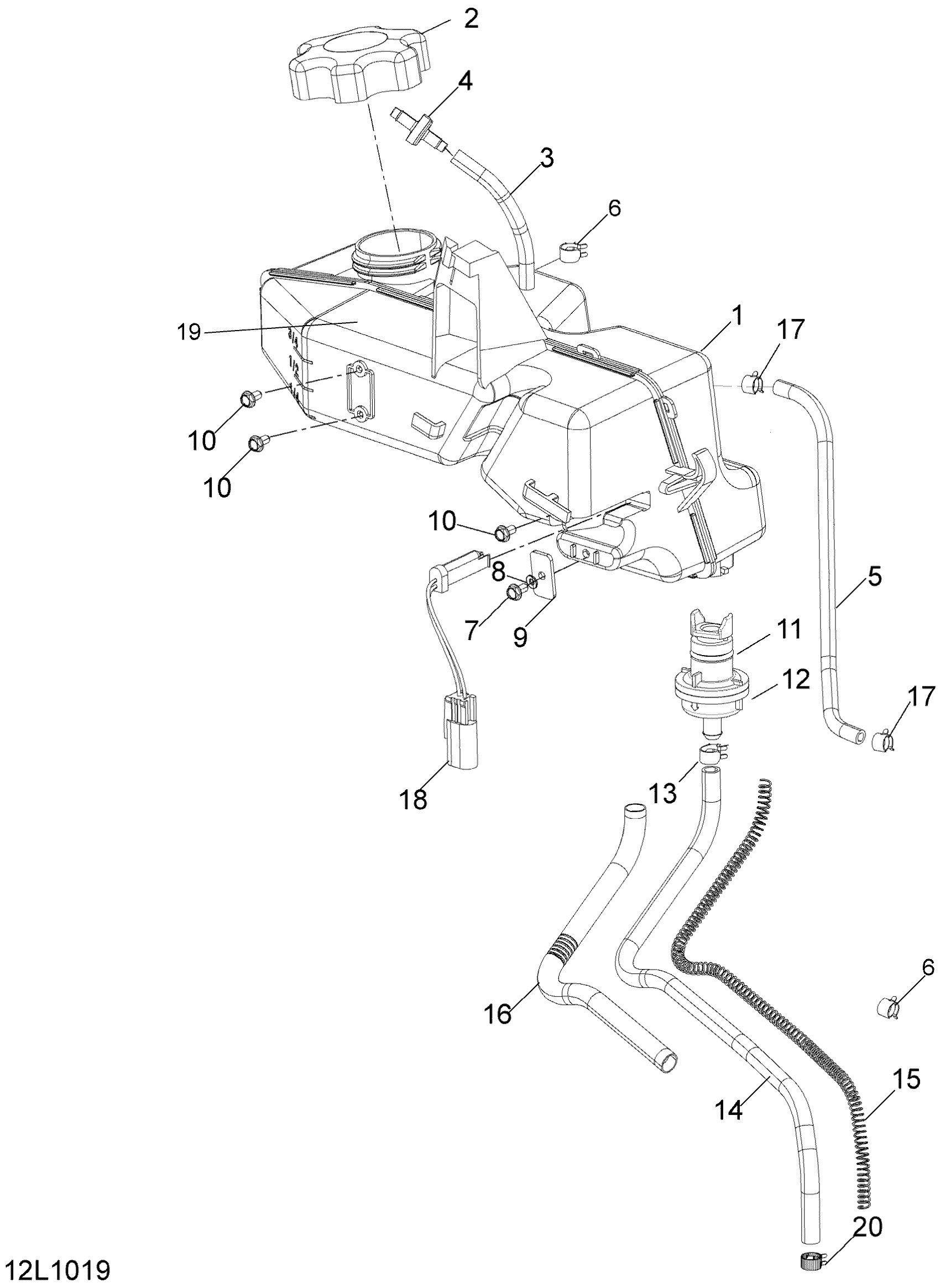

Ski-Doo Expedition TUV 600HO SDI XU, 2010 02- Oil System Diagram

#

Description
Price

1

Oil Tank

519000256

Unavailable

2

CAP - Call your local BRP dealership

519000194

Unavailable

3

Polyurethane Hose 10000Mm Long

219704410

$56.99

4

Check Valve

420660543

$29.99

5

Polyurethane Hose 10000Mm Long

219704410

$56.99

6

Oetiker Clamp

293650042

$3.09

7

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

8

Flat Washer

224061201

$1.37

9

Bracket

519000179

$10.49

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

11

Oil Filter

519000242

$13.77

12

Oil Filter

519000242

$13.77

13

Spring Clamp

414415200

$0.88

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

15

Spring

519000196

$9.69

16

Tubing 10 MM 1000MM Long

219704407

$2.79

17

Spring Clamp

414554800

$0.88

18

Oil Level Sensor

515176508

$31.99

19

NOTICE DECAL, OIL - Call your local BRP dealership

516005528

Unavailable

20

Spring Clamp

414420700

$0.72
