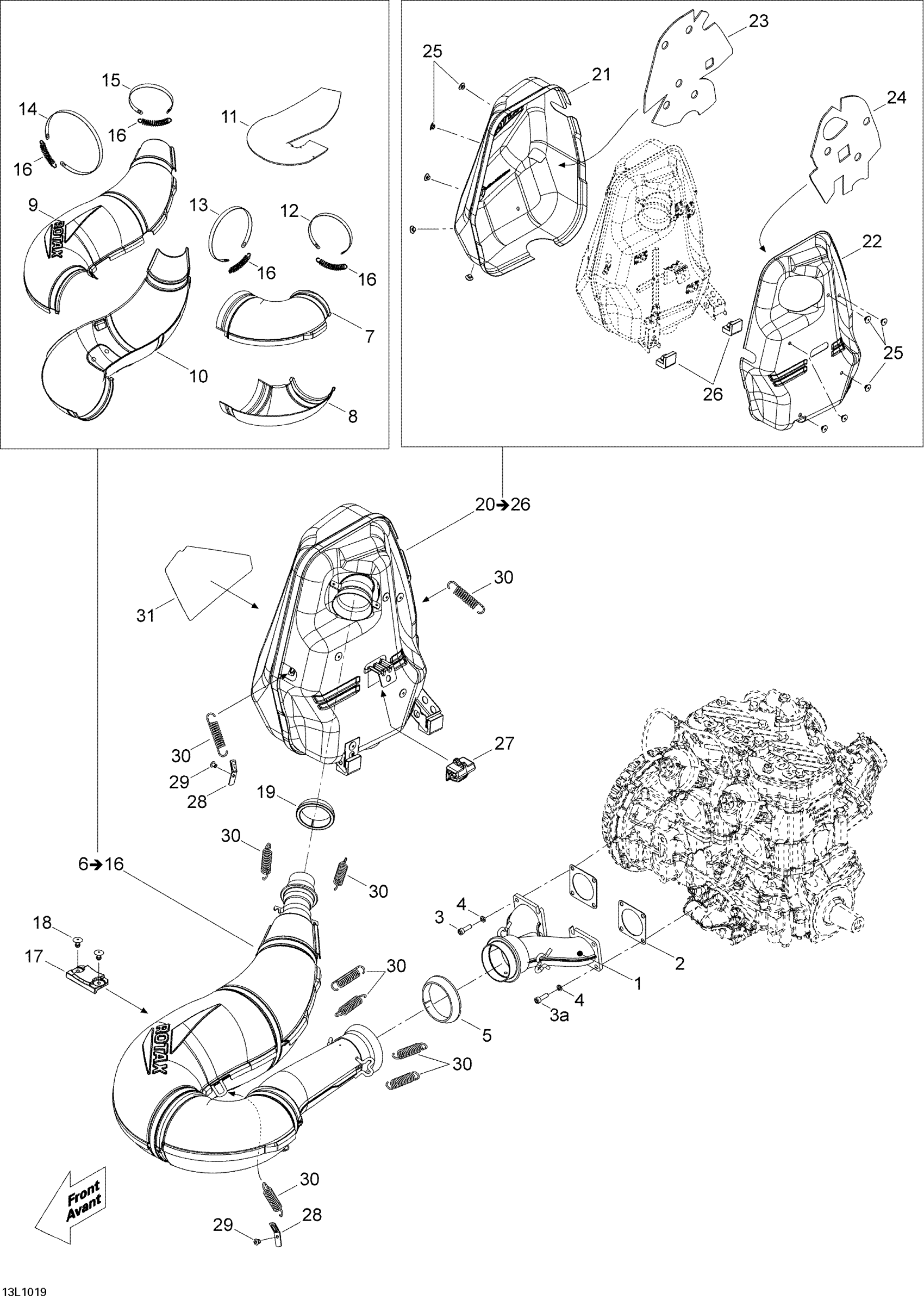

Ski-Doo Expedition TUV 600HO SDI XU, 2010 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$261.91

2

Gasket

420850552

$7.69

3

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

4

Washer

514053953

$0.73

5

Exhaust Gasket

514053487

$25.34

6

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 6 to 16

514054534

Unavailable

7

Front Upper Half Enveloppe

514054992

$37.28

8

Front Lower Half Enveloppe

514054993

$37.28

9

Rear Upper Half Enveloppe

514055039

$65.64

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$51.46

11

Insulating Wool

514054487

$18.63

12

Retaining Strap

514054408

$10.24

13

Retaining Strap

514054409

$10.24

14

Retaining Strap

514054410

$10.24

15

Retaining Strap

514053499

$8.10

16

Spring

514053643

$6.01

17

Bumper

514054275

$14.21

18

Pop Rivet 3/16"

293150103

$0.52

19

Exhaust Gasket

514053812

$24.60

20

Muffler Ass'y | Includes 400 to 400f

514055025

$698.48

21

RH Deflector

514054985

$52.96

22

LH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054202

Unavailable

23

RH INSULATING WOOL - Call your local BRP dealership

514054298

Unavailable

24

LH Insulating Wool

514054299

$18.63

25

Pop Rivet 3/16”

390910000

$0.55

26

Lower Stopper

514054529

$17.13

27

Upper Stopper

514054606

$17.13

28

Spring Bracket

514054522

$6.09

29

Pop Rivet 3/16"

390402200

$0.30

30

Spring

514054226

$6.01

31

Reflective Sheet

514054488

$11.28

32

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable
