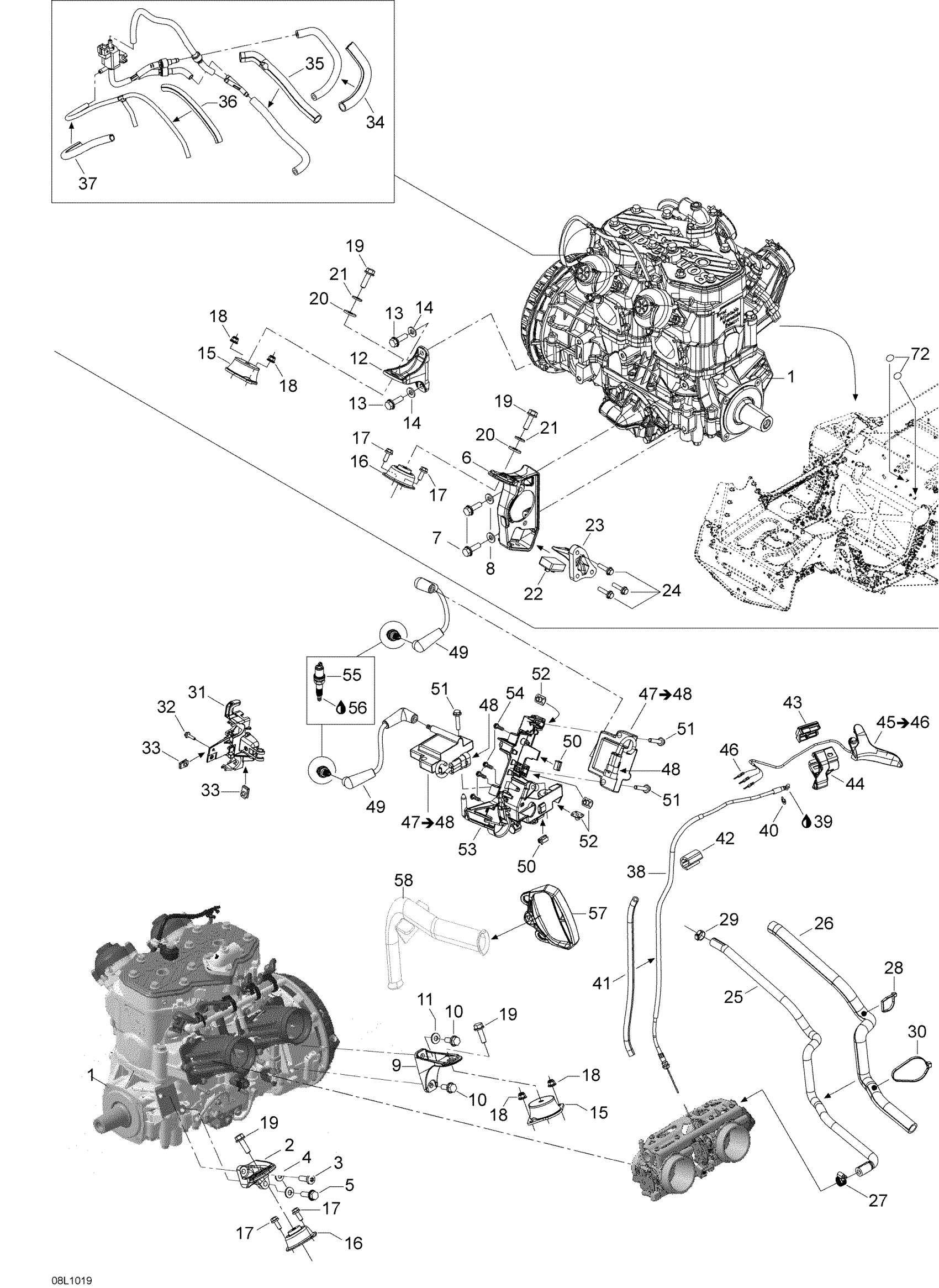

Ski-Doo Expedition TUV 600HO SDI XU, 2010 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine 593SDI

400604044

Unavailable

2

Rear Support, PTO

512060478

$31.99

3

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

4

Conical Spring Washer M8

234281474

$1.48

5

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

6

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

7

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

8

Conical Spring Washer M8

234281474

$1.48

9

Rear Support, MAG

512060559

$31.99

10

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

11

Conical Spring Washer M8

234281474

$1.48

12

Front Support, MAG

512060469

$31.99

13

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

14

Conical Spring Washer M8

234281474

$1.48

15

Rubber Mount

512060729

$65.99

16

Rubber Mount

512060387

$46.99

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

20

Yellow, Washer

503183200

$3.19

21

Conical Spring Washer M8

234281474

$1.48

22

STOPPER - Call your local BRP dealership

512060488

Unavailable

23

Stopper Support

512060576

$29.49

24

Hex. Flange Screw M6 X 25

207562544

$1.69

25

FORMED HOSE - Call your local BRP dealership

509000601

Unavailable

26

Tubing 16 Mm 1000Mm Long

219704408

$7.49

27

Tridon Gear Clamp

293650172

$3.09

28

Tie-Rap 180 mm

414115200

$0.11

29

Crimp Clamp

293650053

$3.09

30

Tie-Rap 180 mm

414115200

$0.11

31

Solenoid Support

512060298

$14.22

32

Hex.Flange Screw M5 X 20

207652044

$1.90

33

Panel Nut M5 X 0.8

250000958

$4.23

34

Was 409901800 Tubing (13 mm)

219704400

$14.49

35

Was 409901800 Tubing (13 mm)

219704400

$14.49

36

Was 409901700 Tubing (9 mm)

219704399

$84.99

37

Tubing 10 MM 1000MM Long

219704407

$2.79

38

THROTTLE CABLE - Call your local BRP dealership

512060086

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

40

Circlip

414274500

$0.90

41

Tubing 6 Mm 3000Mm Long

219704425

$13.75

42

Tubing 10 MM 1000MM Long

219704407

$2.79

43

Upper Housing Ass'y

512060198

Unavailable

44

Lower Housing

512060860

$17.53

45

Handle Ass'y

512061250

$124.99

46

Male Terminal

515175232

$1.58

47

Ignition Coil

278001546

$158.99

48

Housing

710000568

$11.12

49

SPARK PLUG CABLE, 190 MM - Call your local BRP dealership

420664302

$67.99

50

Clip

710000992

$4.29

51

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.11

52

Nut Welded, M6

293100003

$9.12

53

COIL SUPPORT - Call your local BRP dealership

512060279

Unavailable

54

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

55

Spark Plug NGK BR8ECS

512060029

$10.59

56

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

57

Starter Grip

512060136

$14.83

58

Tubing

512060451

$47.99
