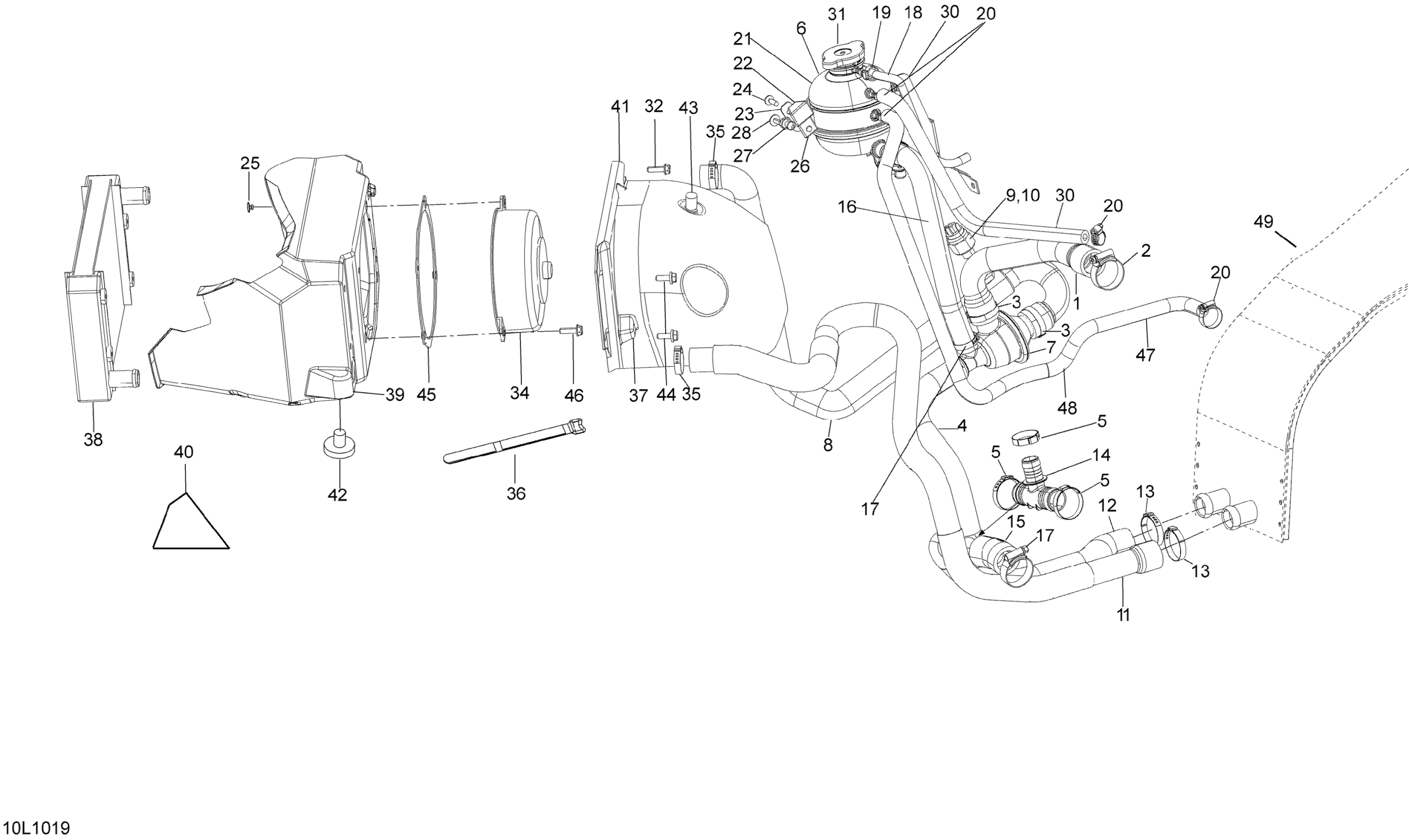

Ski-Doo Expedition TUV 600HO SDI XU, 2010 Cooling System Diagram

#

Description
Price

1

HOSE OUTLET - Call your local BRP dealership

509000522

Unavailable

2

Aba Gear Clamp, 26-38 MM

509000443

$5.64

3

Oetiker Gear Clamp

509000181

$4.15

4

Bypass Hose

509000523

$58.18

5

Crimp Clamp

293650099

$4.07

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Thermostat Housing

509000499

$38.78

8

RADIATOR HOSE - Call your local BRP dealership

509000653

Unavailable

9

SWITCH - Call your local BRP dealership

509000480

Unavailable

10

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

11

Air Radiator Hose

509000588

$58.18

12

Return Radiator Hose

509000589

$43.25

13

Oetiker Gear Clamp 36.1MM

509000045

$4.07

14

T-Fitting

509000372

$9.03

15

Engine Inlet Hose This part replaces 509000675.

509001067

$16.39

16

HOSE FILLING - Call your local BRP dealership

509000655

Unavailable

17

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

18

BREATHER HOSE - Call your local BRP dealership

509000598

Unavailable

19

Tridon Gear Clamp

293650170

$2.00

20

Crimp Clamp

293650053

$2.78

21

Coolant Tank

509000368

$84.30

22

Reservoir support

509000852

$64.15

23

Support

509000608

$29.07

24

Forming Screw M5 x 16

250000676

$0.96

25

Rivet

36005

$1.96

26

Support

509000609

$22.36

27

Knob

517303439

$4.28

28

Torx Screw K50 X 16

250000720

$1.60

30

Hose 6 Mm 15000Mm Long

219704360

$120.12

31

Pressure Cap

509000187

$26.84

32

Socket Screw | Not Shown

205061244

$2.00

34

Fan

509000837

$188.03

35

CLIP - Call your local BRP dealership

M27011

Unavailable

36

Velcro Strip

508000820

$7.13

37

Bumper

508000572

Unavailable

38

Radiator

509000488

$320.87

39

Cooling Fan Shroud

509001173

$24.60

40

Foam

509000615

$24.60

41

Deflector

509001174

$18.63

42

Rubber Bumper

570044700

$10.24

43

Clip

710000992

$3.88

44

Hex. Flange Screw M6 X 12

207661244

$1.96

45

Screw plate

509000614

$23.10

46

Hex. Flange Screw M6 X 20

210262040

$2.00

47

FORMED HOSE - Call your local BRP dealership

509000601

Unavailable

48

Tubing 16 Mm 1000Mm Long

219704408

$7.15

49

Radiator

509000975

$779.07
