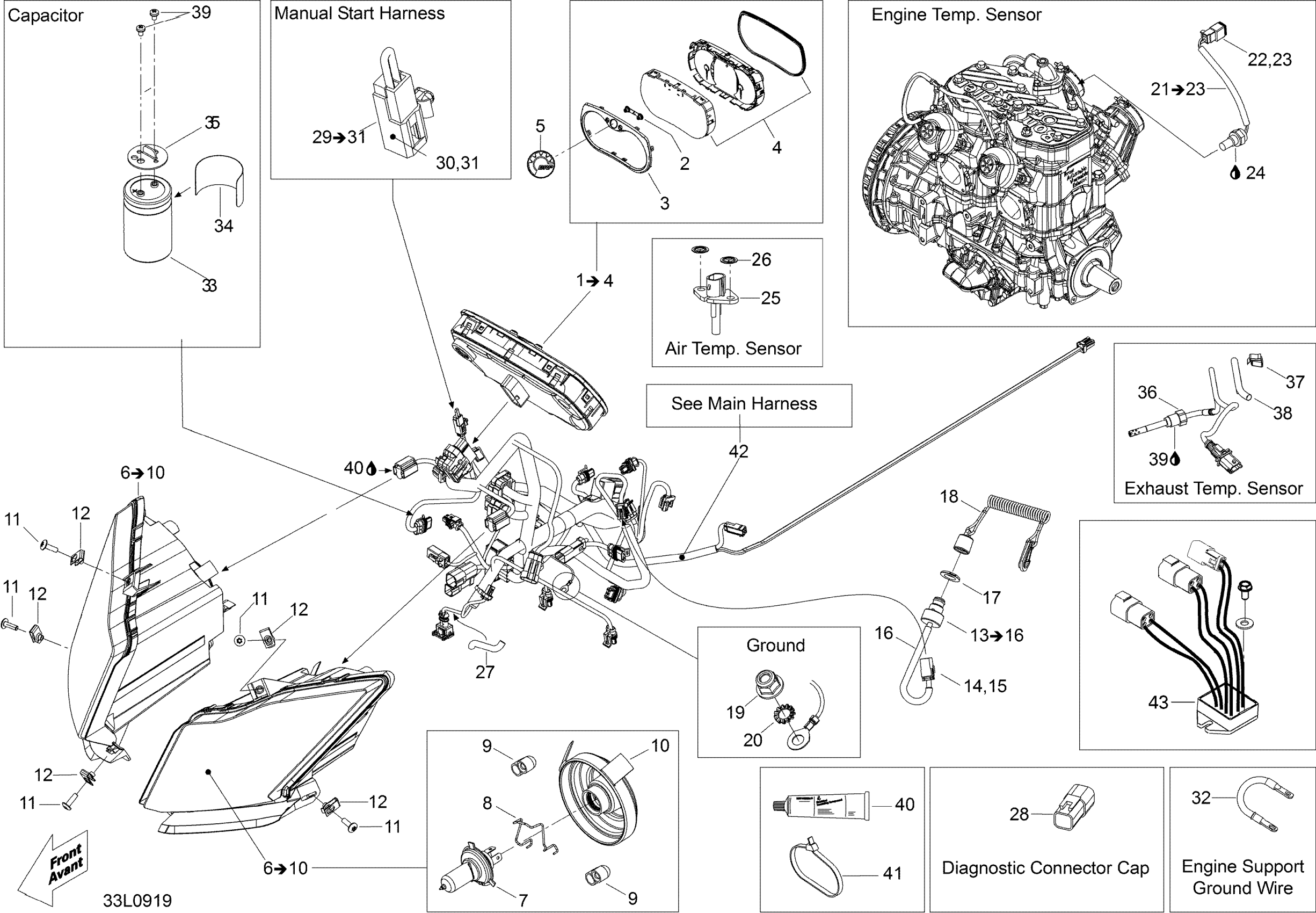

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 10- Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129370

$11.49

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

$12.99

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

DESS Switch

515177249

$114.99

14

Male Terminal

515175232

$1.58

15

Male Housing, 3 Circuits

515175494

$16.18

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$3.28

18

DESS

515178284

$84.99

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

External Serrated Lock Washer 6 mm

234461608

$1.15

21

Temperature Sensor This part replaces 420664508.

420664509

$149.99

22

Female Terminal Housing, 2 Circuits

515175670

$8.39

23

Female Terminal

278000632

$2.09

24

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

25

Air Temperature Sensor

515176366

$19.99

26

Push Nut

389804300

$0.53

27

Tubing 6 Mm 3000Mm Long

219704425

$13.75

28

Diagnostic Connector

278002704

$19.49

29

MANUAL START HARNESS - Call your local BRP dealership | Includes 29 to 31

515176661

Unavailable

30

Male Terminal

515175232

$1.58

31

Male Housing, 2 Circuits

710000667

$8.32

32

Ground Wire

515176358

$27.99

33

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

39

SCREW 10-32 X 5/16 - Call your local BRP dealership

515176542

Unavailable

34

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

35

Cap

515177193

$4.69

36

Temperature Sensor

514054641

$219.99

37

Clip

414227300

$1.67

38

Tubing 6 Mm 3000Mm Long

219704425

$13.75

39

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

41

Tie Wrap 142 mm

293750002

$1.25

41

Tie-Rap 180 mm

414115200

$0.11

41

Tie Wrap 368 mm

293750008

$1.04

42

WIRING HARNESS MAIN - Call your local BRP dealership

515176657

Unavailable

43

Voltage Regulator | Includes 32 to 38

515176243

$359.99
