Description

Price

1

SNOW GUARD - Call your local BRP dealership | EU

520000857

$47.99

1

Snow guard This part replaces M538629.

538629

$95.99

2

THREADED PLATE - Call your local BRP dealership

520000847

Unavailable

3

Torx Screw M5 X 14

250000742

$1.47

4

BRP Logo 48mm

516008738

$16.99

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rear Light | Includes 200 to 200a

520000848

$99.49

7

Rear Wiring Harness

520000849

$53.99

8

Male Housing, 3 Circuits

515175494

$16.18

9

Bulb

520000758

$9.10

10

Stopper Rubber

705014429

$5.95

11

Radiator Trim

520000829

$21.99

11

HITCH ASS'Y - Call your local BRP dealership

5344156

$79.99

12

Yellow, RH Reflector

520001600

$33.99

13

Yellow, LH Reflector

520001601

$33.99

14

Amber, Lateral Reflector

705002423

$15.49

14

Red, Lateral Reflector

705003412

$15.49

15

Tool Kit | Includes 20 To 28

529000065

$55.99

16

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

19

Latch

520000528

$7.69

20

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

21

Plate

520000727

$36.99

22

Plate | NA

520000728

Unavailable

23

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

24

Bolt Carriage M8 X 40

207784044

$1.15

25

Hex. Flange Elastic Nut M8

233281414

$1.47

26

HITCH ASS'Y - Call your local BRP dealership

5344156

$79.99

27

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$82.99

28

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

29

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

30

Cotter Pin

41031

$7.65

31

Lock | EU

5440767

Unavailable

32

Pin

41012

$6.39

33

Hair pin

41029

$4.44

34

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

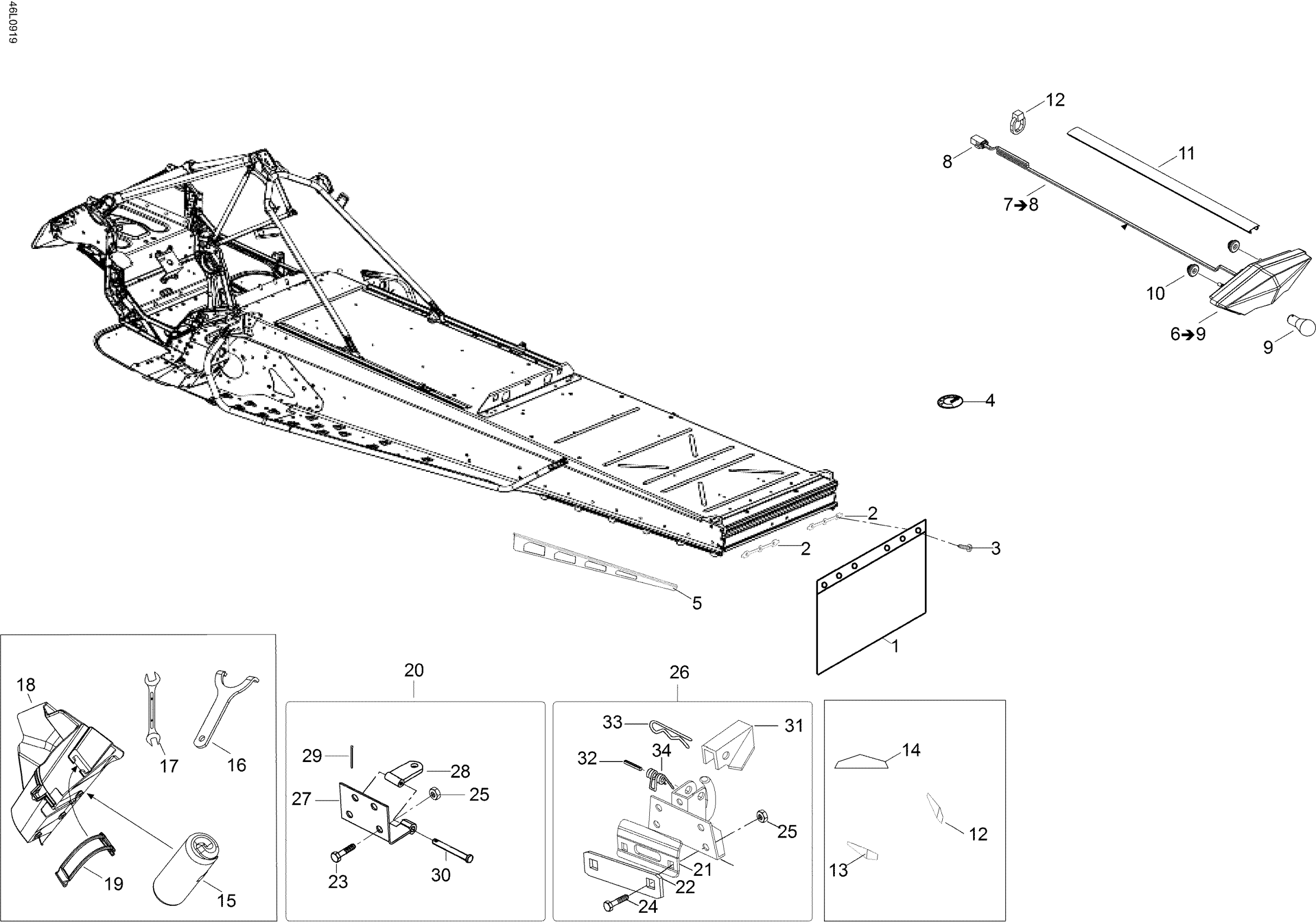

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 09- Utilities Diagram
