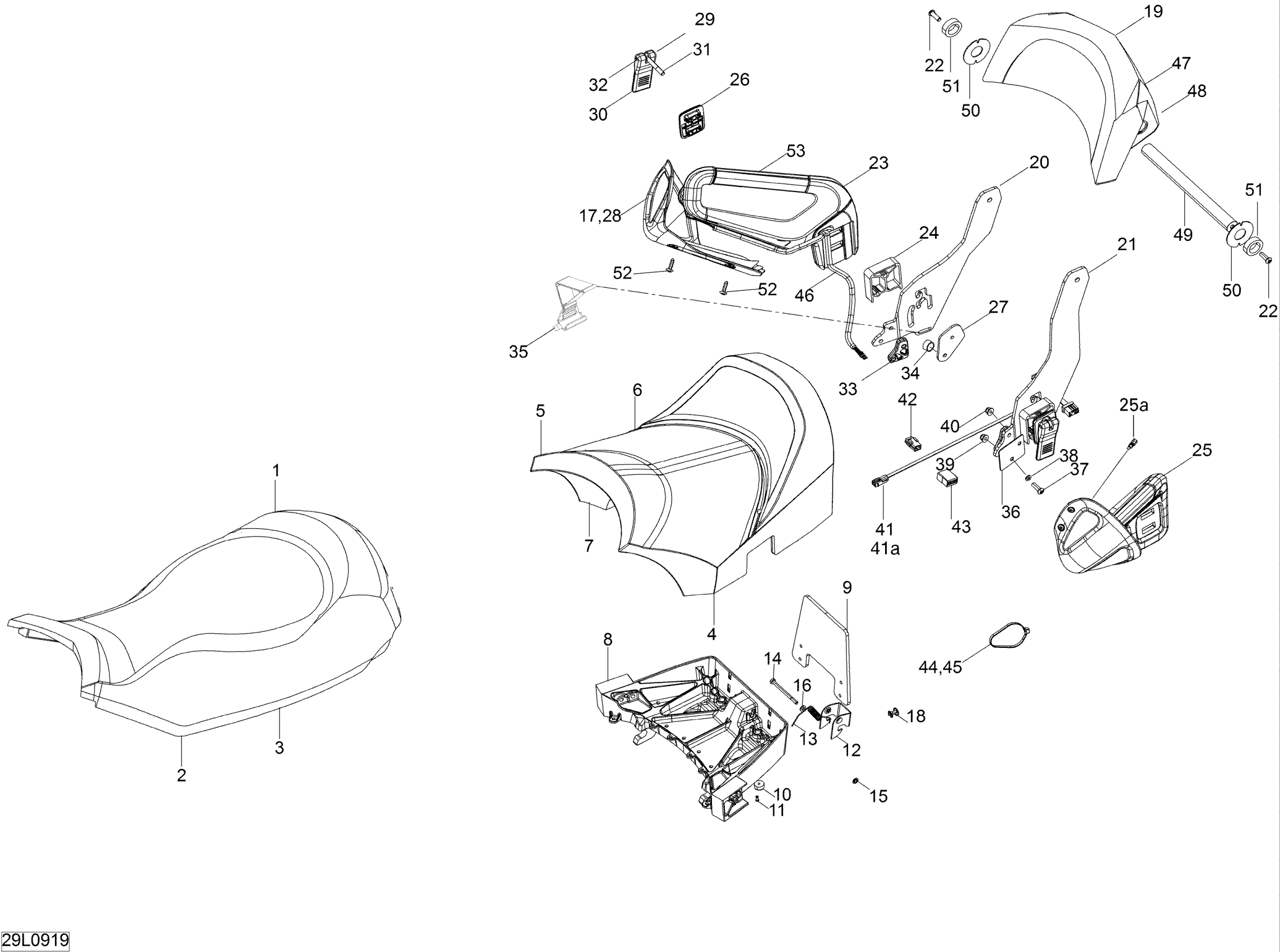

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 Seat Diagram

#

Description
Price

1

Seat Ass'y, Black

510005135

Unavailable

2

Front Seat Foam | Model-550F

510005807

$424.58

3

Front Seat Cover, XU

510004869

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Seat Base

510004816

$90.74

6

Seat Cover

510004872

Unavailable

7

Rear Seat Foam | Model-550F

510005811

$379.97

8

Seat Base

510004816

$90.74

9

Backrest Plate

510004817

Unavailable

10

Black, Dart

414644300

$0.78

11

Rivet | Model-T3

293150067

$2.29

12

Latch, Black

708000144

$11.09

13

Spring

708000369

$8.60

14

Hex. Screw M6 X 80

207068044

$3.39

15

Push Nut

732610072

$1.72

16

Flat Washer 6 mm

234061410

$1.04

17

RH Deflector

510004415

$26.12

18

Rivet This part replaces M36087.

36087

$1.02

19

Foam Ass'y

510005149

Unavailable

20

RH ARM - Call your local BRP dealership

510004988

Unavailable

21

LH ARM - Call your local BRP dealership

510004989

Unavailable

22

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

23

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

24

Adapter

510004939

$14.09

25

LH Handle

510005862

$120.74

25a

Rocker Switch

510004413

$8.57

26

Passenger Handle Trim

510006602

$11.71

27

Counter Plate

510004990

$29.97

28

Hex Forming Screw DIN.7500D

250000376

$7.31

28

LH Deflector

510004416

$26.12

29

Lock Ass'y | Includes 54 to 57

510004992

$34.58

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

ADAPTER - Call your local BRP dealership

510005151

Unavailable

34

SLEEVE - Call your local BRP dealership

510005042

Unavailable

35

Security Lock

510005139

$55.35

36

COVER PLATE - Call your local BRP dealership

510004995

$10.65

37

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

38

Flat Washer 8 mm

234081410

$0.69

39

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Cover | Model-T3

28056

$5.52

41

SEAT HARNESS - Call your local BRP dealership

515176747

Unavailable

41a

SEAT PLUG HARNESS - Call your local BRP dealership

515176748

Unavailable

42

Male Housing, 3 Circuits

515175494

$15.35

43

Male Terminal Housing, 8 Circuits

515175817

$8.57

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Tie-Rap 180 mm

414115200

$0.09

46

Was 515175506 Tubing

219704426

$136.12

47

FOAM BACKREST - Call your local BRP dealership

510005833

Unavailable

48

Cover Backrest

510004987

Unavailable

49

BACKREST AXLE - Call your local BRP dealership

510004843

Unavailable

50

WASHER - Call your local BRP dealership

605355358

Unavailable

51

Rubber Shim

510004378

$8.62

52

Screw 25MM

250000961

$2.38

53

Heater

515176393

$59.20
