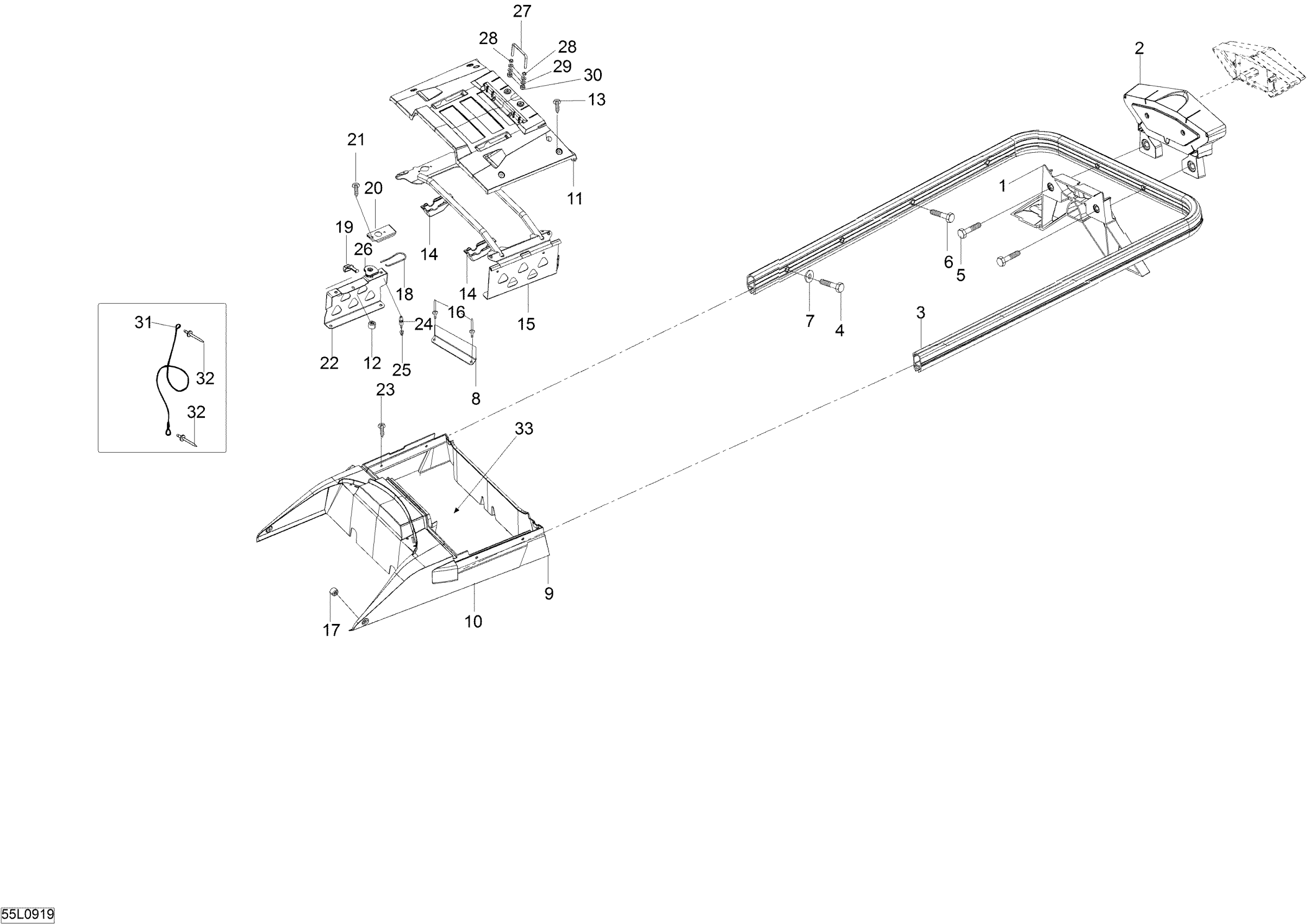

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 09- Luggage Rack Diagram

#

Description
Price

1

Rear Light Support

511000559

$63.99

2

Rear Light Cover

511000764

$38.99

3

Black, Rear Bumper | WT

511000563

$132.49

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

5

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

207663534

Unavailable

6

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

7

Flat Washer 6 mm

234062410

$0.77

8

Cable Support Plate

510005156

$19.49

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Storage Box

510006243

$234.99

11

Storage Box Cover

510006244

$38.99

12

Bushing

510005147

$12.99

13

Screw M6 X 12

250000389

Unavailable

14

Cover

510004999

$18.99

15

Lock tube

510005714

$429.99

16

Pop Rivet 3/16"

390402200

$0.35

17

Plug

605452114

$9.19

18

Latch Spring

269700017

$9.19

19

Puller

510005072

$21.99

20

Lock Pin Cover

510005698

$20.49

21

Forming Screw M5 x 16

250000676

$1.01

22

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

23

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

24

LOCK PIN - Call your local BRP dealership

605452035

$24.99

25

Elastic Flange Nut M6 X 1.0

233261416

$2.11

26

Lock Pin Guide

510005044

$15.80

27

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

28

Hex. Nut M6

250000135

$0.51

29

Washer

20117

$6.39

30

Elastic Stop Nut M6

232561414

$0.55

31

Seat Retainer Cable

293750070

$12.99

32

Pop Rivet 3/16"

390402200

$0.35

33

Foam

510005043

$69.99
