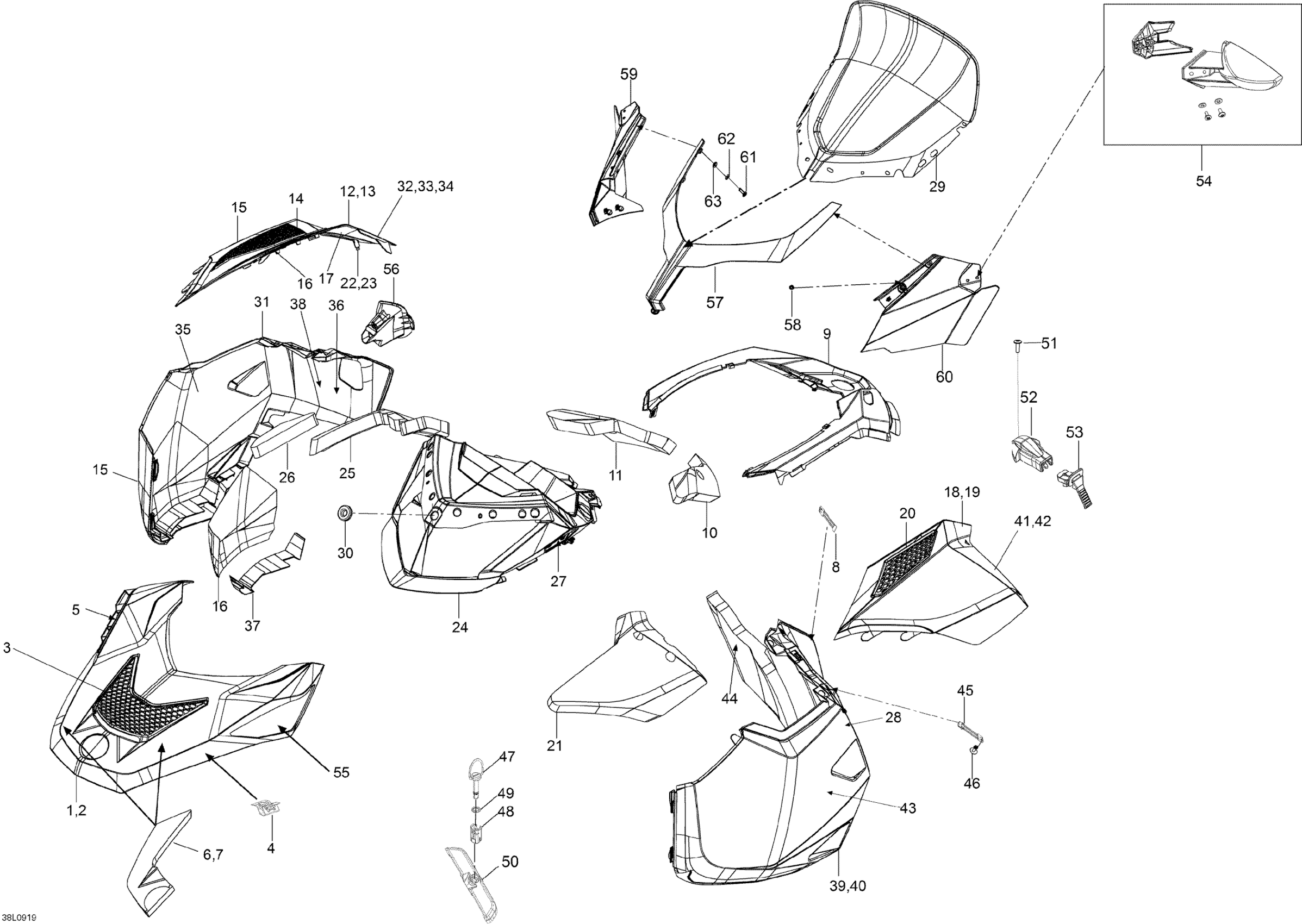

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 Hood Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Black, Hood

517304812

$319.99

3

Hood Grille

517304843

$82.28

4

Edge Clip

517302785

$0.70

5

Scoop Grille

517306980

$34.58

6

Insulator

517304330

$34.58

7

Insulator

517304214

$29.97

8

Latch Pannel

517304289

$9.91

9

Console

517304819

$149.99

10

INSULATOR - Call your local BRP dealership

517304317

Unavailable

11

Insulator

517304318

$49.20

12

Black RH Side Access Panel | NTC_HB-160

517304193

Unavailable

13

Black RH Side Access Panel | NTC_HB-160

517304193

Unavailable

14

RH Access Panel Grille

517304015

$33.82

15

RH Lower Acces Grille

517304016

$29.20

16

Insulator

517304311

$63.05

17

Insulator

517304312

$29.97

18

Black LH Side Access Panel | NTC_HB-160

517304191

Unavailable

19

Black LH Side Access Panel | NTC_HB-160

517304191

Unavailable

20

LH Access Panel Grille

517303893

$33.82

21

Insulator

517304313

$63.05

22

ADAPTER - Call your local BRP dealership

517304295

Unavailable

23

Torx Screw K50 X 16

250000720

$1.39

24

Indicator Support

517304272

$169.20

25

Insulator

517304314

$63.82

26

Insulator

517304315

$29.97

27

Insulator

517304316

$29.97

28

Insulator

517304319

$29.97

29

Windshield Ass'y

860201000

$213.82

30

Grommet

517303756

$3.15

31

RH Side Panel | NTC_600SDI

517304184

Unavailable

32

Pop Rivet 3/16”

293150108

$1.23

33

Screw M4 X 16

250000725

$2.87

34

Washer

517124300

$0.16

35

RH Foam

517303890

$54.58

36

RH Rear Foam

517304310

$62.28

37

Aluminium Foil

517304215

$18.43

38

Aluminium Foil

517304216

$20.74

39

LH Side Panel Ass.

517303851

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Bushing | Package XMR

506152156

$5.35

42

Washer

517124300

$0.16

43

LH Foam

517303891

$53.05

44

LH Rear Foam

517304309

$62.28

45

Latch Panel

517304290

$9.31

46

Pop Rivet 3/16”

293150108

$1.23

47

Handle Fastener Quarter-Turn

517304297

$14.62

48

Quarter-Turn Handle

517304296

$14.62

49

LOCKING PLATE - Call your local BRP dealership

517304298

Unavailable

50

SIDE PANEL SUPPORT - Call your local BRP dealership

517304294

Unavailable

51

Rivet

36005

$2.02

52

Black Latch Kit | Includes 390 to 400

860200239

$16.12

53

Panel Latch

517303981

$10.00

54

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$71.51

55

Air Filter

508000609

$46.12

56

Black, RH Console | Includes 400 to 400b

517304322

$33.82

57

Windshield Support Kit

860200230

$35.99

58

Push Nut

732610072

$1.72

59

RH Console Air Deflector

517303745

$43.05

60

LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303746

Unavailable

61

Torx Screw K50 X 16

250000720

$1.39

62

Washer M5

250200025

$0.61

63

Rubber Washer 5 mm

250200024

$1.77
