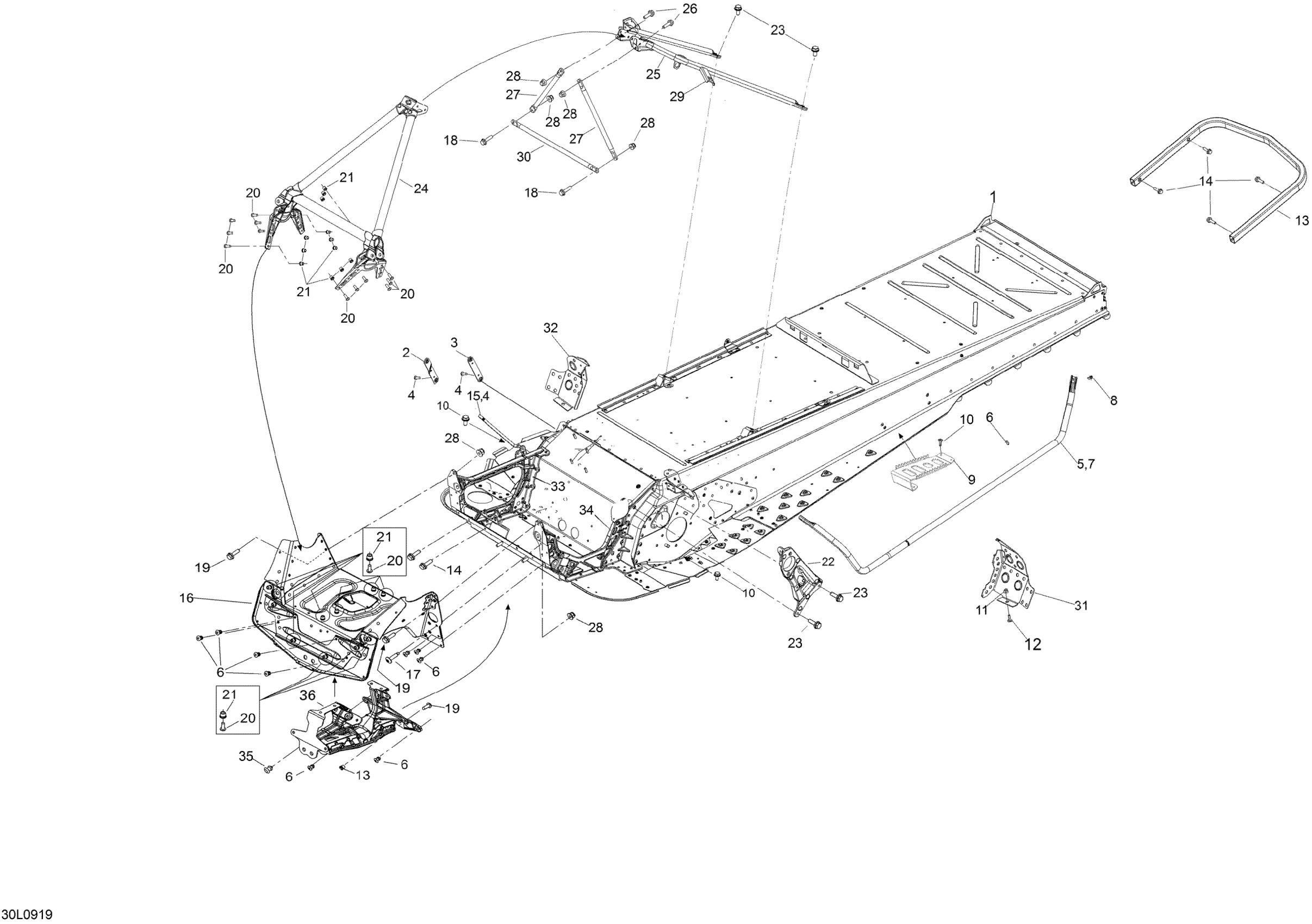

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 09- Frame Diagram

#

Description
Price

1

Frame

518326073

Unavailable

2

Gearbox Front Plate

518326123

$17.49

3

Gearbox Rear Plate

518326124

$17.99

4

Pop Rivet 3/16"

390402200

$0.35

5

LH Footboard Support Tube

518326963

$139.99

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

RH Footboard Support Tube

518326964

$139.99

8

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

9

FOOTREST - Call your local BRP dealership

605354068

Unavailable

10

Hex. Flange Screw M6 X 20

207662044

$2.00

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Torx Screw M6 X 20

250000722

$1.68

13

Black, Rear Bumper | WT

511000563

$132.49

14

Hex. Flange Screw M6 X 16

207661644

$0.74

15

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

16

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

17

Hexagonal Head Screw

210262050

$2.11

18

Hex. Flange Screw M6 X 25

207662544

$0.64

19

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

20

Hex. Flange Screw M6 X 20

207662044

$2.00

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

23

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

24

Front Member

518326970

$299.99

25

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

$199.99

26

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

27

Upper Lateral Column Support

518325114

$22.49

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Clip

414227300

$1.67

30

Center Column Support

518325115

$22.49

31

TOE HOOK LH - Call your local BRP dealership

518325528

Unavailable

32

RH Footrest

518325529

Unavailable

33

RH Member

518326795

$284.99

34

LH Member

518326796

$229.99

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Front Suspension Support

518327487

$289.99
