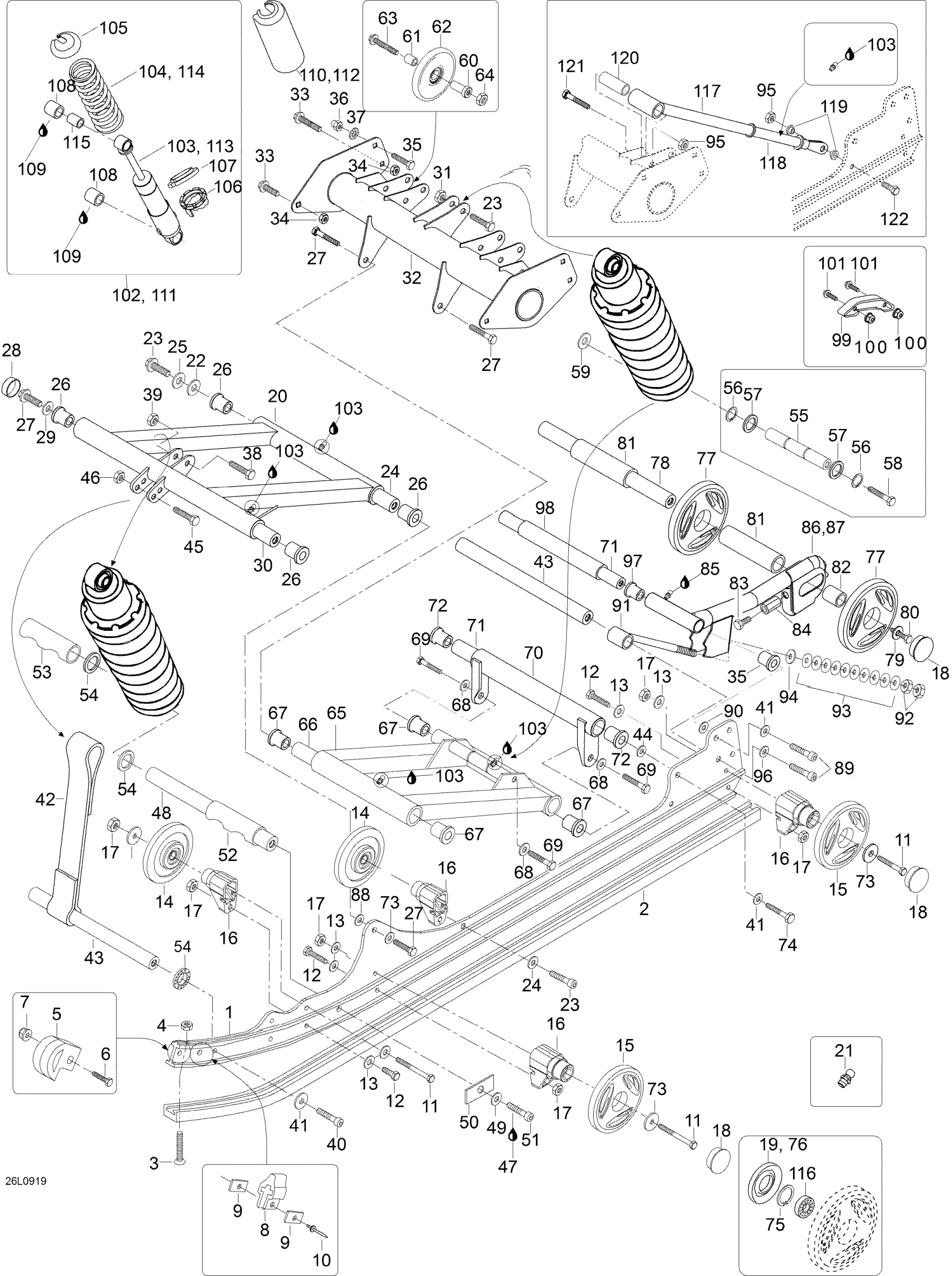

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 08- Rear Suspension Diagram

#

Description
Price

1

RAIL_SUSPENSION - Call your local BRP dealership

503191837

Unavailable

2

Slider Shoe

503192021

$29.49

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Rubber Stopper

503192106

$12.99

9

Washer

503191273

$1.35

10

Pop Rivet 3/16"

293150142

$2.29

11

Hex. Flange Screw M6 X 70

207667044

$0.85

12

Hex. Flange Screw M6 X 25

207662544

$0.64

13

Wheel Cup M6

503191820

$4.99

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Wheel 141 With Pattern Ass'y, Yellow

503191312

$37.99

16

Casted Support

503193894

$16.49

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Wheel Cap

570063600

$3.49

19

Labyrinth Seal

503190434

$6.09

20

Front arm - Call your local BRP dealership This part replaces M5147672.

5147672

Unavailable

21

Grease Fitting

408200700

$3.49

22

Lock Washer

512056700

$3.17

23

Hex. Screw M10 X 45

207004544

$1.69

24

Lower Shaft, Front Arm This part replaces M5347713.

5347713

$68.99

25

Shim This part replaces M20116.

20116

$2.11

26

Cushion This part replaces M31024.

31024

$13.75

27

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

28

Cap

M5448025

Unavailable

29

Conical Spring Washer M12

250200005

$3.27

30

Upper Shaft This part replaces 605348606.

5347719

$80.49

31

Elastic Stop Nut M10

232500416

$1.90

32

REAR BEAM - Call your local BRP dealership

503191743

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Hex. Elastic Stop Nut M8

232581414

$0.56

35

CARRIAGE BOLT M8 X 16 - Call your local BRP dealership

207781644

Unavailable

36

Hex. Domed Nut DIN.1587

232381413

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

39

Elastic Stop Nut M10

232500416

$1.90

40

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$3.17

41

Flat Washer 10 mm

234001410

$1.26

42

Strap Stopper

503192033

$63.99

43

Shaft This part replaces M5347717.

5347717

$45.99

44

Washer

M4181158

Unavailable

45

Hex. Screw M8 X 45

207084544

$1.48

46

Hex. Elastic Stop Nut M8

232581414

$0.56

47

Loctite 271, 10 ml

293800005

$26.99

48

Shaft This part replaces M5347726.

5347726

$83.99

49

Lock Washer D10

20068

$2.00

50

Support plate This part replaces M5447940.

5447940

$12.65

51

SCREW-SOCKET HD.DIN 912 - Call your local BRP dealership

205004547

Unavailable

52

Limiter - Call your local BRP dealership This part replaces M5347718.

5347718

Unavailable

53

SLEEVE - Call your local BRP dealership

M5346649

Unavailable

54

Shim Ring This part replaces M31013.

31013

$7.51

55

REARSHOCK SHAFT - Call your local BRP dealership

605451897

$75.99

56

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.44

57

SHIM - Call your local BRP dealership

M31091

Unavailable

58

Hex. Screw M10 X 40

207004044

$4.76

59

Lock Washer D10

20068

$2.00

60

IDLER WHEEL SLEEVE - Call your local BRP dealership

503192085

Unavailable

61

IDLER WHEEL SLEEVE - Call your local BRP dealership

503192086

Unavailable

62

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

63

Hex. Screw M8 X 70

207087044

$2.19

64

Hex. Elastic Stop Nut M8

232581414

$0.56

65

Rear Arm Weld Light

605349313

Unavailable

66

SHAFT - Call your local BRP dealership This part replaces M5346865.

5346865

$54.99

67

Flange Bearing (Cushion) This part replaces M31027.

31027

$24.99

68

Flat Washer 10 mm

234001410

$1.26

69

Hex. Screw M10 X 40

207004044

$4.76

70

Welded Rear Arm

M5347668

Unavailable

71

Lower Shaft, Front Arm This part replaces M5347713.

5347713

$68.99

72

Cushion This part replaces M31024.

31024

$13.75

73

Shim This part replaces M20116.

20116

$2.11

74

Hex. Screw M10 X 45

207004544

$1.69

75

Lock Washer

512056700

$3.17

76

Wheel Cap

570063600

$3.49

77

WHEEL 165 WITH PATTERN ASS'Y, YELLOW - Call your local BRP dealership

503191109

Unavailable

78

Rear Axle

503191408

$65.99

79

Washer

503190439

$5.93

80

Hex. Screw With Nylon

250000019

$1.69

81

SPACER - Call your local BRP dealership

503192047

Unavailable

82

Spacer

503192048

$18.49

83

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

84

Spacer

605633002

$1.48

85

Not Available As Spare Part - Friction Washer

Unavailable

86

Extension Swing Lh This part replaces 503192088.

503194592

$88.99

87

Extension Swing Rh This part replaces 503192089.

503194593

$88.99

88

Shim This part replaces M20116.

20116

$2.11

89

SCREW-SOCKET HD.DIN 912 - Call your local BRP dealership

205004547

Unavailable

90

Lock Washer

512056700

$3.17

91

Eye bolt adjuster This part replaces M5447373.

5447373

$38.99

92

Hex. Nut M10 X 1.5

232006414

$1.37

93

Cup Spring This part replaces M25004.

25004

$3.69

94

Flat Washer 10 mm This part replaces M20011.

234002410

$1.48

95

Elastic Locking Nut M10 X 1.5

233601416

$1.69

96

Flat Washer 10 mm

234001410

$1.26

97

Cushion This part replaces M31024.

31024

$13.75

98

Sleeve

605448429

$72.99

99

Sliding Pad

503192731

$38.99

100

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

101

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

102

Shock

503192311

$248.99

103

Not Available As Spare Part - Friction Washer

Unavailable

104

WHITE SPRING 255 MM-65 N/MM - Call your local BRP dealership

503192111

Unavailable

105

Spring Seat

230076

$9.69

106

Adjustment Cam

505073625

$12.99

107

Spring Guide

503191872

$2.29

108

Cushion This part replaces M31094.

31094

$14.22

109

Glue Loctite 641/ 50ml

M32161

Unavailable

110

Shock Protector

M5346754

Unavailable

111

CENTER SHOCK - Call your local BRP dealership

503191897

Unavailable

112

Not Available As Spare Part - Friction Washer

Unavailable

113

Not Available As Spare Part - Friction Washer

Unavailable

114

White Spring

503191848

$91.99

115

Bushing This part replaces M5446652.

5446652

$10.13

116

Ball Bearing

293350115

$12.11

117

Poker tube This part replaces M5347851.

5347851

$53.99

118

Axe *Shaft

M5347852

Unavailable

119

Insert

M5447853

Unavailable

120

Bearing sleeve - Call your local BRP dealership This part replaces M5447848.

5447848

Unavailable

121

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

122

Hex. Screw M10 X 35

207103544

$1.58

123

Elastic Locking Nut M10 X 1.5

233601416

$1.69
