Description

Price

1

PLASTIC SKI - Call your local BRP dealership

505072673

Unavailable

2

Retainer 17mm long

505071812

$5.95

3

Black, Handle

505070963

$35.99

4

Carbide Round Runner Kit | Europe models This part replaces 605352643.

860202822

$95.99

5

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

6

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

7

Spacer

506133300

$23.99

8

Washer

732900049

$0.58

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

RUBBER DAMPER - Call your local BRP dealership

505072561

Unavailable

11

Upper Ball Joint

505072257

$17.58

12

Circlip

293370035

$2.64

13

Clear LH Ski Leg This part replaces 505073043.

505073011

$199.99

13

Clear RH Ski Leg

505073012

$249.99

14

Leg Bushing

505072690

$12.49

15

Black, RH Lower Arm

505072497

$204.99

15

Black, LH Lower Arm

505072498

$204.99

16

Bushing

505072208

$3.28

17

Sleeve

505072209

$17.84

18

Wear Plate

505072634

$6.29

19

Screw Hex. M10 X 70

250001024

$2.11

20

Upper Arm

505072375

$154.99

21

Bushing

505072250

$3.28

22

Sleeve

505072143

$9.00

23

Screw Hex. M10 X 60

250001023

$2.11

24

Screw Hex. M10 X 50

250001022

$1.69

25

Washer

503189564

$0.74

26

Washer

505072392

$4.76

27

Hex. Flange Elastic Nut M10

250100165

$0.85

28

O-Ring

505072448

$2.32

29

Stabilisator

505072602

$68.99

30

Bushing

505072064

$2.32

31

Stabilisator Lever

505072394

$18.73

32

Hex. Flange Screw M6 X 30

207663046

$1.69

33

Elastic Flange Nut M6 X 1.0

233261416

$2.11

34

Sway Bar Double Joint Link

505072204

$21.99

35

Hex. Flange Screw M6 X 30

207663046

$1.69

36

Elastic Flange Nut M6 X 1.0

233261416

$2.11

37

Front Shock

505072517

$248.99

38

FULL MOON SPRING - Call your local BRP dealership

505072668

$63.99

39

Spring Seat

230076

$9.69

40

CAP - Call your local BRP dealership

505072637

Unavailable

41

Spring Guide

503191872

$2.29

42

Adjustment Cam

505073625

$12.99

43

Tie-Rap 180 mm

414115200

$0.11

44

Hex. Elastic Hex. Nut M12

250100089

$0.46

45

Hex. Screw M10 X 55

207005544

$2.22

46

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

47

Washer

503189564

$0.74

48

Hex. Flange Elastic Nut M10

233201414

$1.58

49

Not Available As Spare Part - Friction Washer

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Ball Joint

706202044

$35.99

51

Washer

503189276

$3.28

52

Hex. Elastic Hex. Nut M12

250100089

$0.46

53

Flat Washer 12 mm

234021410

$0.72

54

Spacer

505071999

$14.99

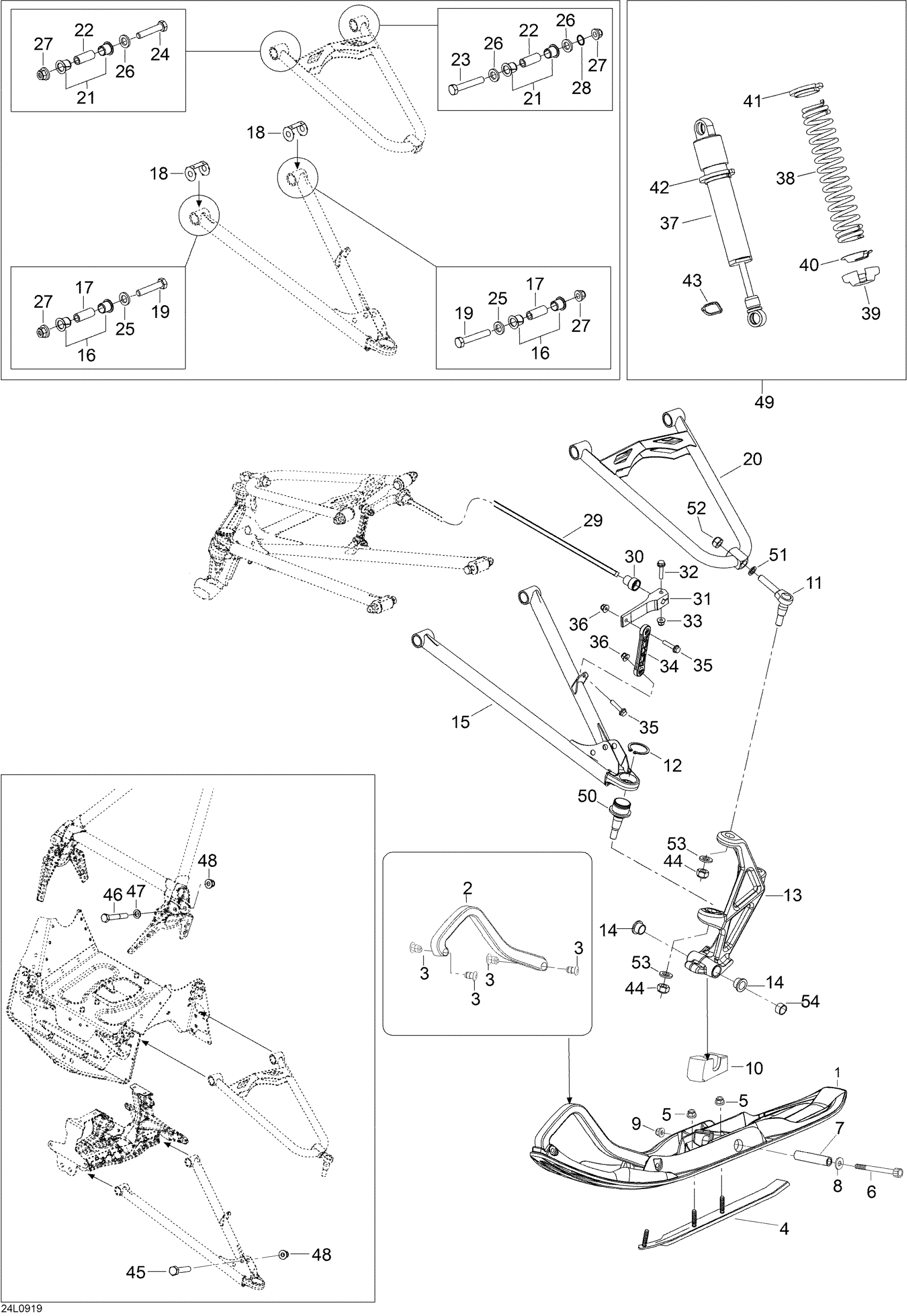

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 07- Front Suspension And Ski Diagram

PLASTIC SKI - Call your local BRP dealership

Retainer 17mm long

Black, Handle

Carbide Round Runner Kit | Europe models This part replaces 605352643.

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

Hex. Screw M10 X 130 | Model-RT STD

Spacer

Washer

Elastic Locking Nut M10 X 1.5

RUBBER DAMPER - Call your local BRP dealership

Upper Ball Joint

Circlip

Clear LH Ski Leg This part replaces 505073043.

Clear RH Ski Leg

Leg Bushing

Black, RH Lower Arm

Black, LH Lower Arm

Bushing

Sleeve

Wear Plate

Screw Hex. M10 X 70

Upper Arm

Bushing

Sleeve

Screw Hex. M10 X 60

Screw Hex. M10 X 50

Washer

Washer

Hex. Flange Elastic Nut M10

O-Ring

Stabilisator

Bushing

Stabilisator Lever

Hex. Flange Screw M6 X 30

Elastic Flange Nut M6 X 1.0

Sway Bar Double Joint Link

Hex. Flange Screw M6 X 30

Elastic Flange Nut M6 X 1.0

Front Shock

FULL MOON SPRING - Call your local BRP dealership

Spring Seat

CAP - Call your local BRP dealership

Spring Guide

Adjustment Cam

Tie-Rap 180 mm

Hex. Elastic Hex. Nut M12

Hex. Screw M10 X 55

Hex. Screw M10 X 1.5 X 65

Washer

Hex. Flange Elastic Nut M10

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Ball Joint

Washer

Hex. Elastic Hex. Nut M12

Flat Washer 12 mm

Spacer
