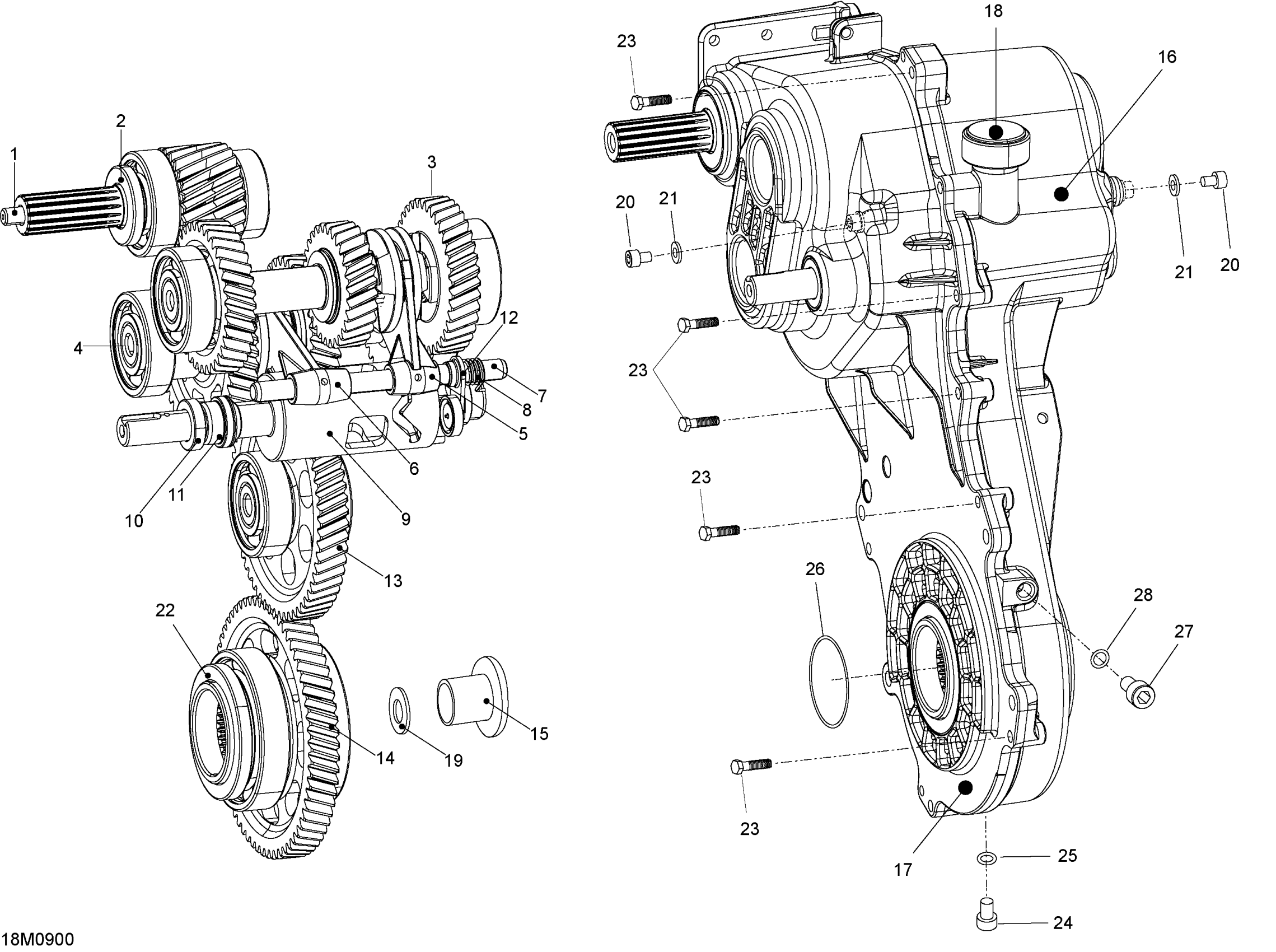

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 Transmission Diagram

#

Description
Price

-

Transmission Ass'y (Fast Ratio)

619230078

$2,149.99

1

Countershaft Ass'y | Gear Box 1.98

619230009

$621.51

2

Oil seal

619230010

$17.66

3

Main Shaft Ass'Y (Fast) This part replaces 619230012.

619230061

$693.82

4

Reverse Shaft Ass'y (Fast Ratio) | Gear Box 1.98

619230071

$586.89

5

Fork, Forwards

619230055

$140.74

6

Fork, reverse

619230015

$196.89

7

Shaft

619230016

Unavailable

8

Spring

619230017

$14.34

9

Shifting Drum

619230056

$210.74

10

Oil seal This part replaces 619230052.

619230019

$19.20

11

Bushing

619230020

$9.37

12

Locking lever

619230021

$57.66

13

Middle gear

619230022

$219.20

14

Lower gear

619230023

$406.89

15

Magnetic Cap

504152821

Unavailable

16

COVER, OUTSIDE (RH) - Call your local BRP dealership

619230025

Unavailable

17

Cover Lh (Inside) This part replaces 619230067.

619230075

$355.35

18

Oil Plug

619230027

$40.74

19

O-Ring

619230028

$4.28

20

Screw

619230029

Unavailable

21

Washer

619230030

$7.82

22

Oil seal

619230031

$19.20

23

SCREW M6 X 20 - Call your local BRP dealership

619230033

Unavailable

24

Allen Screw M8 x 10

619230037

$5.89

25

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

26

Gasket Ring

619230048

$12.18

27

Allen Screw M10 x 16

619230038

$3.92

28

Seal Ring

619230047

$3.92
