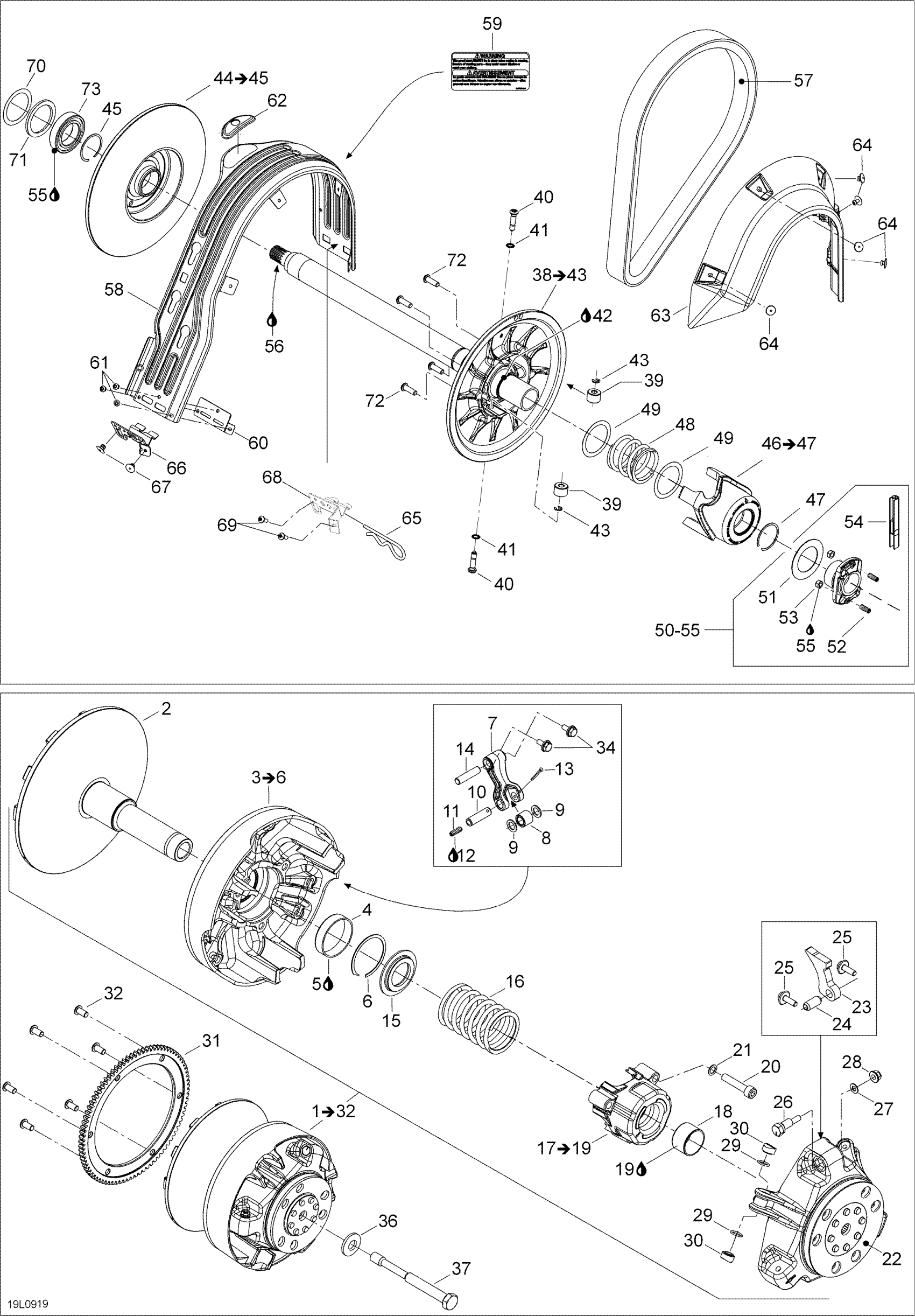

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXE FLANGE - Call your local BRP dealership

417222777

$419.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Roller

417222947

$21.99

9

Stopper Washer

417004302

$15.90

10

Pin

417222594

$14.99

11

Screw Socket Set DIN.913 S.Grip

250000408

$4.09

12

Loctite 243, 10 ml

293800060

$21.49

13

Cotter Pin

250400060

$2.00

14

Lever Axle

417223164

$4.49

15

Spring Seat

417222312

$9.59

16

Tra Spring

414993000

$56.99

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

18

Bushing

417009204

$17.49

19

Loctite 609, 10 ml

413703100

$26.99

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

21

Lock Washer 8 mm

250200009

$2.11

22

Governor Cup

417222213

Unavailable

23

Ramp 600

417222444

$36.99

24

Spring Pin M10 X 22

250400050

$2.99

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$4.09

28

Hex. Flange Nut M6

233061414

$1.68

29

O-Ring

732401030

$0.98

30

Slider Shoe This part replaces 420460045.

417223021

$5.90

31

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

32

Torx Screw M8 X 16

250000751

$6.11

34

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

36

Spring Washer 14 mm

250200006

$6.99

37

Drive Pulley Bolt

417120000

$65.49

38

Fixed Flange Ass'y | Includes 38 to 43

417127100

Unavailable

39

Pulley Roller

417127016

$24.49

40

Pivot Stud

417127259

$21.99

41

Lock Washer 8 mm

250200009

$2.11

42

Loctite 609, 10 ml

413703100

$26.99

43

Circlip

414753500

$0.71

44

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

45

Circlip

293370049

$4.99

46

Cam Ass'y | Includes 100m to 100q

417127372

$159.49

47

Circlip

293370049

$4.99

48

Blue Spring

417127118

$44.49

49

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

50

ADJUSTMENT KIT - Call your local BRP dealership | Includes 50 to 54

415129409

Unavailable

51

Washer

417127155

$8.26

52

SOCKET SET SCREW M6 X 16 - Call your local BRP dealership This part replaces 206261690.

206261650

$4.09

53

Hex. Nut M6

232061414

$0.53

54

Spacing Tool

529035501

$4.72

55

Loctite 609, 10 ml

413703100

$26.99

56

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

57

Drive Belt

417300586

$154.99

58

Belt Guard

417300357

$91.99

59

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

60

Reinforcement

417300380

$7.29

61

Avex Rivet

390909200

$0.30

62

Guide

417300381

$11.99

63

Side Protector

417300356

$14.76

64

Pop Rivet 3/16"

293150103

$0.55

65

Hair Pin

114045200

$11.11

66

Belt Guard Bracket

417300364

$29.99

67

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

68

Belt Guard Bracket | Except Package SWT

417300363

$14.49

69

Rivet Hucklok

293150163

$2.99

70

FLAT WASHER - Call your local BRP dealership

504152958

Unavailable

71

SEAL RING - Call your local BRP dealership

504152959

Unavailable

72

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

73

Ball Bearing

504152574

$35.99
