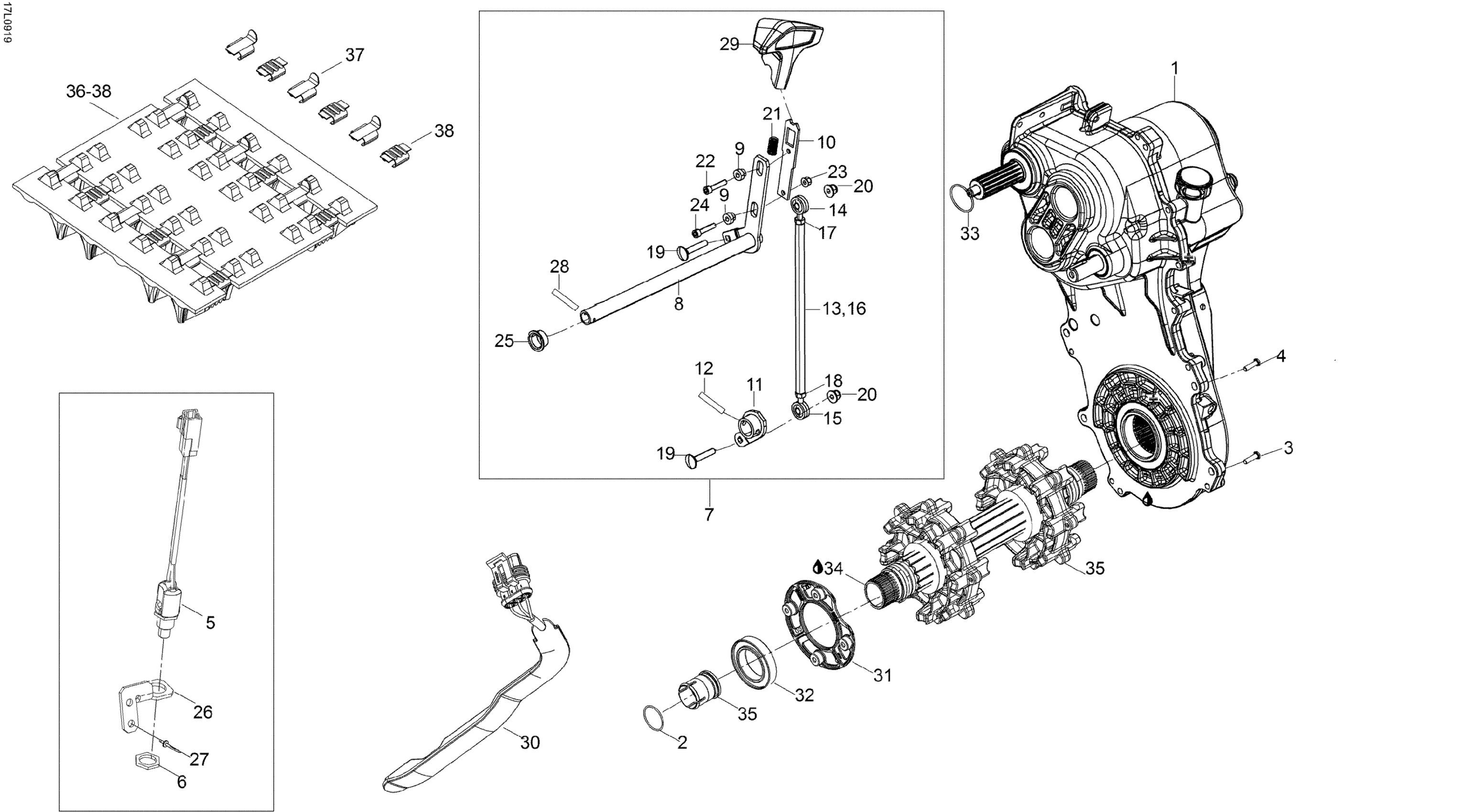

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 05- Drive System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

O-RING - Call your local BRP dealership

293300143

Unavailable

3

Hex Forming Screw DIN.7500D

250000376

$7.51

4

SELF TAPPING SCREW M8X30 - Call your local BRP dealership

40015

Unavailable

5

Switch Ass'y

515176472

$72.99

6

BRASS NUT - Call your local BRP dealership

250100012

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Lever Shifter

504153288

$154.99

9

Sleeve

504152787

$28.49

10

Shifter Arm

504153287

$51.99

11

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

12

Pin

41012

$6.39

13

Not Available As Spare Part - Friction Washer

Unavailable

14

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

15

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

16

ROD - Call your local BRP dealership

504152836

Unavailable

17

Hex. Nut M6

232061414

$0.53

18

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

19

Carriage Bolt M6 X 25

207762544

$1.69

20

Elastic Stop Nut M6

232561414

$0.55

21

Spring

504152882

$38.99

22

SOCKET SCREW M5 X 25 - Call your local BRP dealership

205052534

Unavailable

23

Flange Elastic Nut M5

233251434

$2.00

24

Forming Screw M5 x 16

250000676

$1.01

25

Bushing

504152890

$42.49

26

Sensor Bracket

504152902

$17.99

27

Hex. Flange Screw M6 X 20

207662044

$2.00

28

Cotter Pin

250400035

$2.11

29

Handle

504152837

$80.99

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Bearing Housing

507032437

$19.99

32

Ball Bearing

293350059

$30.99

33

O-Ring

293300122

$2.11

34

Not Available As Spare Part - Friction Washer

Unavailable

35

AXLE-DRIVE ASSY - Call your local BRP dealership This part replaces 504152910.

504153261

Unavailable

36

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1.00

37

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

38

CLEAT - Call your local BRP dealership

M5318322

Unavailable
