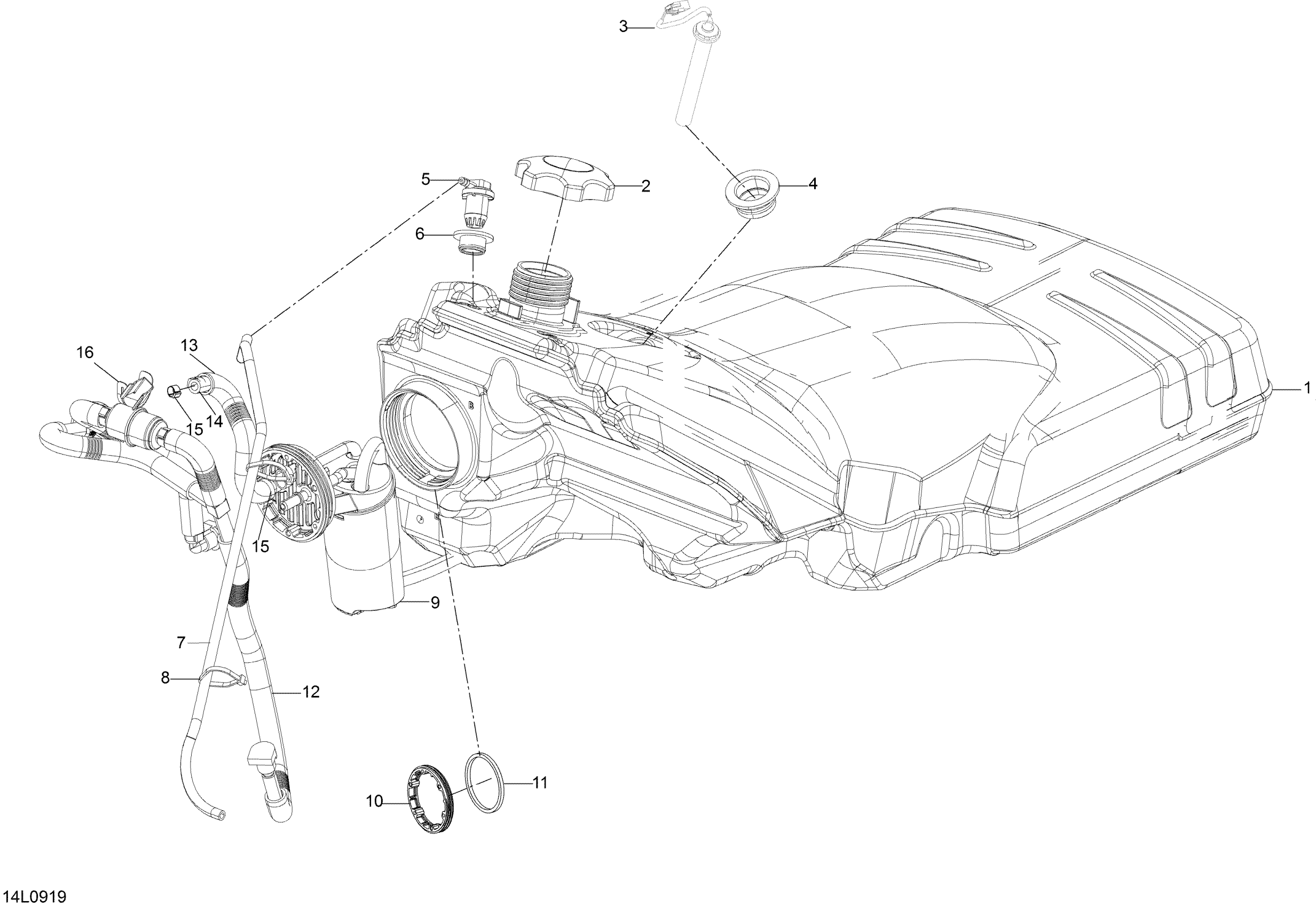

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 02- Fuel System Diagram

FUEL TANK - Call your local BRP dealership

513033386

Unavailable

Fuel Tank Cap

513033025

$24.49

Fuel Sensor

513033538

$82.99

Grommet

293720058

$11.99

Check Valve

513033842

$35.99

Grommet

513033596

$21.99

Polyurethane Hose 10000Mm Long

219704410

$56.99

Tie-Rap 180 mm

414115200

$0.11

PUMP FUEL This part replaces 513033585.

513034262

$259.99

Ring

513033180

$19.99

Gasket

513033334

$24.49

HOSE ASS`Y FUEL DELIVERY - Call your local BRP dealership

513033430

Unavailable

Tubing 16 Mm 1000Mm Long

219704408

$7.49

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

Crimp Clamp, 15.3-706R

293650047

$3.29

FILTER CLIP - Call your local BRP dealership

513033336

Unavailable
