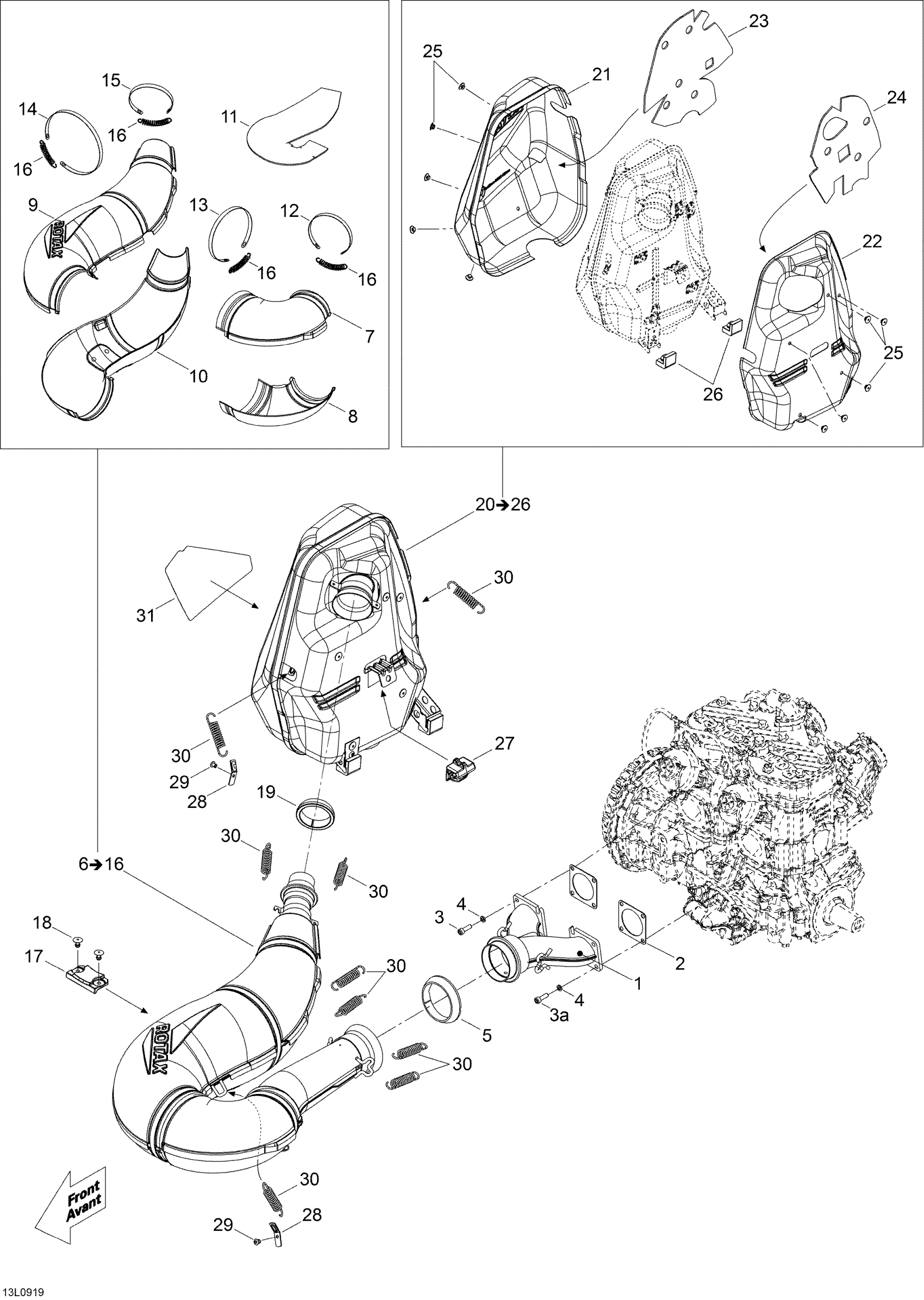

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 01- Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$289.99

2

Gasket

420850552

$8.85

3

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

4

Washer

514053953

$0.77

5

Exhaust Gasket

514053487

$26.49

6

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 6 to 16

514054534

Unavailable

7

Front Upper Half Enveloppe

514054992

$40.99

8

Front Lower Half Enveloppe

514054993

$40.99

9

Rear Upper Half Enveloppe

514055039

$65.99

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$56.99

11

Insulating Wool

514054487

$20.99

12

Retaining Strap

514054408

$13.10

13

Retaining Strap

514054409

$13.10

14

Retaining Strap

514054410

$13.10

15

Retaining Strap

514053499

$11.47

16

Spring

514053643

$6.35

17

Bumper

514054275

$16.34

18

Pop Rivet 3/16"

293150103

$0.55

19

Exhaust Gasket

514053812

$25.99

20

Muffler Ass'y | Includes 400 to 400f

514055025

$858.49

21

RH Deflector

514054985

$58.99

22

LH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054202

Unavailable

23

RH INSULATING WOOL - Call your local BRP dealership

514054298

Unavailable

24

LH Insulating Wool

514054299

$20.99

25

Pop Rivet 3/16”

390910000

$0.57

26

Lower Stopper

514054274

$20.49

27

Upper Stopper

514054606

$19.99

28

Spring Bracket

514054522

$8.45

29

Pop Rivet 3/16"

390402200

$0.35

30

Spring

514054226

$6.35

31

Reflective Sheet

514054488

$14.99
