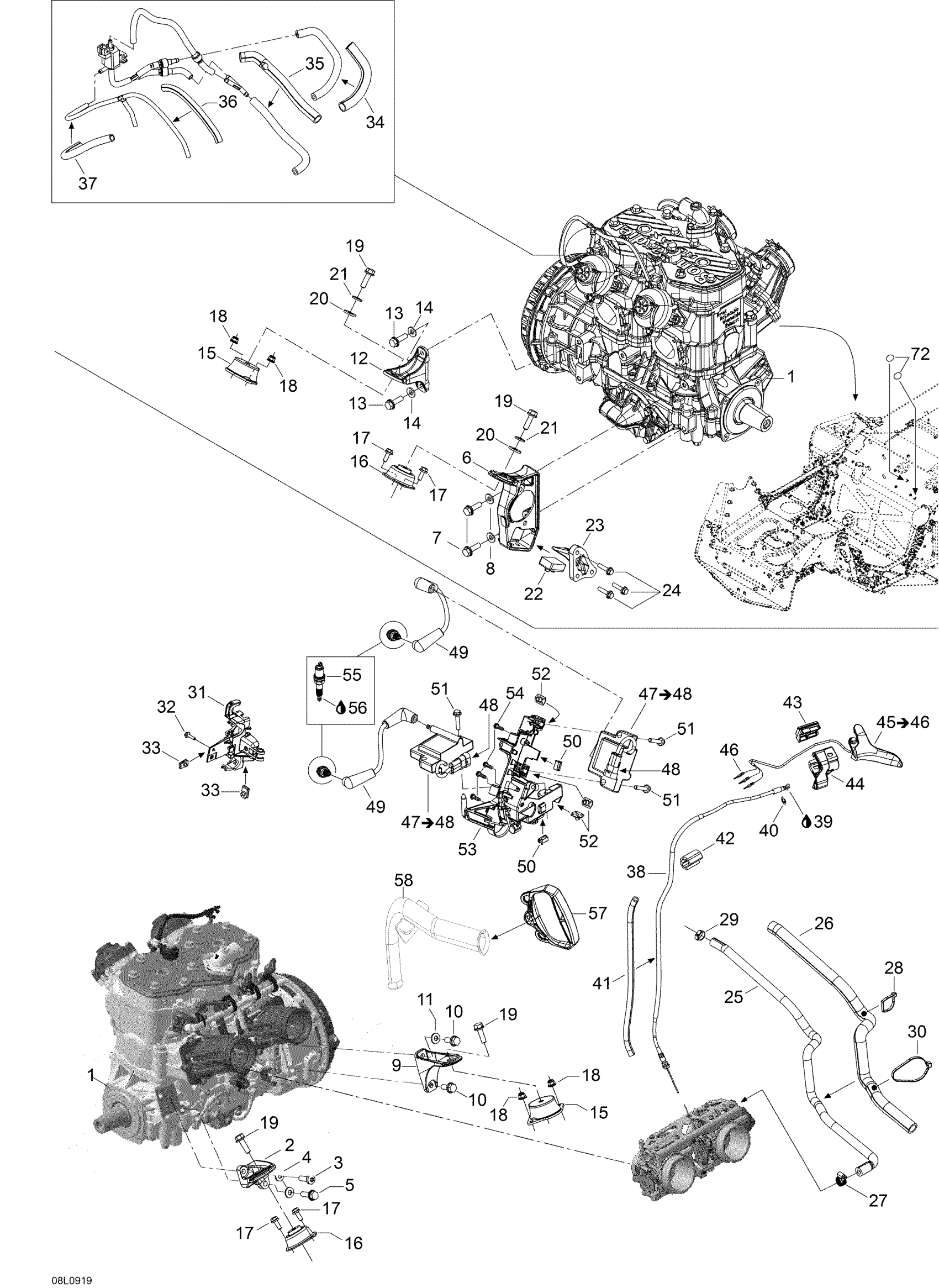

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rear Support, PTO

512060478

$29.07

3

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

4

Conical Spring Washer M8

234281474

$1.43

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

6

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

7

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

8

Conical Spring Washer M8

234281474

$1.43

9

REAR MAG SUPPORT - Call your local BRP dealership

512060470

Unavailable

10

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

11

Conical Spring Washer M8

234281474

$1.43

12

Front Support, MAG

512060469

$30.57

13

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

14

Conical Spring Washer M8

234281474

$1.43

15

Rubber Mount

512060729

$67.88

16

Rubber Mount

512060387

$41.01

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

19

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

20

Yellow, Washer

503183200

$2.91

21

Conical Spring Washer M8

234281474

$1.43

22

STOPPER - Call your local BRP dealership

512060488

Unavailable

23

Stopper Support

512060576

$27.58

24

Hex. Flange Screw M6 X 25

207562544

$1.60

25

FORMED HOSE - Call your local BRP dealership

509000601

Unavailable

26

Tubing 16 Mm 1000Mm Long

219704408

$7.15

27

Tridon Gear Clamp

293650170

$2.00

28

Tie-Rap 180 mm

414115200

$0.10

29

Crimp Clamp

293650053

$2.78

30

Tie-Rap 180 mm

414115200

$0.10

31

Solenoid Support

512060298

$12.15

32

Hex.Flange Screw M5 X 20

207652044

$1.79

33

Panel Nut M5 X 0.8

250000958

$4.00

34

Was 409901800 Tubing (13 mm)

219704400

$10.79

35

Was 409901800 Tubing (13 mm)

219704400

$10.79

36

Was 409901700 Tubing (9 mm)

219704399

$77.58

37

Was 409901700 Tubing (9 mm)

219704399

$77.58

38

THROTTLE CABLE - Call your local BRP dealership

512060086

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

40

Circlip

414274500

$0.85

41

Tubing 6 Mm 3000Mm Long

219704425

$12.75

42

Tubing 10 MM 1000MM Long

219704407

$2.52

43

Upper Housing Ass'y

512060198

Unavailable

44

Lower Housing

512060860

$16.39

45

Handle Ass'y

512061250

$114.15

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Housing

710000568

$10.51

49

SPARK PLUG CABLE, 190 MM - Call your local BRP dealership

420664302

Unavailable

50

Clip

710000992

$3.88

51

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.00

52

Nut Welded, M6

293100003

$7.25

53

COIL SUPPORT - Call your local BRP dealership

512060279

Unavailable

54

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

55

Spark Plug NGK BR8ECS

512060029

$11.13

56

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

57

Starter Grip

512060136

$14.10

58

Tubing

512060451

$43.25
