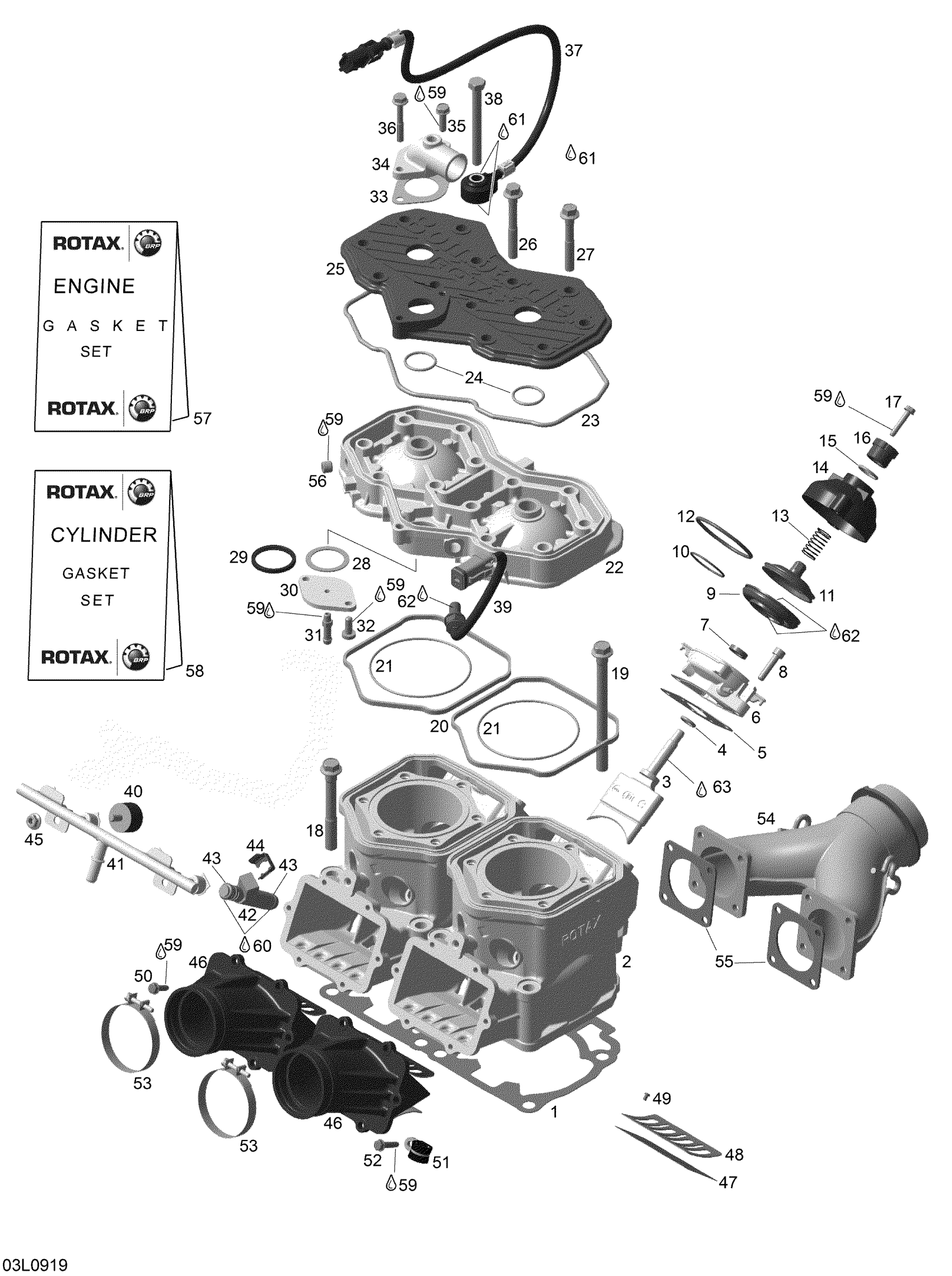

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 Cylinder and Cylinder Head Diagram

#

Description
Price

1

Gasket 0.5 mm

420431160

$16.89

1

Gasket 0.6 mm

420431161

$23.05

1

Gasket 0.7 mm

420431162

$23.05

1

Double Gasket 0.8 mm

420431163

$23.05

2

CYLINDER H.O. SDI - Call your local BRP dealership

420613944

Unavailable

3

Exhaust Valve

420854650

$66.89

4

O-Ring

420430110

$3.61

5

Gasket

420931542

$6.62

6

VALVE HOUSING - Call your local BRP dealership

420854454

Unavailable

7

Oil Seal | Included in gasket kit

420950732

$8.34

8

Socket Head Screw M6 X 25

205062544

$0.88

9

Bellows

420260729

$37.66

10

Hose Spring This part replaces 420838253.

420838255

$6.11

11

Exhaust Valve This part replaces 290253257.

420854449

$29.87

12

Hose Spring This part replaces 420239048.

420939281

$5.99

13

SPRING - Call your local BRP dealership

420239942

Unavailable

14

Valve Cover This part replaces 420911558.

420911559

$24.02

15

O-Ring

420430220

$8.03

16

Adjuster Screw

420241221

$12.52

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

18

Hex. Collar Screw

420640524

$11.52

19

Hex. Collar Screw

420640534

$13.58

20

Rubber Ring

420931590

$5.69

21

O-Ring This part replaces 420850540.

293300026

$2.67

22

CYLINDER HEAD - Call your local BRP dealership

420613704

Unavailable

23

O-Ring This part replaces 290950320.

420950320

$11.48

24

O-Ring

420430782

$4.41

25

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

26

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

27

Hex. Screw M8 X 56.5

420941627

$8.34

28

RETAINING DISK - Call your local BRP dealership

420927745

Unavailable

29

Sealing Ring

420931272

$15.35

30

COVER - Call your local BRP dealership

420926267

Unavailable

31

Hose Nipple

420924724

$12.29

32

Torx Screw M6 X 16

420640324

$2.06

33

Gasket

420850338

$10.28

34

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

35

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

36

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

37

Noise Sensor

270000484

$65.62

38

HEX. SCREW M8 X 80 - Call your local BRP dealership

420941221

Unavailable

39

Temperature Sensor This part replaces 420664508.

420664509

$142.28

40

STOPPER - Call your local BRP dealership

420960065

Unavailable

41

RAIL FUEL - Call your local BRP dealership

420874492

Unavailable

42

Fuel Injectors

420874485

$232.28

43

O-Ring

420631220

$11.48

44

CLIP - Call your local BRP dealership

420851800

Unavailable

45

NUT - Call your local BRP dealership

420442172

Unavailable

46

Intake Socket With Reed Valve | Includes 22 to 25 This part replaces 420667532.

420667533

$228.43

47

Reed Pedal

420924680

$37.66

48

Reed Pedal Stop

420924695

$13.58

49

Phillips Screw M3 X 5

420941215

$1.42

50

Taptite Screw M5 X 16

420941928

Unavailable

51

Clamp

420851250

$9.31

52

Tapping Screw M5 X 22

420841550

$1.68

53

Clamp

420851065

$13.58

54

Exhaust Manifold This part replaces 420673420.

420673421

$269.97

55

Gasket

420850552

$7.92

56

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

57

Gasket Set, Engine

420889931

$245.35

58

Gasket Set, Cylinder

420889936

$170.74

59

Loctite 243, 10 ml

293800060

$20.77

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Loctite 5910, 300 ml

293800081

$57.99

62

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

63

Molykote G-N, 50 g

420297433

$22.72

64

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74
