Description

Price

1

Crankcase Ass'y | Includes 1 to 10

420890229

$1.00

2

Hex. Collar Screw M8 X 75

420640836

$13.16

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

5

Socket Head Screw M6 X 30

205063044

$1.69

6

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

7

Center Pin 8 X 12

420632010

$4.01

8

Cable Grommet

420860965

$14.28

9

Cap

420960770

$4.12

10

Ball Bearing

420232100

$20.99

11

Check Valve

420956511

$35.99

12

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420230195

$15.36

15

Ball Bearing

420232100

$20.99

16

Rotary Seal

420650371

$43.49

17

O-Ring

420950890

$4.44

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Allen Screw M5 x 16

420840514

$1.90

20

Thrust Washer

420227945

$4.01

21

Water Impeller

420222505

$19.99

22

Gasket This part replaces 420931810.

420931811

$13.76

23

Water Pump Housing

420922630

$61.49

24

Hex. Screw M6 X 25

420240034

$1.90

25

O-Ring

293300041

$8.57

26

Oil Pump Ass'y

420888780

$409.99

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Oil Hose 1500Mm Long

219704404

$17.26

29

Oil Hose 1500Mm Long

219704404

$17.26

30

Oil Seal Cover

420812422

$14.83

31

Screw M6 X 20

420941436

$3.17

30

Loctite 5910, 300 ml

293800081

$57.99

32

REBUILT - Cylinder Short Block 593SDIXP This part replaces 420059373.

421000659

Unavailable

32

REBUILT - Cylinder Short Block 593SDIXP This part replaces 420059373.

421000659

Unavailable

33

Loctite 5910, 300 ml

293800081

$57.99

34

Loctite 243, 10 ml

293800060

$21.49

35

Sealant Loctite 648

219703000

$45.99

36

Petamo Grease, GHY133N, 400 g

420899271

$67.99

37

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

38

Dow Corning 111, 150 g

413707000

$59.99

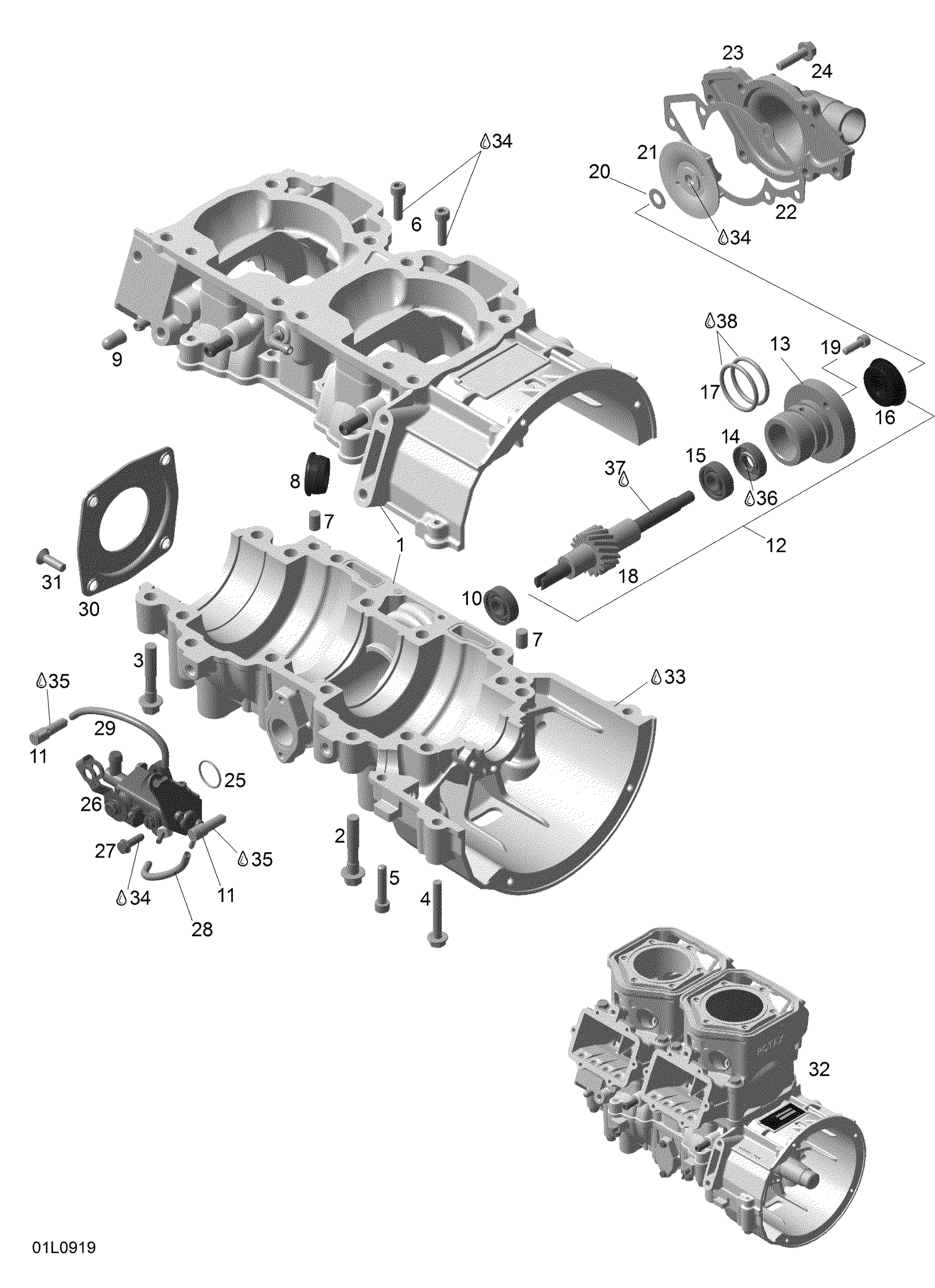

Ski-Doo Expedition TUV 600 H.O. SDI REV-XU, 2009 01- Crankcase, Water Pump And Oil Pump Diagram

Crankcase Ass'y | Includes 1 to 10

Hex. Collar Screw M8 X 75

Hex. Collar Screw M8 x 45

Allen Screw M6 x 45 This part replaces 420640311.

Socket Head Screw M6 X 30

Allen Screw M6 x 22 This part replaces 420840401.

Center Pin 8 X 12

Cable Grommet

Cap

Ball Bearing

Check Valve

Water Pump/Oil Pump Ass'y | Includes 12 to 18

Not Available As Spare Part - Friction Washer

Oil Seal

Ball Bearing

Rotary Seal

O-Ring

Not Available As Spare Part - Friction Washer

Allen Screw M5 x 16

Thrust Washer

Water Impeller

Gasket This part replaces 420931810.

Water Pump Housing

Hex. Screw M6 X 25

O-Ring

Oil Pump Ass'y

Taptite Screw M5 X 16

Oil Hose 1500Mm Long

Oil Hose 1500Mm Long

Oil Seal Cover

Screw M6 X 20

Loctite 5910, 300 ml

REBUILT - Cylinder Short Block 593SDIXP This part replaces 420059373.

REBUILT - Cylinder Short Block 593SDIXP This part replaces 420059373.

Loctite 5910, 300 ml

Loctite 243, 10 ml

Sealant Loctite 648

Petamo Grease, GHY133N, 400 g

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

Dow Corning 111, 150 g
