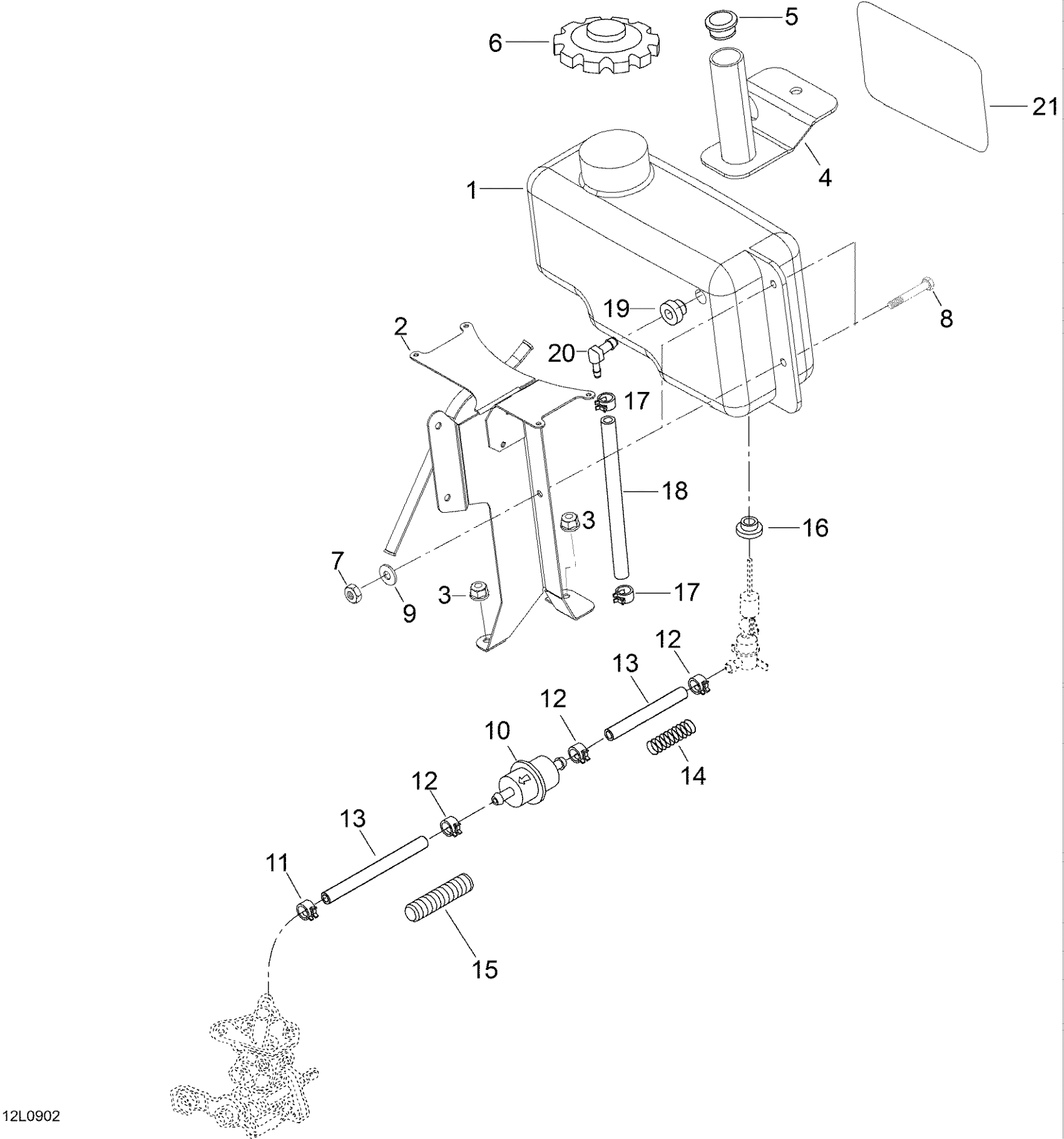

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 02- Oil System Diagram

#

Description
Price

1

Oil Tank

605351449

Unavailable

2

BRACKET - Call your local BRP dealership

605352356

Unavailable

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

BRACKET - Call your local BRP dealership

605351804

Unavailable

5

PLUG - Call your local BRP dealership

M28136

Unavailable

6

CAP - Call your local BRP dealership

519000042

Unavailable

7

Elastic Stop Nut M6

232561414

$0.55

8

Hex. Screw M6 X 16

207161644

$0.74

9

Flat Washer 6 mm

234062410

$0.77

10

Filter

414536500

$4.02

11

Spring Clamp

414420700

$0.72

12

Spring Clamp

414415200

$0.88

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

14

SPRING - Call your local BRP dealership

519000065

Unavailable

15

HOUSING - Call your local BRP dealership

M28015

Unavailable

16

Insulating Ring

570023000

$5.61

17

Spring Clamp

414554800

$0.88

18

Polyurethane Hose 10000Mm Long

219704410

$56.99

19

Grommet

709200285

$9.69

20

Male Connector

414580700

$4.12

21

Reflecting Sheet

M5443578

Unavailable
