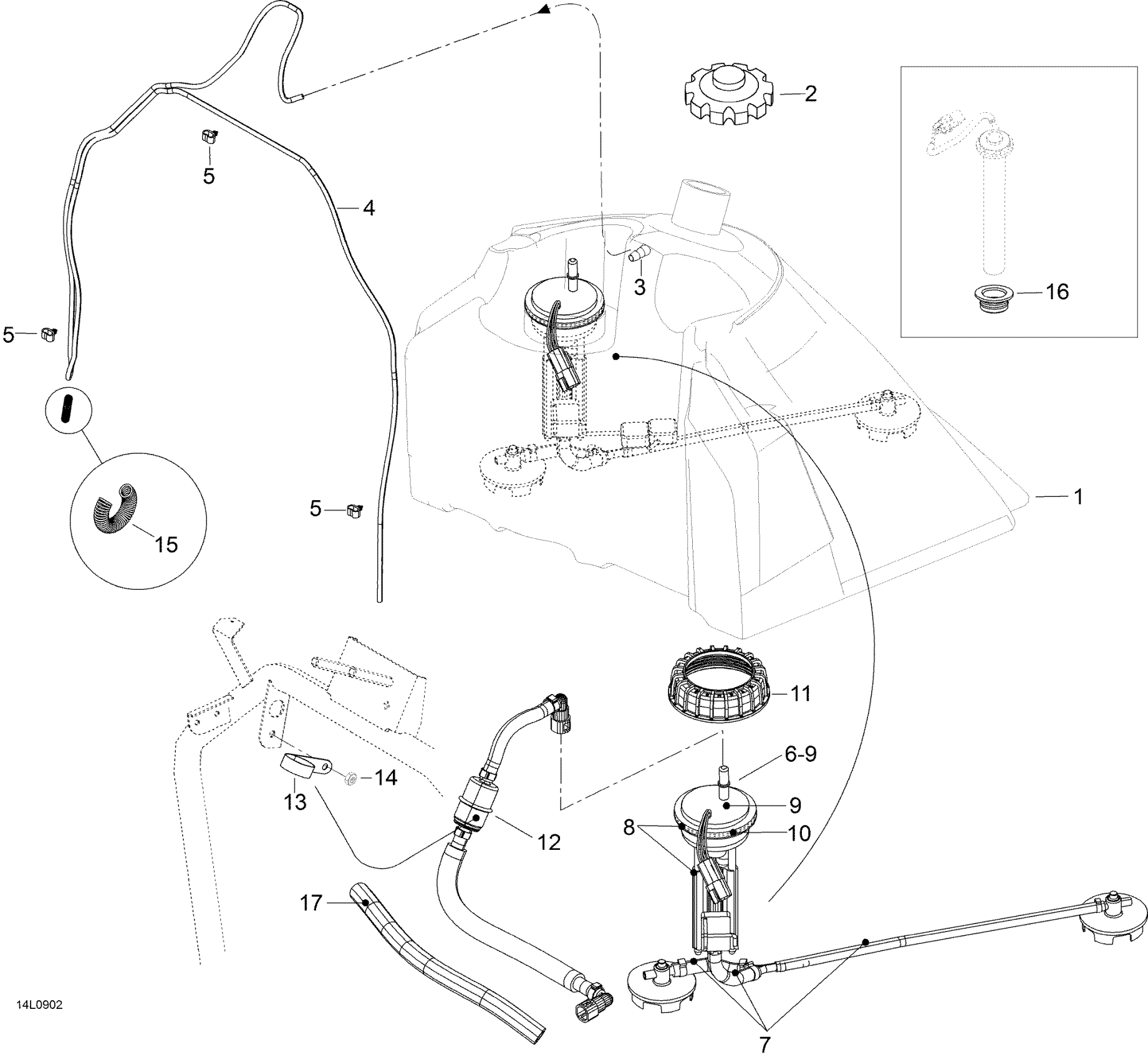

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

605153637

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

NIPPLE - Call your local BRP dealership

404127600

Unavailable

4

HOSE - Call your local BRP dealership

M39035

Unavailable

5

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

6

FUEL PUMP ASS'Y - Call your local BRP dealership | Includes 6 to 9

605351840

Unavailable

7

Fuel hose kit - Call your local BRP dealership This part replaces M19183.

19183

Unavailable

8

PUMP HOSE KIT - Call your local BRP dealership

861302600

Unavailable

9

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

10

SEAL - Call your local BRP dealership

513033039

Unavailable

11

Nut, Fuel Pump Module

513033040

$29.99

12

Fuel Line Ass'y This part replaces 605356033.

605356277

$99.99

13

Open Clamp

513033047

$5.19

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

SPRING - Call your local BRP dealership

M25003

Unavailable

16

Grommet

293720058

$11.99

17

Was M27127 Tubing

219704355

$23.49
