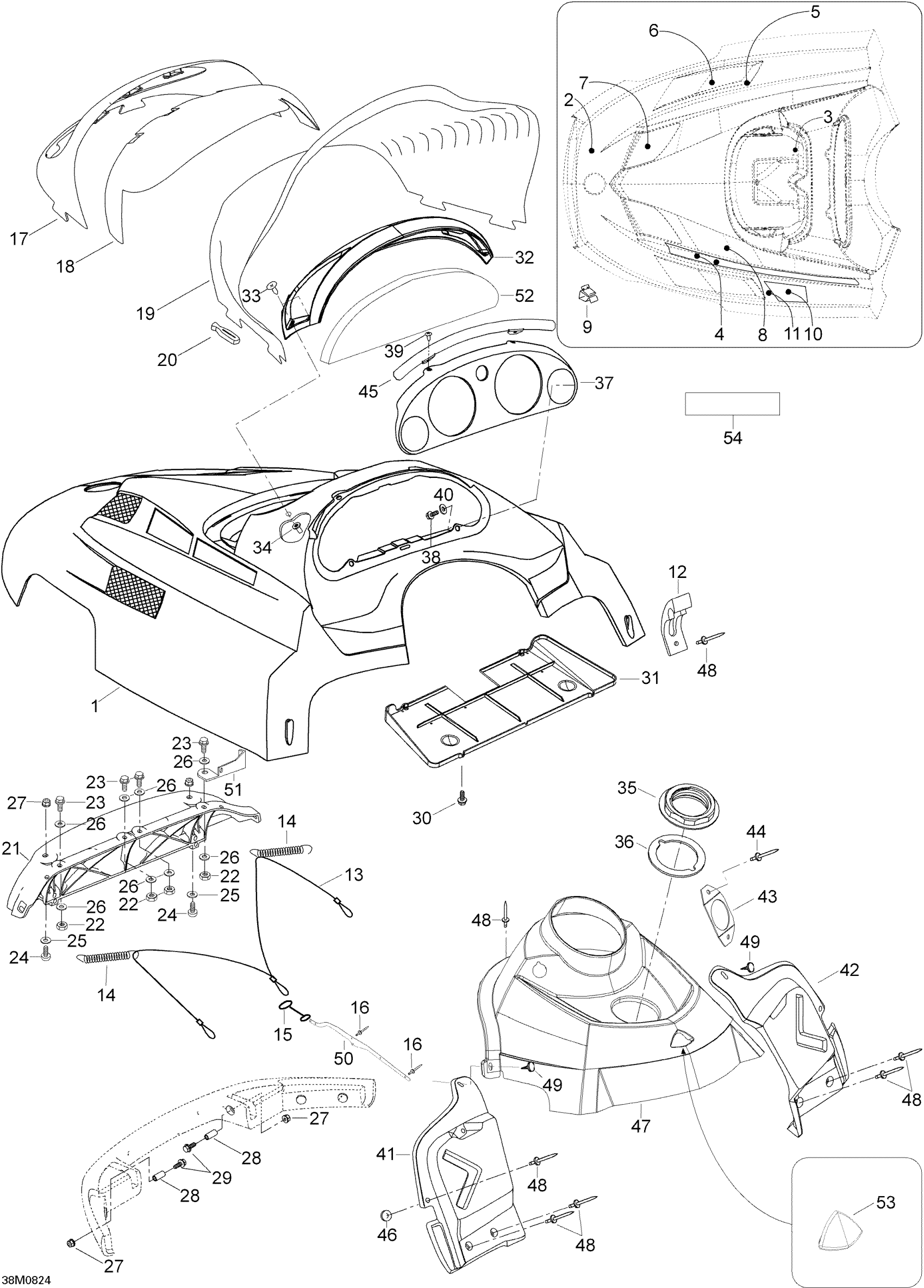

Ski-Doo Expedition TUV 600 H.O. SDI, 2008 09- Hood Diagram

#

Description
Price

1

HOOD PRE ASS'Y - Call your local BRP dealership | Includes 1 to 11, Jet Black

605155270

Unavailable

1

Hood Pre Ass'y | Cranberry Red, Includes 1 to 11

605155274

Unavailable

2

HEAT PROTECTOR - Call your local BRP dealership

605350919

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

605350920

Unavailable

4

HEAT SHIELD - Call your local BRP dealership

605350921

Unavailable

5

HEAT PROTECTOR - Call your local BRP dealership

605350922

Unavailable

6

LH UPPER GRILL - Call your local BRP dealership

605350923

Unavailable

6

RH UPPER GRILL - Call your local BRP dealership

605350924

Unavailable

7

LH LOWER GRILL - Call your local BRP dealership

605350925

Unavailable

7

RH LOWER GRILL - Call your local BRP dealership

605350926

Unavailable

8

LH GRILL - Call your local BRP dealership

605350927

Unavailable

9

Clip

414227300

$1.67

10

HEAT SHIELD - Call your local BRP dealership

605350929

Unavailable

11

HEAT PROTECTOR - Call your local BRP dealership

605352546

Unavailable

12

Hood Latch

517302152

$18.49

13

Retainer Cable

605351372

Unavailable

14

Spring This part replaces M5442675.

5442675

$14.99

15

Cable Keeper

M5442870

Unavailable

16

RIVET - Call your local BRP dealership

M36002

Unavailable

17

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

18

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

19

Windshield

605152073

$180.99

20

Windshield Latch

570023800

$4.49

21

Hinge

517302631

$48.99

22

Elastic Stop Nut M6

232561414

$0.55

23

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

24

Screw M6X20

M40381

Unavailable

25

Washer

20117

$6.39

26

Flat Washer 6 mm

234062410

$0.77

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

BUSHING - Call your local BRP dealership

517302179

Unavailable

29

Hex. Screw

M40003

Unavailable

30

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

31

AIR INTAKE PLATE - Call your local BRP dealership

605151831

Unavailable

32

COVER - Call your local BRP dealership

605151832

Unavailable

33

Screw M4 X 18

M40061

Unavailable

34

Well-nut

M28051

Unavailable

35

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

36

Gasket

M5447116

Unavailable

37

INDICATOR SUPPORT - Call your local BRP dealership

605353602

Unavailable

38

Screw K40 X 10

241140060

$1.48

39

Screw

M40888

Unavailable

40

Washer

517124300

$0.19

41

LH CONSOLE - Call your local BRP dealership

605251384

Unavailable

42

RH CONSOLE - Call your local BRP dealership

605251922

Unavailable

43

Support, LH Console

605352405

Unavailable

44

Rivet

36005

$2.11

45

SUPPORT PLATE - Call your local BRP dealership

605352586

Unavailable

46

Washer 5,3 mm

20008

$0.74

47

CONSOLE, MIDDLE - Call your local BRP dealership

605251387

Unavailable

48

Black Rivet

36037

$1.48

49

Black, Dart

414644300

$0.98

50

BRACKET - Call your local BRP dealership

605452657

Unavailable

51

RH HOOD SUPPORT - Call your local BRP dealership

605351464

Unavailable

51

LH HOOD SUPPORT - Call your local BRP dealership

605351463

Unavailable

52

FILTER - Call your local BRP dealership

605352583

Unavailable

53

PLUG - Call your local BRP dealership

605453896

Unavailable

54

VELCRO 1/2? - Call your local BRP dealership

415110900

Unavailable
