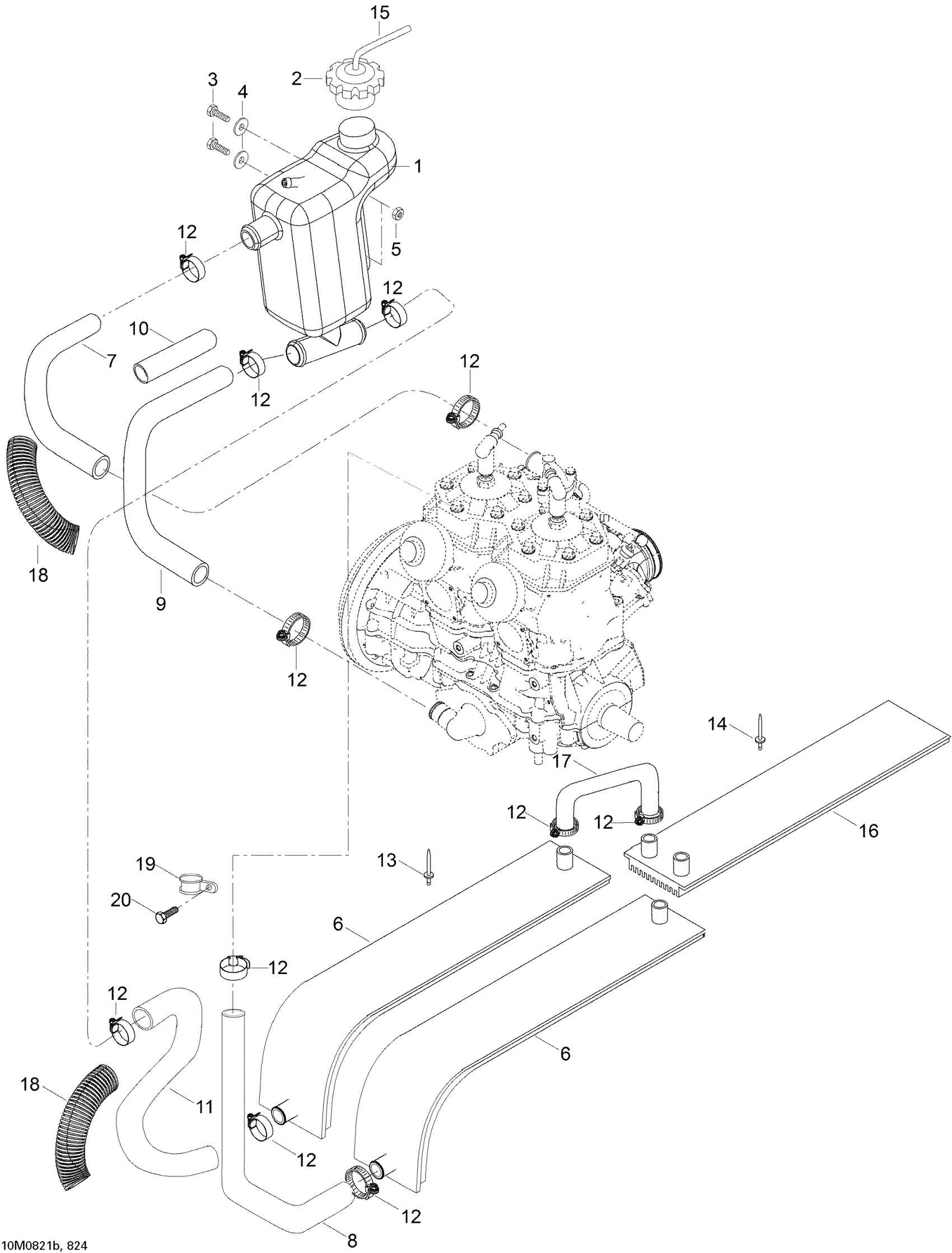

Ski-Doo Expedition TUV 600 H.O. SDI, 2008 01- Cooling System Diagram

#

Description
Price

1

COOLANT TANK - Call your local BRP dealership

605152223

Unavailable

2

Cap

M21018

Unavailable

3

Hex. Screw M6 X 16

207161644

$0.74

4

Flat Washer 6 mm

234062410

$0.77

5

Elastic Stop Nut M6

232561414

$0.55

6

RH RADIATOR - Call your local BRP dealership

605151690

Unavailable

6

LH RADIATOR - Call your local BRP dealership

605151689

Unavailable

7

Hose

605351619

Unavailable

8

LH HOSE - Call your local BRP dealership

605253629

Unavailable

9

HOSE - Call your local BRP dealership

605253621

Unavailable

10

TUBING - Call your local BRP dealership

M39062

Unavailable

11

RH HOSE - Call your local BRP dealership

605353968

Unavailable

12

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

13

Rivet

36108

$1.90

14

Rivet

M36489

Unavailable

15

Polyurethane Hose 10000Mm Long

219704410

$56.99

16

Radiator, Rear

605351687

Unavailable

17

FRONT RADIATOR HOSE - Call your local BRP dealership

605253904

Unavailable

18

Tubing

M28036

Unavailable

19

CLIP - Call your local BRP dealership

M27011

Unavailable

20

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable
