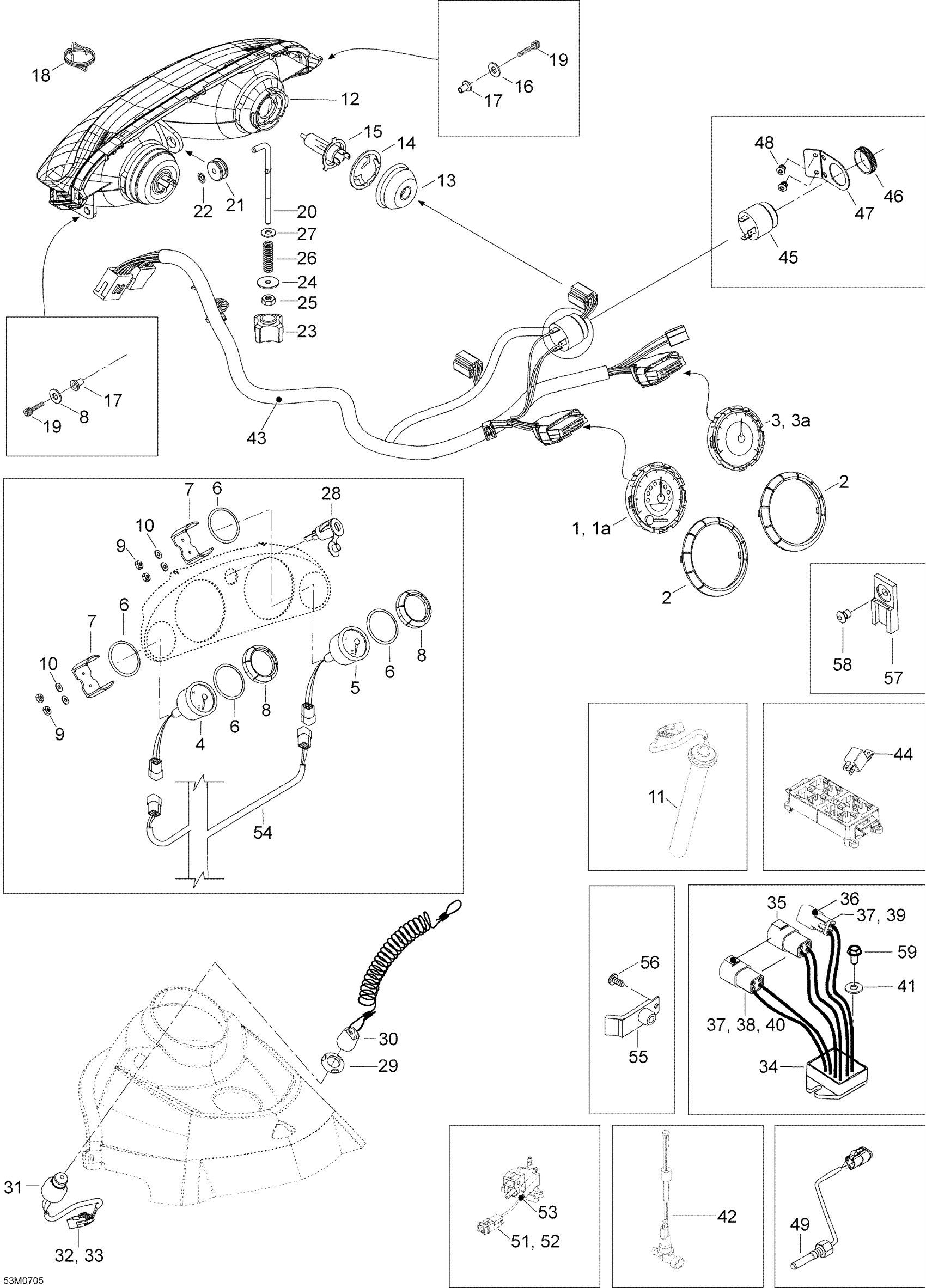

Ski-Doo Expedition TUV 600 H.O. SDI, 2007 10- Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

1a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

TACHOMETER - Call your local BRP dealership

515176478

Unavailable

3a

Lens

415129320

$24.49

4

Temperature Gauge

515175601

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

515175529

Unavailable

6

O-RING - Call your local BRP dealership

414807200

Unavailable

7

Case Holder

415099800

Unavailable

8

RING GAUGE - Call your local BRP dealership

515175711

Unavailable

9

Elastic Stop Nut M4

232541414

$0.58

10

Washer

20037

$2.11

11

Fuel Sensor

605354768

Unavailable

12

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

13

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

14

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

15

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

16

Washer 5,3 mm

20008

$0.74

17

NUT M5 - Call your local BRP dealership

250100018

$6.99

18

SPRING - Call your local BRP dealership

M5447238

Unavailable

19

Screw M5X35

M40235

Unavailable

20

ADJUSTER ROD - Call your local BRP dealership

605450023

Unavailable

21

Grommet - Call your local BRP dealership

415100800

Unavailable

22

Push Nut

732610072

$2.19

23

Handle - Call your local BRP dealership

515175548

Unavailable

24

WASHER - Call your local BRP dealership

M20038

Unavailable

25

Elastic Stop Nut M6

232561414

$0.55

26

SPRING - Call your local BRP dealership

415100600

Unavailable

27

Flat Washer 6 mm

234061410

$1.36

28

DC Outlet

710001248

$37.99

29

Safety Nut (DESS Switch)

278002963

$3.28

30

DESS

515178284

$84.99

31

DESS Switch

515177249

$114.99

32

Male Terminal

515175232

$1.58

33

Male Housing, 3 Circuits

515175494

$16.18

34

Voltage Regulator | Includes 32 to 38

515176243

$359.99

35

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

36

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

37

Male Terminal

515175568

$9.12

38

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

39

Male Lock, 2 Circuits

278001672

$3.49

40

Sealing Cap

293000052

$3.19

41

Flat Washer 6 mm

234062410

$0.77

42

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

43

Main Harness | Not Shown

605354653

Unavailable

44

Relais *Relay This part replaces 410113604.

515177672

$46.49

45

HORN - Call your local BRP dealership

515176035

Unavailable

46

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

47

Holder

M5447941

Unavailable

48

Rivet

36005

$2.11

49

Temperature Sensor

515176132

$339.99

50

Heater Element

515176256

Unavailable

51

Male Terminal Housing, 2 Circuits

515175654

$9.12

52

Male Terminal

515175232

$1.58

53

Heating Element Bracket

512059809

Unavailable

54

Harness Ass'y

605153859

Unavailable

55

Pressure Sensor

270600040

$199.99

56

Screw Plastofast Mp 6 X 16 Pz

293700048

$2.11

57

Clip

270000141

$11.49

58

Rivet

36005

$2.11

59

Screw

M40322

Unavailable
