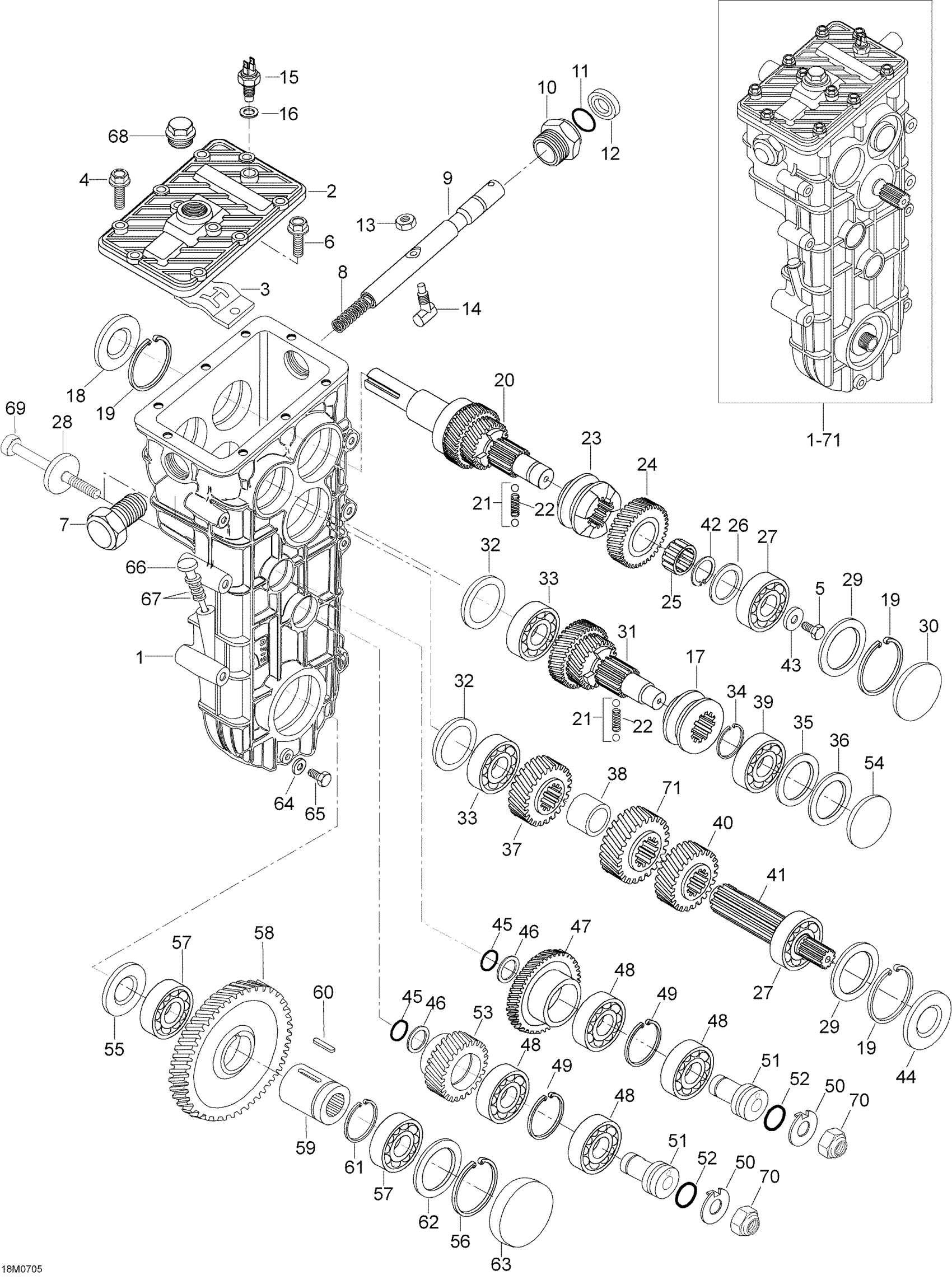

Ski-Doo Expedition TUV 600 H.O. SDI, 2007 05- Transmission Diagram

#

Description
Price

—

TRANSMISSION ASS'Y - Call your local BRP dealership

605612002

Unavailable

1

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

Unavailable

2

COVER - Call your local BRP dealership

M875156043

Unavailable

3

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

4

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

5

Hex. Screw M8 X 20

207182044

$0.74

6

Hex. Screw

M40337

Unavailable

7

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

Unavailable

8

Spring This part replaces M875156078.

875156078

$109.99

9

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

10

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

11

O-ring This part replaces M614601523.

614601523

$11.60

12

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

13

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

14

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

15

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

Unavailable

16

Shim

M617391218

Unavailable

17

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

18

Oil seal This part replaces M614103562.

614103562

$52.99

19

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

$12.99

20

COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.

875156063

Unavailable

21

Ball This part replaces M616810064.

616810064

$26.99

22

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

Unavailable

23

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

24

Sprocket 29 Th

M875156135

Unavailable

25

Needle bearing This part replaces M611002529.

611002529

$27.49

26

WASHER-AXIAL - Call your local BRP dealership

M616092542

Unavailable

27

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

28

Washer

M619230002

Unavailable

29

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

29

Shim 0.5 mm - Call your local BRP dealership This part replaces M617395067.

617395067

Unavailable

30

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

31

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

Unavailable

32

Plug This part replaces M875152953.

875152953

$42.99

33

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

34

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

$12.49

35

Shim

M617394252

Unavailable

35

Shim 0.5 mm - Call your local BRP dealership This part replaces M617394352.

617394352

$15.49

36

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$8.11

37

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

Unavailable

38

SLEEVE - Call your local BRP dealership

M875156088

Unavailable

39

Bearing - Call your local BRP dealership This part replaces M6304.

6304

$41.99

40

Sprocket 27 Th

M875156136

Unavailable

41

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

Unavailable

42

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

Unavailable

43

WASHER - Call your local BRP dealership

M875156112

Unavailable

44

Oil seal This part replaces M614102562.

614102562

$51.99

45

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

46

Washer - Call your local BRP dealership This part replaces M875156328.

875156328

Unavailable

47

Sprocket 28Th

M875156206

Unavailable

48

BEARING - Call your local BRP dealership This part replaces M612030303.

612030303

Unavailable

49

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

Unavailable

50

Washer - Call your local BRP dealership This part replaces M875156327.

875156327

Unavailable

51

Shaft

M619230001

Unavailable

52

O-ring This part replaces M614602431.

614602431

$11.60

53

Sprocket 31 Th

M875156156

Unavailable

54

Plug This part replaces M614100052.

614100052

$28.49

55

Oil seal This part replaces M614102852.

614102852

$25.99

56

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

Unavailable

57

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

58

Sprocket 53 Th

M875156114

Unavailable

59

SHAFT - Call your local BRP dealership

M875156218

Unavailable

60

KEY - Call your local BRP dealership

M603345080

Unavailable

61

CIRCLIP - Call your local BRP dealership

M617300040

Unavailable

62

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

Unavailable

63

Plug - Call your local BRP dealership This part replaces M614100068.

614100068

Unavailable

64

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

65

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

66

DIPSTICK - Call your local BRP dealership This part replaces M875156278.

875156278

Unavailable

67

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

Unavailable

68

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

69

Vis M8X75 *Screw M8X75

M529801502

Unavailable

70

NUT M10 - Call your local BRP dealership This part replaces M510600802.

510600802

Unavailable

71

Sprocket 29Th

M875156151

Unavailable
