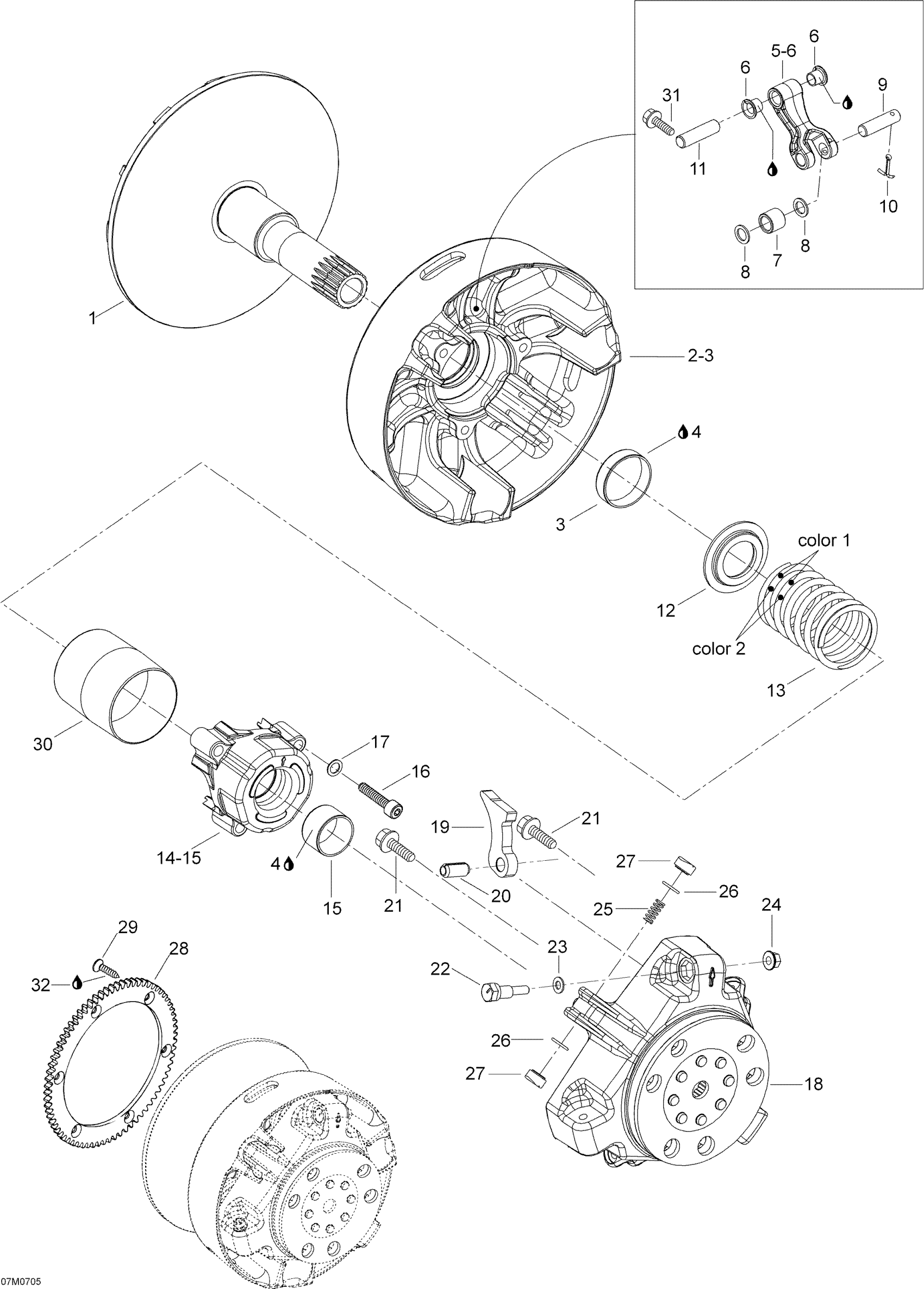

Ski-Doo Expedition TUV 600 H.O. SDI, 2007 05- Drive Pulley Diagram

#

Description
Price

1

FIXE FLANGE - Call your local BRP dealership

417222777

$419.99

2

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

3

Bushing

417222758

$22.49

4

Loctite 609, 10 ml

413703100

$26.99

5

Lever | Includes 10f to 10g

417222671

$49.99

6

Bushing

417004305

$11.52

7

Roller

417222947

$21.99

8

Stopper Washer

417004302

$15.90

9

Pin

417004308

$13.99

9

Pin

417222594

$14.99

10

Cotter Pin

250400060

$2.00

11

Lever Axle

417223164

$4.49

12

Spring Seat

417222312

$9.59

13

SPRING YELLOW/GREEN - Call your local BRP dealership

414742100

Unavailable

13

Tra Spring

414993000

$56.99

14

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

15

Bushing

417009204

$17.49

16

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

17

Lock Washer 8 mm

250200009

$2.11

18

Governor Cup

417222213

Unavailable

19

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

19

Ramp 600

417222444

$36.99

20

Spring Pin M10 X 22

250400050

$2.99

21

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

22

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

23

Washer

417005600

$4.09

24

Hex. Flange Nut M6

233061414

$1.68

25

Spring

417005700

$4.76

26

O-Ring

732401030

$0.98

27

Slider Shoe This part replaces 420460045.

417223021

$5.90

28

RING GEAR - Call your local BRP dealership

417223043

Unavailable

29

HEX. TORX SCREW M8 X 14.5 - Call your local BRP dealership

250000049

Unavailable

30

Guard

417009205

$21.99

31

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

32

Loctite 271, 10 ml

293800005

$26.99
