Description

Price

1

Crankshaft Ass'y | Includes 1 to 10

420890950

Unavailable

1

Crankshaft Ass'y | Includes 1 to 8

420890953

$1.00

2

Ball Bearing Sealed, 6207

420832673

$101.49

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420931795

$17.63

5

Ball Bearing | With drive pin

420832602

$104.99

6

Washer

420926190

$11.63

7

Ball Bearing | With drive pin

420832702

$89.99

8

Oil Seal | Included in gasket kit

420931284

$23.49

9

Hex. Nut, M22 X 1.5

420842239

$17.53

10

Lock Washer, 22 mm

420945759

$1.90

11

Woodruff Key

420246015

$3.17

12

Needle Bearing

420832445

$27.49

13

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

420892388

$228.99

14

Semi-Trapez Ring

420815295

$63.99

15

Piston Pin

420916412

$30.99

16

Piston Circlip

420845106

$3.93

17

Ball Bearing 6207 | With drive pin

420832575

$52.99

18

Oil Seal

420931455

$35.99

19

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

KIT-ROD REPAIR MAG-SIDE - Call your local BRP dealership This part replaces 420684653.

420684080

Unavailable

22

KIT-ROD REPAIR PTO-SIDE - Call your local BRP dealership This part replaces 420684654.

420684081

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$45.99

26

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

27

Petamo Grease, GHY133N, 400 g

420899271

$67.99

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

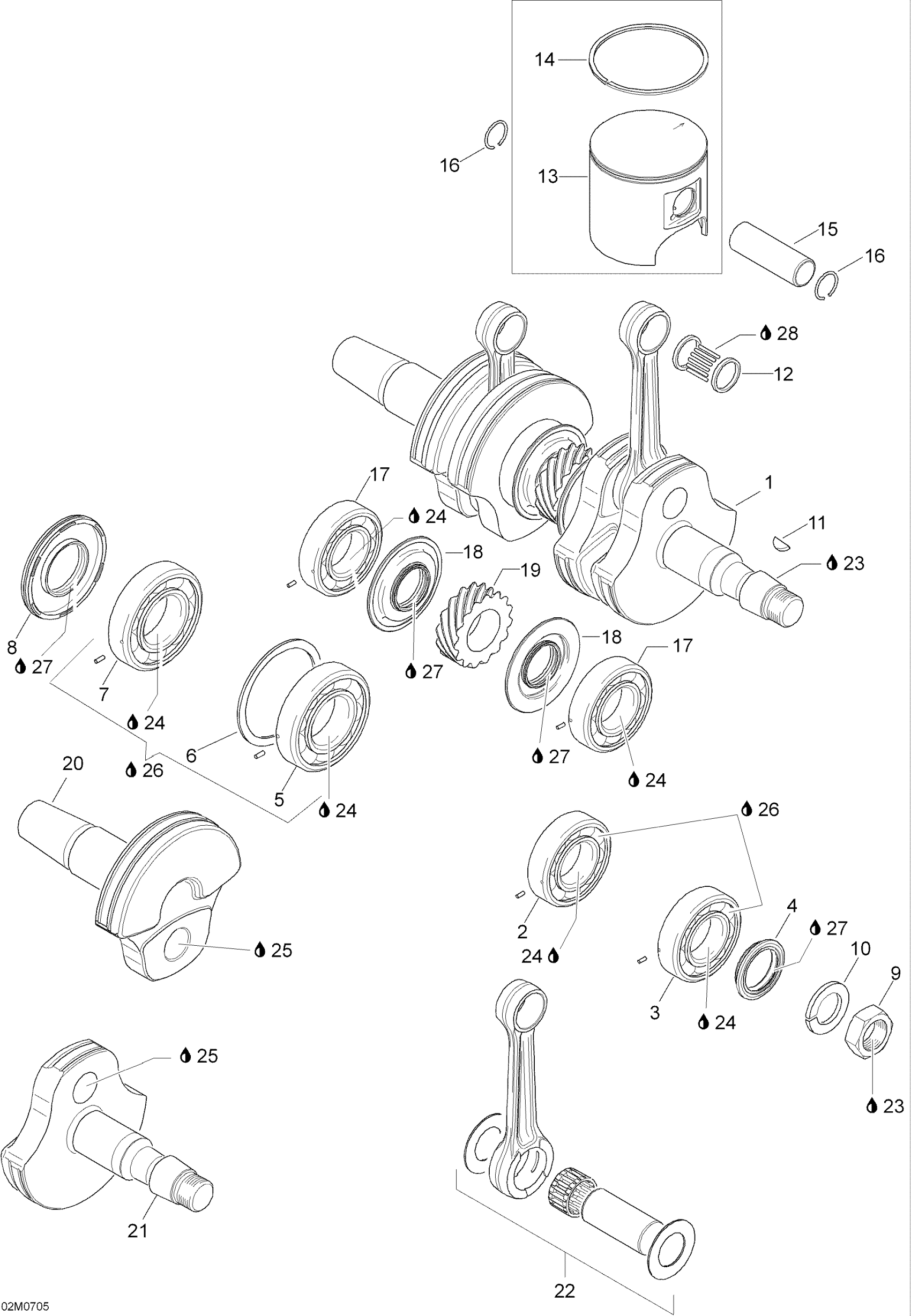

Ski-Doo Expedition TUV 600 H.O. SDI, 2007 01- Crankshaft And Pistons Diagram

Crankshaft Ass'y | Includes 1 to 10

Crankshaft Ass'y | Includes 1 to 8

Ball Bearing Sealed, 6207

Ball Bearing 6207 | With drive pin

Oil Seal

Ball Bearing | With drive pin

Washer

Ball Bearing | With drive pin

Oil Seal | Included in gasket kit

Hex. Nut, M22 X 1.5

Lock Washer, 22 mm

Woodruff Key

Needle Bearing

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

Semi-Trapez Ring

Piston Pin

Piston Circlip

Ball Bearing 6207 | With drive pin

Oil Seal

CENTRAL GEAR - Call your local BRP dealership

Not Available As Spare Parts

Not Available As Spare Parts

KIT-ROD REPAIR MAG-SIDE - Call your local BRP dealership This part replaces 420684653.

KIT-ROD REPAIR PTO-SIDE - Call your local BRP dealership This part replaces 420684654.

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Sealant Loctite 648

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

Petamo Grease, GHY133N, 400 g

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
