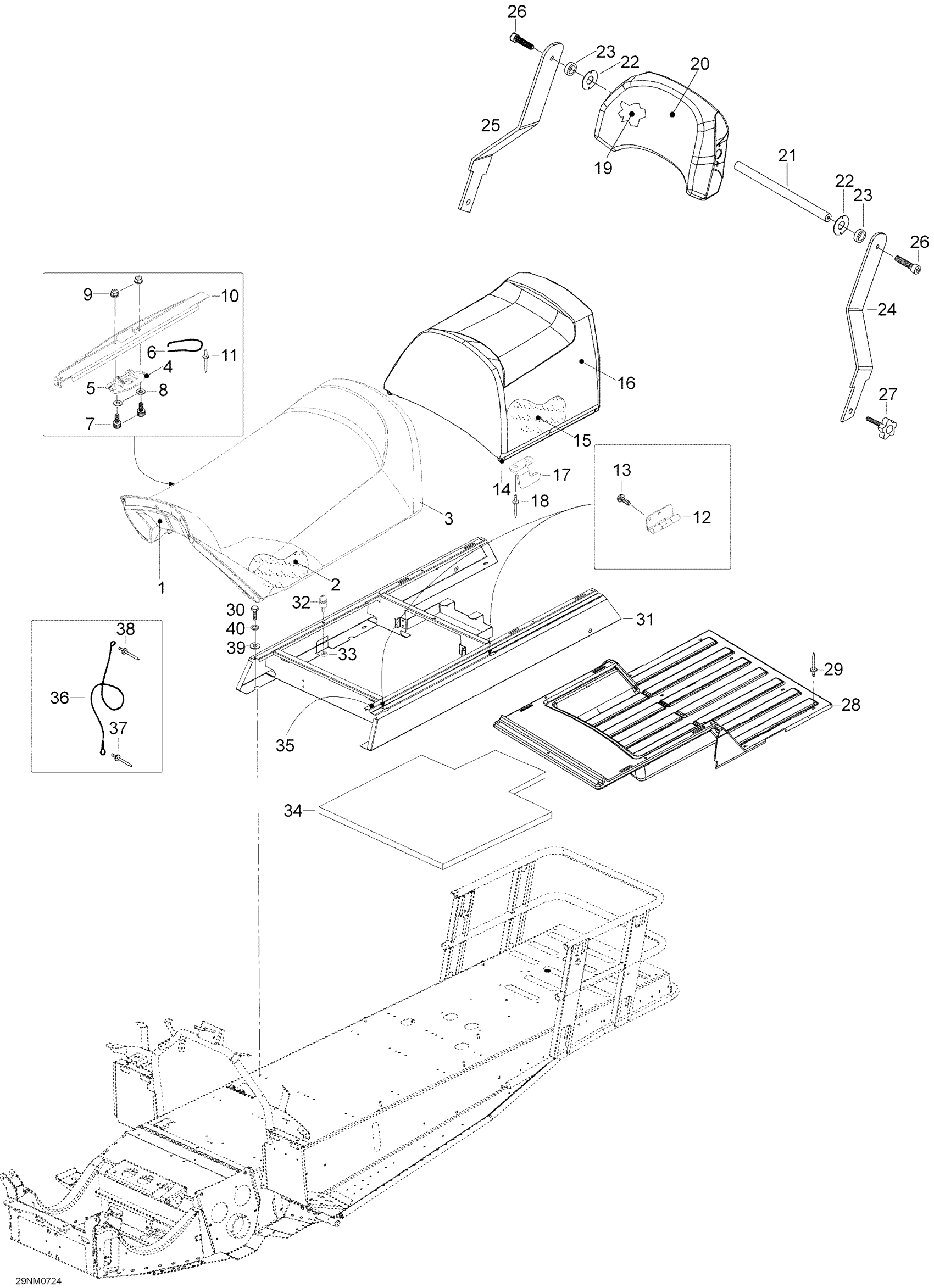

Ski-Doo Expedition TUV 1300 (Europe) , 2007 09- Seat Diagram

#

Description
Price

1

SEAT BASE, FRONT - Call your local BRP dealership

605251388

Unavailable

2

Seat Foam

605255689

$449.99

3

SEAT FRONT COVER, SUV - Call your local BRP dealership

605255216

Unavailable

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

M40276

Unavailable

8

Flat Washer 6 mm

234061410

$1.36

9

Elastic Stop Nut M6

232561414

$0.55

10

SUPPORT PLATE - Call your local BRP dealership

605352483

Unavailable

11

Rivet

M36088

Unavailable

12

Hinge

605351798

$42.99

13

Screw 4,2 X 16

M40890

Unavailable

14

SEAT BASE, REAR - Call your local BRP dealership

605251390

Unavailable

15

REAR SEAT FOAM - Call your local BRP dealership

605255691

Unavailable

16

SEAT FRONT COVER, SUV - Call your local BRP dealership

605255216

Unavailable

17

LH HOOK - Call your local BRP dealership

605351808

Unavailable

17

RH HOOK - Call your local BRP dealership

605352007

Unavailable

18

Rivet This part replaces M36087.

36087

$1.04

19

Foam

605353807

Unavailable

20

COVER - Call your local BRP dealership

605353881

Unavailable

21

Upper Backrest Axle

510004377

$44.99

22

Washer

510004379

$10.01

23

Rubber Shim

510004378

$10.99

24

LH SIDE SUPPORT - Call your local BRP dealership

605354649

Unavailable

25

RH SIDE SUPPORT - Call your local BRP dealership

605354650

Unavailable

26

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

27

Handle M8 X 35 | Model-T3

510003533

$44.49

28

COVER - Call your local BRP dealership

605151397

Unavailable

29

Black, Rivet

M36036

$1.69

30

Hex. Screw M6 X 16

207161644

$0.74

31

SEAT BASE - Call your local BRP dealership

605254706

Unavailable

32

LOCK PIN - Call your local BRP dealership

605452035

$24.99

33

Elastic Stop Nut M6

232561414

$0.55

34

FOAM - Call your local BRP dealership

605352460

Unavailable

35

Sealing Strip

M28413

Unavailable

36

Seat Retainer Cable

293750070

$12.99

37

Black Rivet

36037

$1.48

38

Rivet

M36489

Unavailable

39

Flat Washer 6 mm

234062410

$0.77

40

Lock Washer M6, Black

234161471

$0.53
