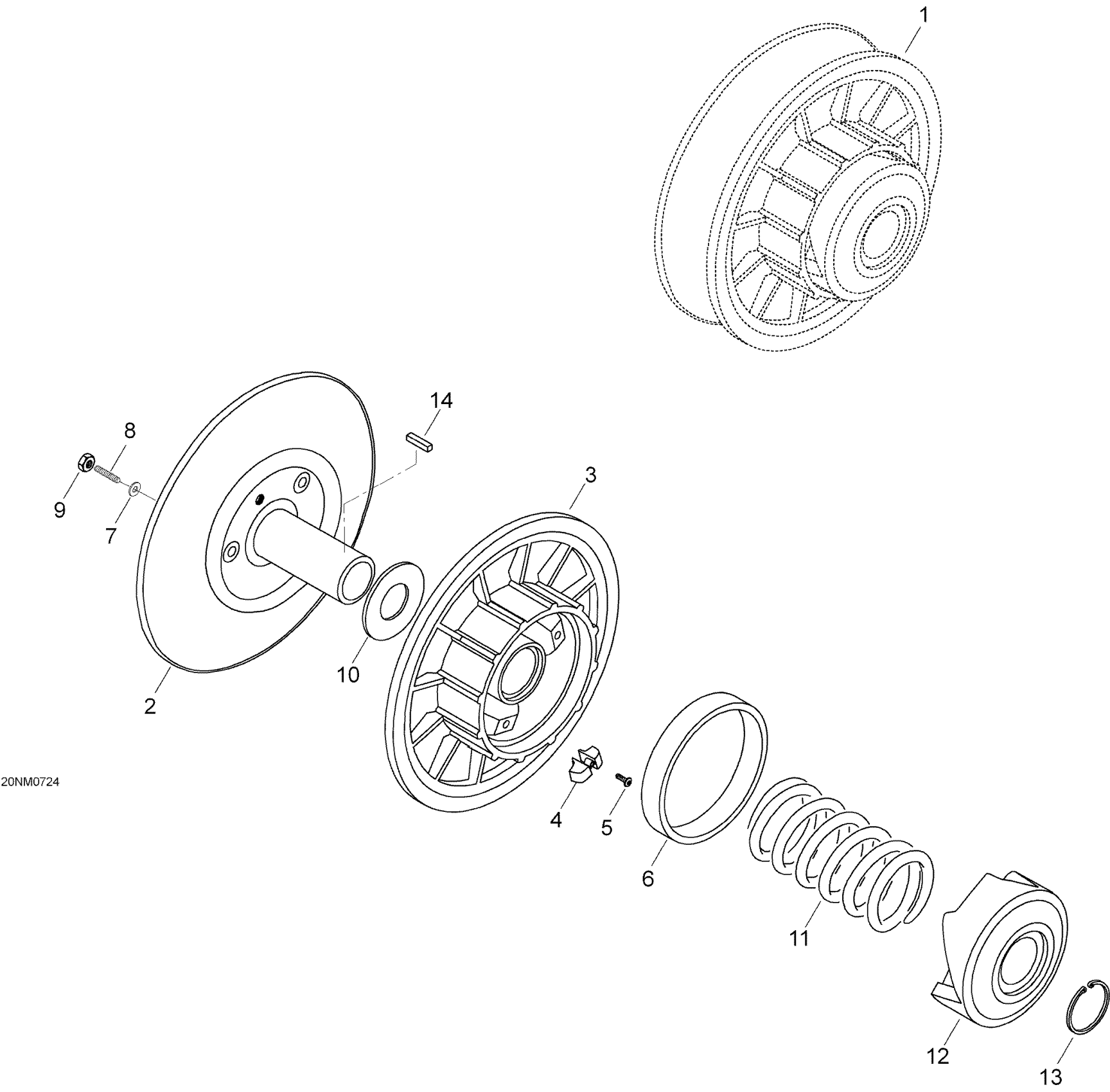

Ski-Doo Expedition TUV 1300 (Europe) , 2007 Driven Pulley Diagram

#

Description

Price

—

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXED FLANGE - Call your local BRP dealership

M140065

Unavailable

3

Sliding Flange

M140066

Unavailable

4

Cam Slide Shoe This part replaces M140068.

140068

$12.64

5

Not Available As Spare Part - Friction Washer

Unavailable

6

BUSHING - Call your local BRP dealership

417126308

Unavailable

7

WASHER - Call your local BRP dealership

420245370

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Hex. Nut M6

232061414

$0.53

10

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

11

RELEASE SPRING - Call your local BRP dealership

M140056

Unavailable

12

CAM 35/30 DEGR. - Call your local BRP dealership

M140070

Unavailable

13

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

14

KEY - Call your local BRP dealership

417119400

Unavailable
